Available now : used Hankook DYNATURN-20 CNC Heavy Duty Lathe 8 Meters Chuck 2200mm – Year 2008 made in South of Korea

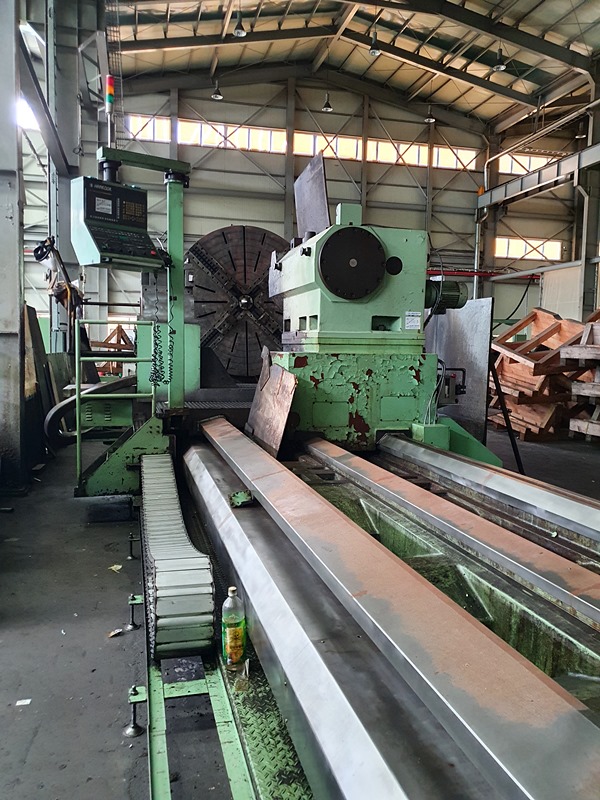

Hankook DYNATURN-20 CNC Heavy Duty Lathe 8 Meters Chuck 2200mm – Year 2008

Machine Overview
Manufacturer: Hankook Machine Tools Model: DYNATURN-20 (2600 × 8000) Year of Manufacture: 2008 Machine Type: Heavy Duty CNC Flat Bed Lathe Country of Origin: South Korea Control System: Fanuc 32iA CNC
Technical Specifications
Specification	Metric	Imperial	Description
Maximum Swing Over Bed	2,600 mm	102.4 in	Maximum swing over bedways.
Maximum Swing Over Carriage	2,200 mm	86.6 in	Maximum swing over carriage.
Maximum Turning Diameter	2,600 mm	102.4 in	Maximum turning diameter.
Distance Between Centers	8,000 mm	314.96 in	Maximum machining length.

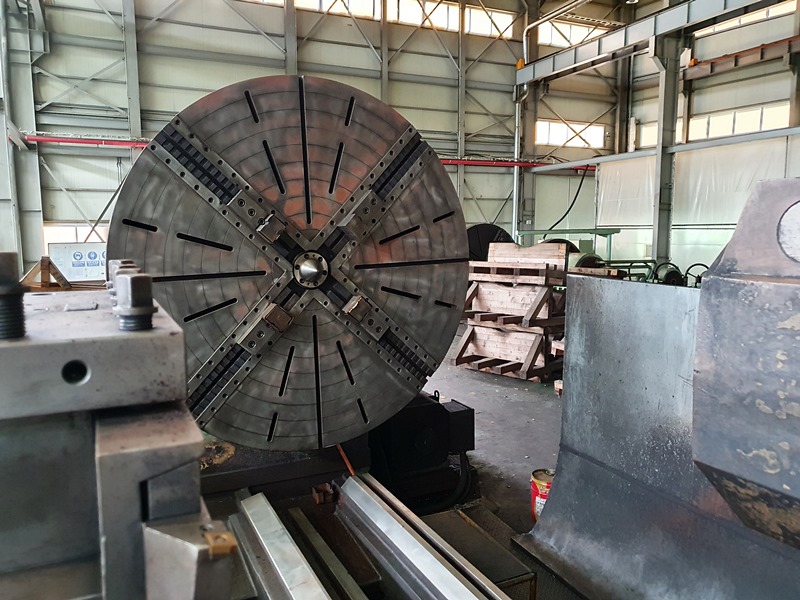

Chuck Size	2,200 mm (4-Jaw Independent)	86.6 in	Heavy-duty manual independent chuck.
X-Axis Travel	1,350 mm	53.15 in	Cross slide travel.
Z-Axis Travel	8,000 mm	314.96 in	Longitudinal travel.
Spindle Speed	0.5 – 250 RPM	0.5 – 250 RPM	Four-range geared spindle.
Spindle Nose	A2-15	A2-15	Heavy-duty spindle nose.
Spindle Bore	104 mm	4.09 in	Large spindle through-hole.
Main Motor Power	94 kW	126 HP	Main spindle drive motor.
Turret Type	H4 Four-Position	4-Position	Heavy-duty automatic turret.
Bed Width	1,560 mm	61.42 in	Extra-wide hardened bed.
Tailstock Quill Diameter	400 mm	15.75 in	Built-in rotating tailstock quill.
Tailstock Quill Travel	300 mm	11.81 in	Tailstock sleeve travel.
Weight Capacity Between Centers	24,948 kg	55,000 lbs	Maximum supported workpiece weight.
Machine Footprint	12,243 × 3,632 mm	482.0 × 143.0 in	Approximate installation space.
Control System
CNC Control	Fanuc 32iA		Advanced heavy-duty CNC control for large workpieces.
Standard Equipment
Fanuc 32iA CNC Control 2,200 mm Heavy-Duty 4-Jaw Independent Manual Chuck H4 Automatic 4-Position Turret A2-15 Heavy-Duty Spindle 104 mm Spindle Bore 94 kW Main Spindle Motor Built-in Rotating Tailstock Hydraulic Tailstock Support Automatic Lubrication System Induction Hardened & Precision Ground Bedways Heavy One-Piece Cast Iron Bed
Machine Features
Designed for machining extremely large shafts, rollers, pressure vessels and heavy industrial components. Heavy-duty one-piece cast bed with reinforced rib construction for maximum rigidity. Induction hardened and precision-ground guideways for long service life. Four-range geared spindle delivers exceptionally high torque at low RPM. 400 mm rotating tailstock spindle capable of supporting very heavy workpieces. Automatic lubrication system minimizes wear and ensures stable machining. Suitable for wind energy, mining, shipbuilding, steel mills, power generation and oil & gas industries.
