For Sale : used Leistritz LWN 300 PM PowerMill Turn-Mill Center Milling & Hobbing for Production of Oil Rotors – Year 2011 made in Germany

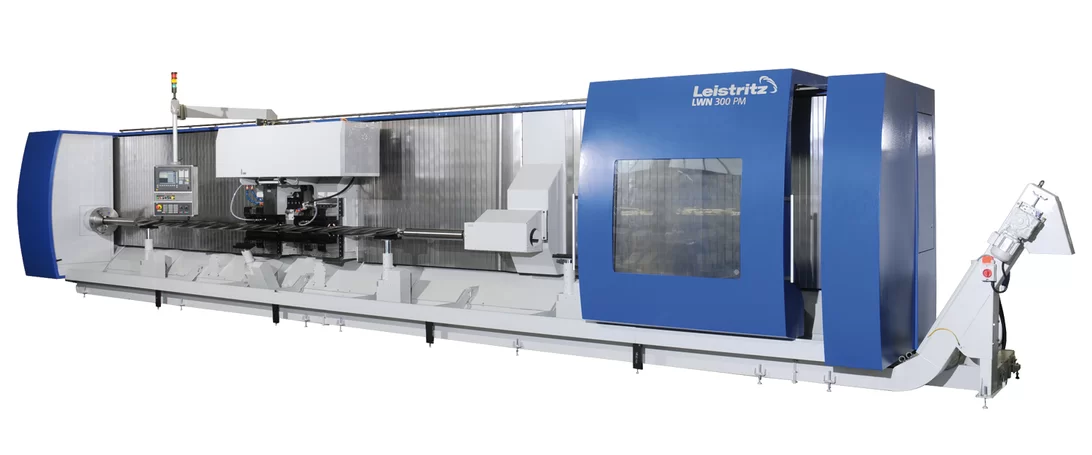

Leistritz LWN 300 PM PowerMill Turn-Mill Center for Rotor Milling & Hobbing – Year 2011

Machine Overview
Manufacturer: Leistritz Model: LWN 300 PM PowerMill Year of Manufacture: 2011 Machine Type: CNC Turn-Mill Center for Rotor Milling & Hobbing Application: Production of Oil & Gas Rotors, Progressive Cavity Pump Rotors and Precision Helical Components Condition: Fully Functional
Technical Specifications
Specification	Metric	Imperial	Description
Workpiece Diameter	25 – 220 mm	0.98 – 8.66 in	Machining diameter range.
Maximum Workpiece Length	8,000 mm	314.96 in (26.25 ft)	Maximum machining length.
Main Drive Power	22 kW	29.5 HP	Main spindle drive motor.
Machine Dimensions (L × W × H)	12,650 × 2,640 × 2,900 mm	498.03 × 103.94 × 114.17 in	Overall machine dimensions.
Machine Weight	45,000 kg	99,208 lbs	Approximate machine weight.
Milling Spindle Diameter	Ø 50 mm	Ø 1.97 in	Arbor-mounted milling spindle with outboard support.
Machining Capabilities
Processes	Rotor Milling & Hobbing		Performs both operations on a single machine.
Machining Type	CNC Turn-Mill		Complete rotor machining with automatic CNC control.
Suitable Industries	Oil & Gas / Pump Manufacturing		Designed for precision rotor production from difficult-to-machine materials.
Standard Equipment & Features
Integrated Milling and Hobbing Functions Planing Function Included Ø50 mm Arbor-Mounted Milling Spindle Counter Bearing for Maximum Rigidity Continuous Diagonal Hob Shift CNC-Controlled Machine Axes Automatic Steady Rest Height Positioning Long Rotor Machining Capability High Surface Finish Quality High Profile Accuracy
Machine Advantages
Milling and hobbing operations performed on one machine, eliminating secondary setups. Fully unattended machining of a complete rotor is possible. Capable of machining extremely long workpieces up to 8 meters. Easy conversion of existing machining programs to the LWN 300 PM coordinate system. All machine axes are CNC controlled for maximum precision. Automatic calculation and positioning of steady rests during machining. High-rigidity spindle with outboard support ensures excellent surface finish and long tool life. Continuous diagonal hob shift utilizes the entire hob face, distributing wear evenly. Complete rotor hobbing without frequent interruptions for insert changes or measurements. Designed specifically for high-precision machining of oil & gas rotors and other difficult-to-machine helical components.
Typical Applications
Oil & Gas Rotor Manufacturing Progressive Cavity Pump Rotors Twin Screw Pump Components Helical Rotor Production High-Precision Screw Elements Energy Industry Components Special Profile Milling & Hobbing
