For Sale : used MAZAK INTEGREX e-800H 8000U CNC MultiTasking Turning Milling Center 8 Meters – Year 2023 made in Japan / REQUEST MACHINE INSPECTION

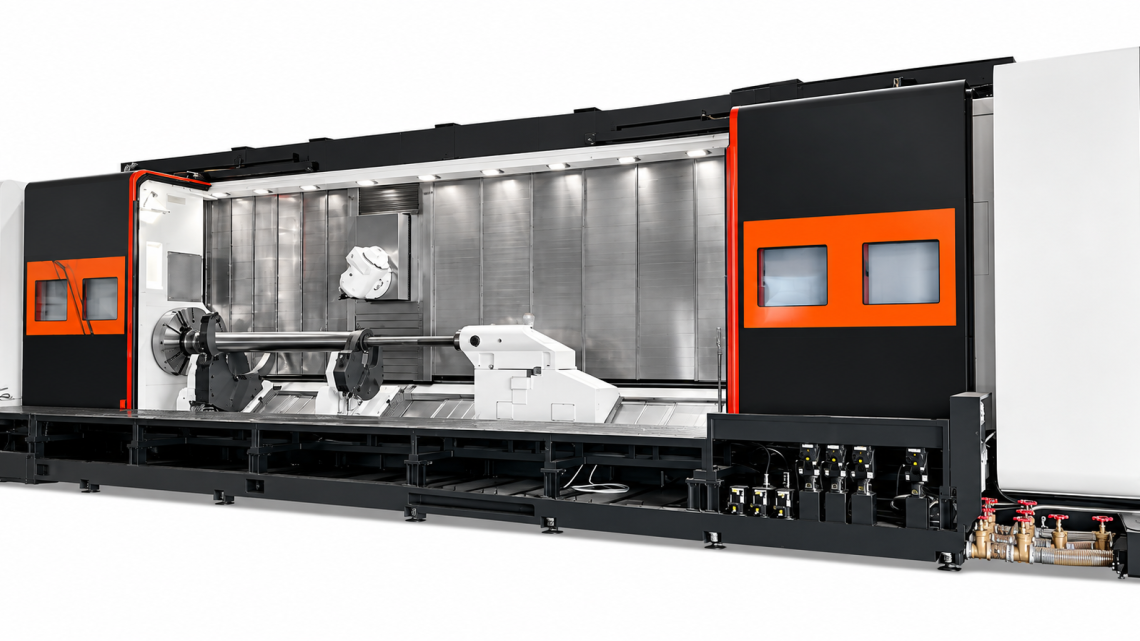

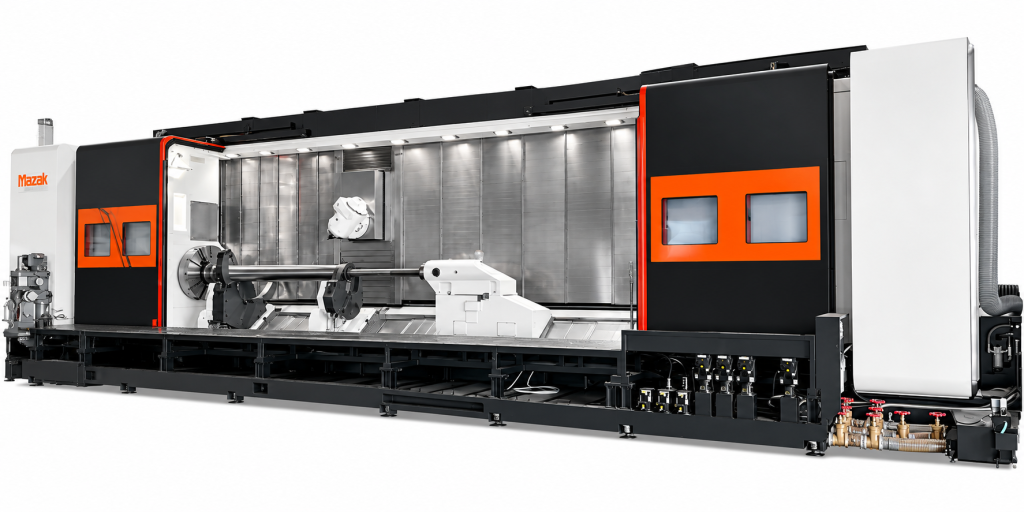

MAZAK INTEGREX e-800H 8000U CNC MultiTasking Turning Milling Center – Year 2023
| Specification | Metric | Imperial |
|---|---|---|
| General Information | ||
| Manufacturer | Yamazaki Mazak | Yamazaki Mazak |
| Model | INTEGREX e-800H 8000U | INTEGREX e-800H 8000U |
| Machine Type | 5-Axis CNC Turning-Milling Center / Multi-Tasking Machine | 5-Axis CNC Turning-Milling Center / Multi-Tasking Machine |
| Year of Construction | 2023 | 2023 |
| Condition | Like New (Used) | Like New (Used) |
| Functionality | Fully Functional | Fully Functional |
| Operating Hours | contact to us | contact to us |
| Previous Applications | Mainly machining of long shafts and shaft-type workpieces | |
| Workpiece Capacity & Working Area | ||
| Max. Workpiece Size | Ø 1,300 × 8,000 mm | Ø 51.18″ × 314.96″ |
| Max. Swing Diameter | Ø 1,300 mm | Ø 51.18″ |
| Max. Machining Diameter | Ø 1,300 mm | Ø 51.18″ |
| Max. Supported Workpiece Weight | 15,000 kg including clamping devices | 33,069 lb including clamping devices |
| Axis Travels | ||
| X-Axis Travel | 1,300 mm | 51.18″ |
| Y-Axis Travel | 800 mm | 31.50″ |
| Z-Axis Travel | 8,380 mm | 329.92″ |
| W-Axis / Tailstock Travel | 6,870 mm | 270.47″ |
| B-Axis Range | -30° to +210° (240° total) | -30° to +210° (240° total) |
| C-Axis | 360° | 360° |
| Main Turning Spindle | ||
| Chuck Range | 610–1,270 mm | 24″–50″ |
| Max. Spindle Speed | 700 rpm | 700 rpm |
| Spindle Nose | A2-20 | A2-20 |
| Spindle Bore | Ø 275 mm | Ø 10.83″ |
| Spindle Bearing Inner Diameter | Ø 355.6 mm | Ø 14.00″ |
| C-Axis Resolution | 0.0001° | 0.0001° |
| Spindle Motor Power | 45 kW | 60.3 hp |
| Milling / B-Axis Spindle | ||
| Milling Spindle Configuration | Single Spindle Turret with Automatic Tool Changer | |
| Max. Milling Spindle Speed | 10,000 rpm | 10,000 rpm |
| Milling Spindle Motor Power | 37 kW | 49.6 hp |
| B-Axis | 240° | 240° |
| Tool Holder | ISO / CAT No. 50 | ISO / CAT No. 50 |
| Automatic Tool Changer | ||
| Tool Magazine | 40 tools | 40 tools |
| Max. Tool Diameter | Ø 135 mm | Ø 5.31″ |
| Max. Tool Diameter – Free Adjacent Positions | Ø 260 mm | Ø 10.24″ |
| Max. Tool Length | 650 mm | 25.59″ |
| Max. Tool Weight | 30 kg | 66.14 lb |
| Tool Change Time (Tool-to-Tool) | Approx. 1.8 sec | Approx. 1.8 sec |
| Feed Rates | ||
| Rapid Traverse X-Axis | 18 m/min | 708.66 in/min |
| Rapid Traverse Y-Axis | 18 m/min | 708.66 in/min |
| Rapid Traverse Z-Axis | 18 m/min | 708.66 in/min |
| Rapid Traverse B-Axis | 30 rpm | 30 rpm |
| Rapid Traverse C-Axis | 12.5 rpm | 12.5 rpm |
| W-Axis Feed Rate | Approx. 2–6 m/min | Approx. 78.74–236.22 in/min |
| Tailstock / Long Shaft Machining | ||
| Tailstock Taper | Metric Center No. 100 | Metric Center No. 100 |
| Max. Tailstock Force | 75 kN | 16,861 lbf |
| W-Axis Travel | 6,870 mm | 270.47″ |
| Steady Rests | 2 | 2 |
| Optional Long Boring Bar System | Up to approx. 1,500 mm tool length | Up to approx. 59.06″ tool length |
| Dimensions & Weight | ||
| Approx. Footprint | 16,000 × 6,000 mm | 629.92″ × 236.22″ (52.49 × 19.69 ft) |
| Approx. Machine Height | 4,650 mm | 183.07″ (15.26 ft) |
| Approx. Machine Weight | 96,500 kg (96.5 metric tons) | 212,746 lb (106.4 US tons) |
| Coolant Tank Capacity | Approx. 2,400 liters | Approx. 634 US gal |
| Electrical Connection | Approx. 131.4 kVA | Approx. 131.4 kVA |
| Key Features | ||
| Machining Capability | 5-Axis Simultaneous Turning and Milling | |
| Workpiece Capacity | Ø 1,300 × 8,000 mm | Ø 51.18″ × 314.96″ |
| Maximum Workpiece Weight | 15,000 kg | 33,069 lb |
| Long Shaft Configuration | 8000U version with 2 steady rests | |
