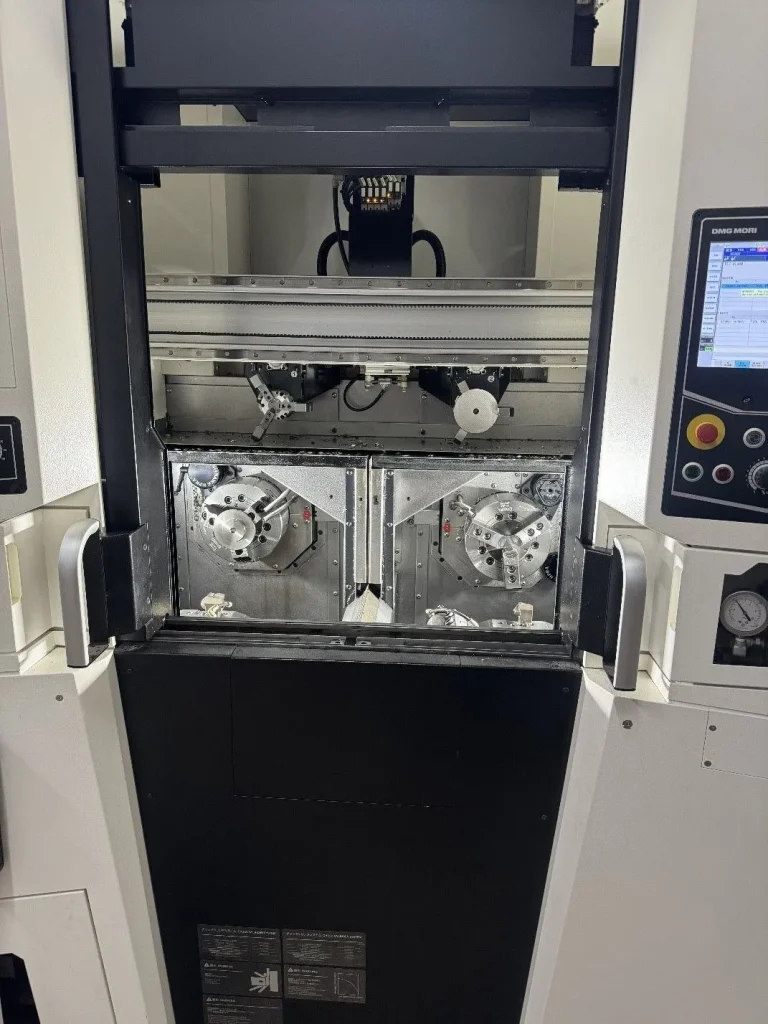

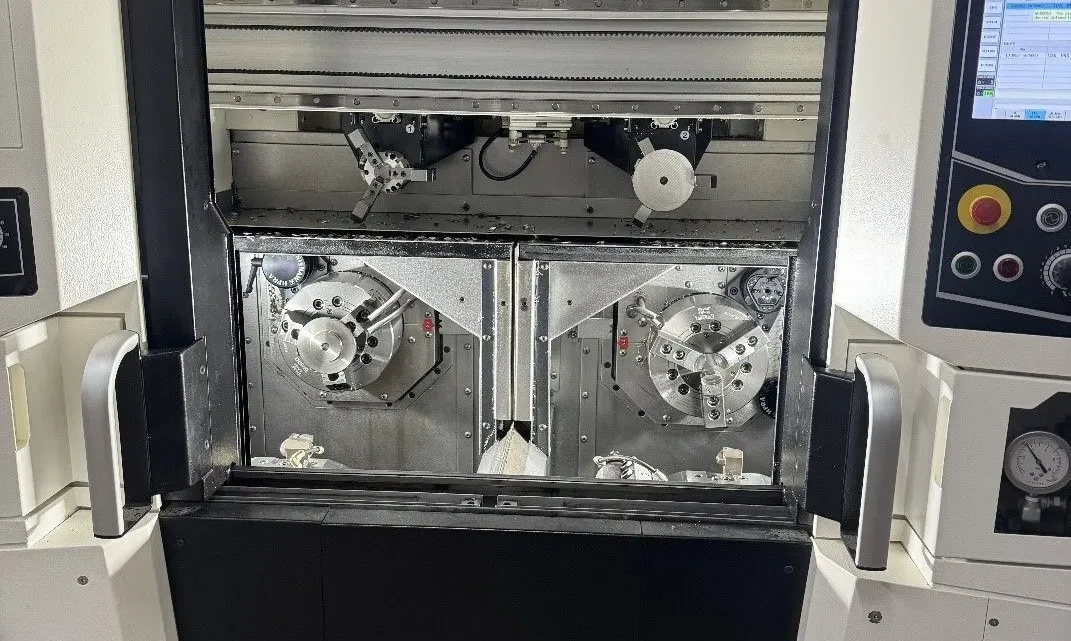

For Sale : used DMG Mori NRX-2000 CNC Front Parallel Dual-Spindle Dual-Turret Turning Center – Year 2020 / REQUEST MACHINE INSPECTION
| DMG Mori NRX-2000 CNC Front Parallel Dual-Spindle Dual-Turret Turning Center – Year 2020 | ||
|---|---|---|
| Technical Specification | Metric | Imperial |
| Manufacturer | DMG Mori | |
| Model | NRX-2000 | |
| Machine Type | CNC Front Parallel Dual-Spindle Dual-Turret Turning Center | |
| Year | 2020 | |
| CNC Control | CELOS M730UM (Mitsubishi) | |
| Maximum Workpiece Diameter / Turning Diameter | 180.3 mm | 7.1″ |
| Maximum Workpiece Length / Machining Length | 99.1 mm | 3.9″ |
| Maximum X-Axis Travel | 99.1 mm | 3.9″ |
| Maximum Z-Axis Travel | 221 mm | 8.7″ |
| Distance Between Spindles | 669.8 mm | 26.37″ |
| Chuck Size | 203.2 mm | 8″ |
| Chuck Manufacturer | Kitagawa | |
| Chuck Type | Solid Chuck | |
| Maximum Spindle Speed | 6,000 RPM | |
| Spindle Configuration | Dual High-Output Spindles | |
| Rapid Traverse (X / Y / Z) | 30,000 mm/min | 1,181 IPM |
| Maximum Feed Speed | 30,000 mm/min | 1,181 IPM |
| Power Capacity | 7.46 kW | 10 HP |
| Spindle Nose | A2-5 | |
| C-Axis Resolution | 0.001° | |
| Number of Tools / Turrets | (2) 8-Station Turrets | |
| Machine Weight | Approx. 5,670 kg | 12,500 lbs |
| Equipped With | ||
| CNC Control System | CELOS M730UM CNC Control (Mitsubishi) | |
| Industrial Network Interface | Interface for EtherNet/IP | |
| Spindles | Dual 6,000 RPM High-Output Spindles | |
| Chucks | Dual 203.2 mm Solid Kitagawa Chucks | Dual 8″ Solid Kitagawa Chucks |
| Turrets | Dual 8-Station Turrets | |
| Automation | Gantry Loader | |
| Workpiece Stocker | Left-Side 14-Station Workpiece Stocker | |
| Gantry System | GX03-R Gantry with Left-Side Discharge | |
| Coolant System | High-Pressure Coolant | |
| Chuck Air Blow | Air Blow for Chuck | |
| Tool Presetter | Manual In-Machine Tool Presetter for Both Spindles | |
| Signal Lamp | 4-Color Signal Lamp (Red, Yellow, Green, Blue) | |
| Electrical Protection | Earth Leakage Breaker | |
| External M-Codes | 10 External M-Codes | |
| Chip Conveyor | Right-Discharge Chip Conveyor | |
| Additional Features | Gantry Loader & Stock Table, High-Pressure Coolant | |
| Operating Condition | Very Low Hours | |
