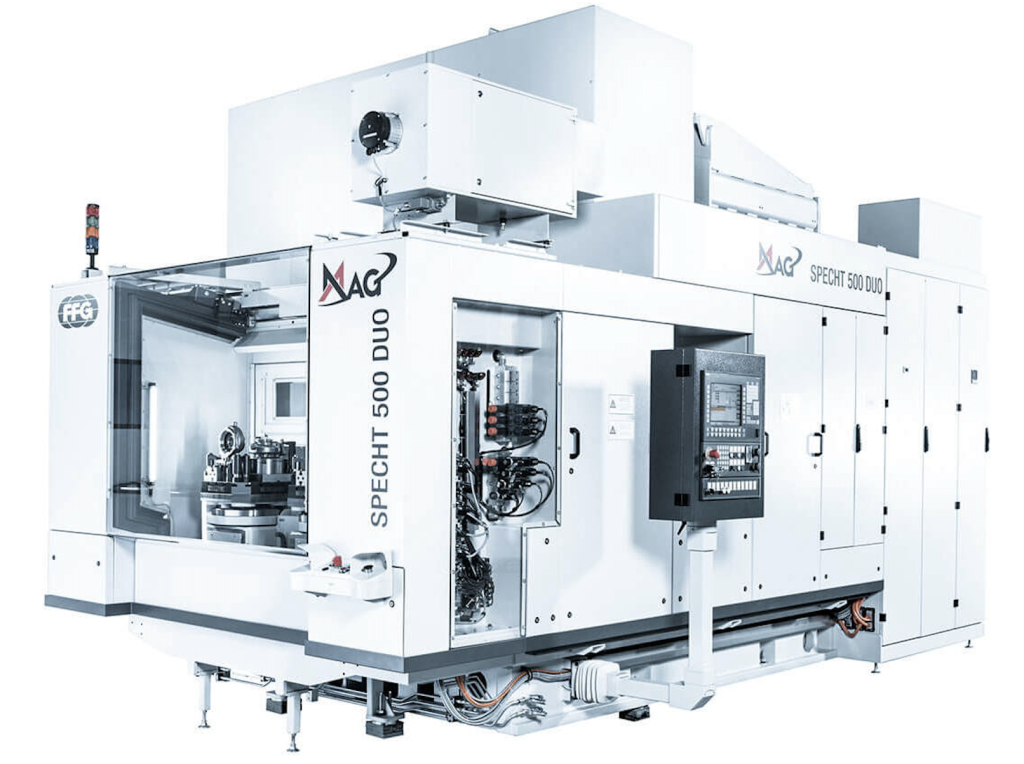

| MACHINE DIMENSIONS & GENERAL DATA |
| Machine Width – Basic Machine |
3,560 mm |
140.16 in |
| Machine Length – Basic Machine |
5,650 mm |
222.44 in |
| Machine Height |
3,650 mm |
143.70 in |
| Complete Machine Weight |
22,000 – 25,000 kg |
48,502 – 55,116 lb |
| Weight Condition |
Without Workpieces, Without Tools, Without Pallet Changer |
| Connected Load – Basic Machine Average |
47 kVA |
| Machine Dimension Condition |
Values specified with doors closed |
| WORKING RANGE |
| X-Axis Travel |
630 mm |
24.80 in |
| Y-Axis Travel |
730 mm |
28.74 in |
| Z-Axis Travel |
860 mm |
33.86 in |
| AXIS SPEED |
| X / Y / Z Axis Speed |
120 m/min |
4724.41 in/min |
| FEED FORCES – S1 |
| X-Axis Feed Force |
7,720 N |
1,735 lbf |
| Y-Axis Feed Force (+Y) |
5,713 N |
1,284 lbf |
| Y-Axis Feed Force (-Y) |
5,713 N |
1,284 lbf |
| Z-Axis Feed Force |
10,440 N |
2,347 lbf |
| PEAK AXIS FORCES |
| X-Axis Peak Force |
20,700 N |
4,654 lbf |
| Y-Axis Peak Force (+Y) |
13,000 N |
2,922 lbf |
| Y-Axis Peak Force (-Y) |
13,000 N |
2,922 lbf |
| Z-Axis Peak Force |
27,600 N |
6,205 lbf |
| ROTARY AXIS RAPID SPEED |
| B-Axis Rapid Speed |
Not Specified |
| A-Axis Rapid Speed |
50 rpm |
| B on A-Axis Rapid Speed |
80 rpm |
| AXIS MEASURING SYSTEM |
| X / Y / Z Axis Measuring Resolution |
0.0001 mm |
0.00000394 in |
| DIRECT MEASURING SYSTEM – ISO 230/2 |
| Positioning Accuracy A |
0.005 mm |
0.000197 in |
| Unidirectional Positioning Repeatability R |
0.004 mm |
0.000157 in |
| B-AXIS / A-AXIS POSITIONING ACCURACY |
| Positioning Accuracy A – Unclamped |
7 arc sec |
| Unidirectional Positioning Repeatability R – Unclamped |
4 arc sec |
| Positioning Accuracy A – Clamped |
10 arc sec |
| Unidirectional Positioning Repeatability R – Clamped |
6 arc sec |
| B / A AXIS WORKING RANGE & PALLET DATA |
| Rotational Speed |
80 rpm |
| Y-Axis Zero Position – Above Table Top |
Not Specified |
| Y-Axis Zero Position – Above Pallet |
160 mm |
6.30 in |
| Z-Axis Zero Position – To Table Center / Pallet Center |
160 mm |
6.30 in |
| Table Load – Pallet Changer Without Pallet |
2 × 290 kg |
2 × 639.3 lb |
| B-Axis Indexing Resolution |
360,000 × 0.001° |
| Table Plate Diameter |
Not Specified |
| Pallet Size |
400 × 400 mm |
15.75 × 15.75 in |
| Maximum Weight Moment at 90° – Rotary Axis + Load |
1,400 Nm |
1,032.6 lb-ft |
| Total Moment of Inertia |
2 × 18 kgm² |
2 × 13.28 lb-ft² |
| Workpiece & Fixture Height – Without Pallet Changer |
Not Specified |
| Workpiece & Fixture Height – With Pallet Changer |
640 mm |
25.20 in |
| Maximum Workpiece & Fixture Interference Circle – Without Pallet Changer |
Not Specified |
| Maximum Workpiece & Fixture Interference Circle – With Pallet Changer |
2 × 700 mm |
2 × 27.56 in |
| MOTOR SPINDLE – HSK 63 |
| Spindle Interface |
HSK-A 63 |
| Drive Power 100% / 40% – MSM-63-50-18 |
31 / 42 kW |
41.6 / 56.3 HP |
| Drive Power 100% / 40% – MSM-63-95-16 |
40 / 52 kW |
53.6 / 69.7 HP |
| Drive Power 100% / 40% – MSM-63-126-10 |
28.1 / 39 kW |
37.7 / 52.3 HP |
| Motor Torque 100% / 40% – MSM-63-50-18 |
50 / 67 Nm |
36.9 / 49.4 lb-ft |
| Motor Torque 100% / 40% – MSM-63-95-16 |
95 / 123 Nm |
70.1 / 90.7 lb-ft |
| Motor Torque 100% / 40% – MSM-63-126-10 |
126 / 180 Nm |
92.9 / 132.8 lb-ft |
| Speed Range – MSM-63-50-18 |
1 – 18,000 rpm |
| Speed Range – MSM-63-95-16 |
1 – 16,000 rpm |
| Speed Range – MSM-63-126-10 |
1 – 10,000 rpm |
| Spindle Speed Control |
Stepless |
| Front Bearing Diameter |
80 mm |
3.15 in |
| Bearing Lubrication |
Lifetime Grease Lubrication |
| Spindle Head Tool Interface for Hollow-Shank Taper Tools |
HSK-A 63 |

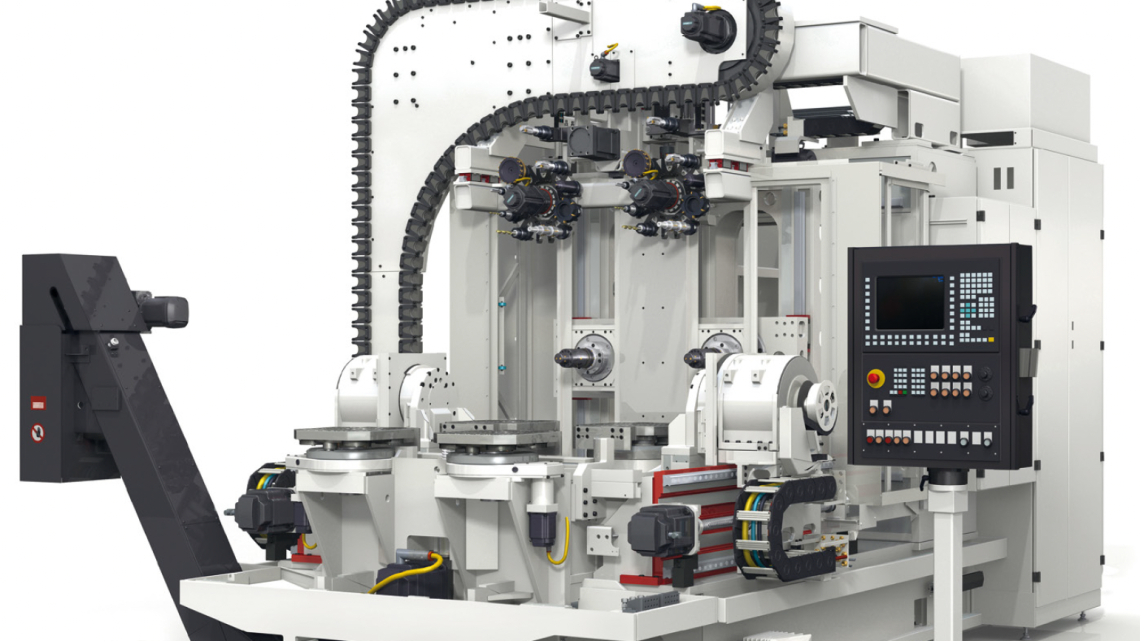

| SPINDLE DISTANCE |
| Spindle Distance – X Direction |
720 mm |
28.35 in |
| TOOL MAGAZINE |
| Magazine Capacity – HSK 63 |
112 Tools = 96 + 8 + 8 |
| Magazine Capacity – HSK 100 |
72 Tools = 60 + 6 + 6 |
| Maximum Tool Length |
550 mm |
21.65 in |
| Maximum Tool Diameter – Fully Loaded, HSK 63 |
75 mm |
2.95 in |
| Maximum Tool Diameter – Fully Loaded, HSK 100 |
115 mm |
4.53 in |
| Maximum Tool Diameter – With Empty Adjacent Positions |
230 mm |
9.06 in |
| Maximum Tool Weight – HSK 63 |
12 kg |
26.46 lb |
| Maximum Tool Weight – HSK 100 |
18 kg |
39.68 lb |
| Maximum Tilting Moment – HSK 63 |
15 Nm |
11.06 lb-ft |
| Maximum Tilting Moment – HSK 100 |
25 Nm |
18.44 lb-ft |
| Total Weight of All Tools in Magazine |
420 kg |
925.9 lb |
| Chip-to-Chip Time – Linear Motor, HSK 63 |
2.8 s |
| Chip-to-Chip Time – Linear Motor, HSK 100 |
3.0 s |
| Chip-to-Chip Time – Ball Screw Drive, HSK 63 |
3.3 s |
| Chip-to-Chip Time – Ball Screw Drive, HSK 100 |
3.5 s |
| Tool Change Time Standard |
According to VDI 2852, tools up to 4 kg |
| CONNECTED LOAD & CONSUMPTION DATA |
| Connection & Consumption Values |
Refer to Machine Nameplate and Technical Documentation |
| CNC CONTROL |
| CNC Control System |
Siemens 840D SL |
