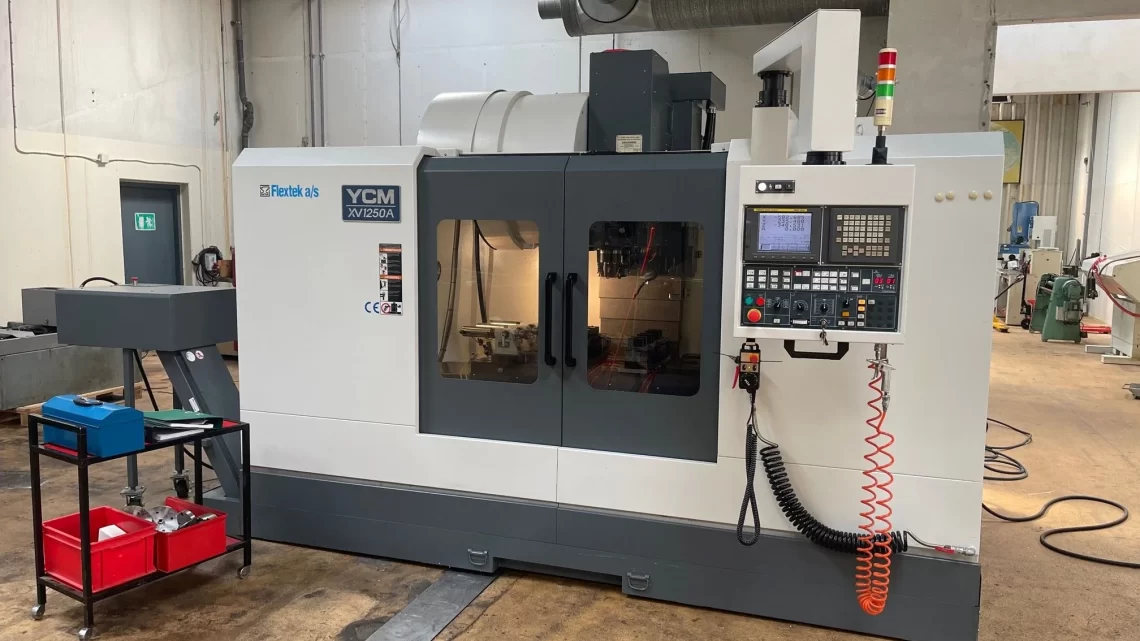

Before You Buy: Essential Criteria for Evaluating a Used, Second-Hand, Pre-Owned, Surplus YCM VMC XV 1250A CNC Vertical Machining Center made in Taiwan
Purchasing a used YCM XV 1250A Vertical Machining Center (VMC) can be a smart investment — but only if you evaluate it carefully. Below are the key technical and operational criteria you should review before finalizing your purchase.
1. Core Technical Specifications
| Specification | Typical Value | Notes |
|---|---|---|
| X-Axis Travel | 1,270 mm (50 in.) | Common configuration |
| Y-Axis Travel | 520 mm (20.5 in.) | |
| Z-Axis Travel | 540 mm (21.3 in.) | |
| Table Size | 1,350 × 520 mm (53.1 × 20.5 in.) | |
| Maximum Table Load | ~1,000 kg (2,200 lbs) | |
| Spindle Speed | 8,000–10,000 RPM (model dependent) | |
| Spindle Motor Power | 15 HP | |
| Tool Changer Capacity | 24 tools | |
| Spindle Taper | CAT 40 (CT-40) | |
| CNC Control | FANUC Series (MXP or 0i-MD) |
Note: Earlier units (2000–2003) typically have 8,000 RPM spindles, while newer versions reach 10,000 RPM.
2. Machine Condition & Operating History
When inspecting the machine, prioritize the following factors:
- Operating Hours – Ideally below 20,000 hours; excessive usage increases bearing and guideway wear.
- Maintenance Records – Confirm replacements or overhauls (spindle bearings, way regrinds, servo drives).
- Availability of Spare Parts – FANUC-based systems are advantageous due to global parts availability.
- Geometric Accuracy & Repeatability – Verify backlash, squareness, and positional accuracy using calibration tools.
- Vibration & Spindle Runout – Conduct a spindle balance and vibration test under load.
- CNC Control Health – Inspect for display, keypad, I/O stability, and backup batteries.
- Documentation – Ensure availability of manuals, wiring diagrams, and maintenance logs.
3. Physical Installation Considerations
Before relocating or installing the machine, check:
- Floor load capacity and leveling condition
- Power supply requirements (voltage, phase, circuit rating)
- Space for chip conveyor and coolant tank
- Environmental factors (temperature, dust, humidity)
- Cooling and lubrication system configuration
4. Operational Features & Options
- 4th Axis Interface – Some XV 1250A units include 4-axis rotary tables; verify full integration with the control.
- Through-Spindle Coolant (TSC) – Increases tool life and machining speed; confirm if equipped.
- Programmable Coolant Nozzle – A useful productivity option.
- Chip Conveyor – Check functionality and direction of discharge.
- Rigid Tapping & Probing – Important for high-precision or repetitive hole operations.
- Spindle Chiller – Present on higher-end models to stabilize thermal expansion.
5. Pricing & Value Estimation
- Typical used-market price (as of 2025): USD 20,000 – 25,000 depending on condition and year (2001–2012 range).
- Add costs for transport, installation, commissioning, and potential retrofitting.
- Evaluate return on investment (ROI) against new Taiwanese or Japanese mid-range VMCs.
6. Pre-Purchase & Legal Checklist
- Live cutting demonstration at seller’s site (under power).
- Inspection report covering spindle vibration, axis accuracy, and coolant pressure.
- Warranty or return conditions (if available).
- Shipping & insurance documentation (Incoterms, packaging).
- Compliance with local safety and electrical standards.
Conclusion
The YCM XV 1250A is widely regarded as a reliable and precise Taiwanese-built vertical machining center with solid cast-iron construction and robust FANUC control.
However, before committing to purchase, ensure that:
- The spindle and axis drives are vibration-free.
- The controller operates without alarms.
- All auxiliary systems (lubrication, coolant, ATC) function smoothly.
With proper inspection and maintenance verification, this model remains one of the best value-for-money 3-axis VMCs in the used-machine market.
