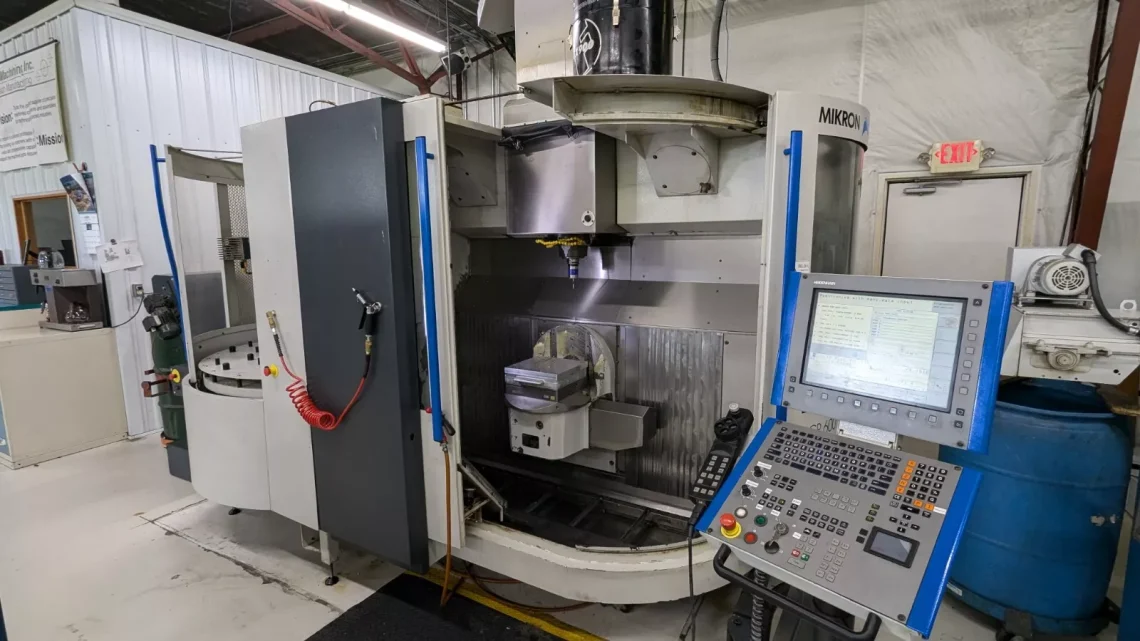

Here’s a professional buyer’s guide for evaluating a pre-owned / surplus / second-hand Mikron UCP 600 Vario CNC 5-Axis Vertical Machining Center (made in Switzerland).

---

1. Baseline Technical Reference

Knowing the typical catalog specs helps you spot seller exaggerations or hidden issues. Common factory values:

Parameter	Typical Value
Travels (X / Y / Z)	600 / 450 / 450 mm
B-axis tilt	–115° / +30°
C-axis rotation	360° continuous
Table diameter	Ø 450 mm
Table load capacity	~ 200 kg
Spindle speed options	12,000 / 20,000 / 42,000 rpm (depending on version)
Tool magazine	30 (HSK-A63) or 36 (HSK-E40)
CNC control	Heidenhain iTNC 530
Machine weight	~ 7,700 kg

These numbers are your benchmark. If a seller claims “60,000 rpm” or “500 kg table load,” you know it’s inaccurate unless there was a major retrofit.

---

2. Documentation & Machine History

• Service & maintenance logs: lubrication, spindle overhauls, alignment checks, software updates.
• Work material history: Was it mostly aluminum, stainless, or hard alloys? Abrasive materials shorten spindle and guide life.
• Operating hours: Main spindle hours, axis motion counts, B/C axis rotation cycles.
• Retrofits or modifications: Has the spindle, drive, or control been upgraded? Who did the work?
• Original manuals & wiring diagrams: Without these, troubleshooting is costly.
• Ownership & environment: Was it in a climate-controlled aerospace shop or a harsh environment?

---

3. Visual / Structural Inspection (Before Powering)

• Base & castings: Look for cracks, weld repairs, or uneven settlement.
• Guideways & linear rails: Inspect for scoring, corrosion, discoloration.
• Ball screws & covers: Check for wear, backlash, and broken way covers.
• Spindle taper & nose: Use a test holder; look for wear, galling, poor seating.
• B/C axes (tilt & rotary): Check for play, smooth movement, and seal condition.
• Coolant & hydraulic tanks: Look for sludge, leaks, contamination.
• Electrical cabinets: Burned connectors, retrofitted boards, poor wiring = warning signs.

---

4. Functional / Dynamic Tests

Axes

• Run X/Y/Z through full travel at slow, medium, and rapid feed.
• Reverse direction to detect backlash.
• Jog combined movements to test coordination.

B/C Axes

• Tilt and rotate fully; check for vibration, backlash, smoothness.
• Watch for alarms or axis lag.

Spindle

• Ramp up to full rpm; listen for abnormal noise (whine, grinding).
• Monitor vibration and temperature rise.
• Check spindle lubrication system for clean flow.

ATC & Tooling

• Cycle the tool magazine; test random indexing.
• Inspect grippers, tool seat accuracy, and clamping repeatability.

CNC Control

• Boot the Heidenhain iTNC 530.
• Check alarm history, memory capacity, backup/restore functions.
• Dry-run a program, test offsets, macros, and probing cycles if equipped.

---

5. Precision & Test Cuts

• Ballbar test: Detects servo issues, circular interpolation errors.
• Laser interferometer: Check linear accuracy, pitch error, squareness.
• Test part machining: Run a benchmark part, measure tolerances, surface finish, concentricity.
• Thermal stability: Run for several hours, re-measure part accuracy to see drift.

---

6. Spare Parts & Support Risks

• Spindle availability: High-speed spindles (20k/42k) are expensive; check availability.
• Heidenhain iTNC 530 support: Still widely supported, but older modules may be costly.
• Motors, drives, encoders: Verify sourcing options in your region.
• Linear guides, seals, couplings: Ensure replacements are available.
• Local service network: Check if certified Mikron / GF Machining Solutions technicians are available near you.

---

7. Logistics & Hidden Costs

• Transport & rigging: Heavy (≈7.7 tons) and delicate B/C axes require careful handling.
• Foundation & leveling: Needs a solid, vibration-free base.
• Power requirements: Confirm correct voltage, phase, grounding, and transformer needs.
• Cooling & filtration: High-speed spindles often require chillers; check condition.
• Training: Heidenhain controls may require operator training.
• Downtime: Budget for ramp-up, calibration, and potential repairs.

---

8. Contractual Safeguards

• Conditional acceptance: Payment finalized only after tests and part trials.
• Holdback / escrow: Retain a percentage until machine proves accuracy.
• Written acceptance criteria: Define tolerances and test protocols.
• Short warranty: Even 30–90 days on spindle and control is valuable.
• Spare package: Negotiate essential spares (bearings, seals, filters, toolholders).

---

9. Red Flags

• Seller refuses live demo or test cut.
• No service history.
• Excessive spindle noise, play, or overheating.
• B or C axis backlash or alarms.
• ATC mis-indexes or drops tools.
• Missing serial plate or defaced nameplate.
• Unrealistically low price compared to market.

---

Bottom line: The UCP 600 Vario is an excellent 5-axis machine when well maintained, but spindle condition, B/C axis backlash, and Heidenhain control health are make-or-break factors.
