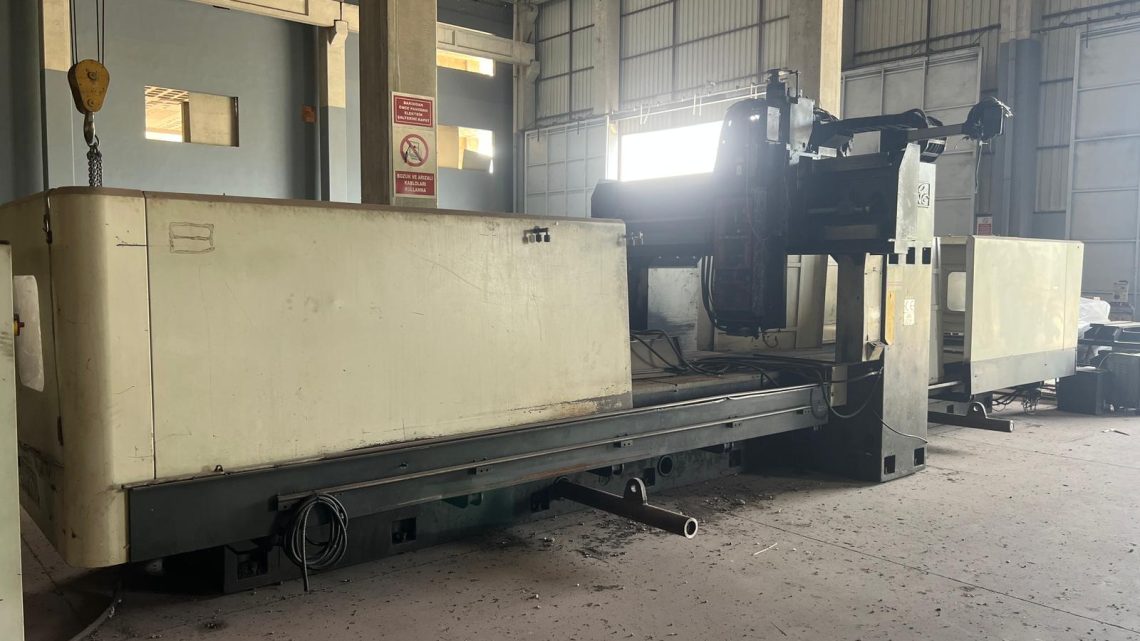

Avoid Costly Mistakes: Professional Tips for Purchasing a Pre-Owned / Second-Hand / used Kao Ming KMC-4000SD-C CNC Double Column Bridge Type Vertical Machining Center

Here’s a detailed, professional checklist and guidance to help you avoid expensive mistakes when considering a pre-owned / second-hand Kao Ming KMC-4000SD-C (double column / bridge-type vertical machining center). Because double-column bridge mills are heavy, high value, and inherently complex, you need to dig deeper than a typical VMC. Use this as a framework and adapt it to the specific condition and features of the candidate machine.

0. Benchmark specs & expected features (what “good” looks like)

Before you go onsite, you should know what the “normal / ideal” version of a KMC-4000SD should be, so you can spot exaggerations, outliers, or red flags.

From public listings & catalogs:

The KMC-SD series (including the 4000SD) uses rigid box way / box-way guideways on the X, Y, Z axes, not linear rails, which gives durability and supports heavy cuts.
The spindle transmission often uses two gear ranges (helical + spur) to allow both high torque at low rpm and higher speeds for finishing.
The slideway contact surfaces are often lined with Turcite-B (or similar low-friction bearing strips) for wear resistance.
Typical published travels and specs (for the 4000SD / variants):
• X ≈ 4,229 mm (≈ 166.5″)
• Y ≈ 1,399 mm (≈ 55.1″)
• Z ≈ 701 mm (≈ 27.6″)
• Spindle speed (with gear head) ≈ 3,200 rpm (geared)
• Spindle power ~14.9 kW (~20 HP) in some versions
• Spindle nose to table clearance ~ 200 to 900 mm
• Table size, for large variants, is large (one listing: ~ 4,500 × 1,500 mm)
From catalogs: the KMC-SD series promotes features like full box-way support on all axes, gear ranges for spindle, and Turcite-B bearing surfaces.
Double column design advantage: the table doesn’t overhang, giving better rigidity over full travel. (Heinman advertisement).

Use these as your “yardstick.” If a seller claims double the spindle rpm, vastly bigger travels, or linear-rail upgrade with no documentation, you must demand proof or treat with suspicion.

1. Previsit / document request & preliminary screening

Before you go inspect physically, gather as much “paperwork” and evidence as possible.

Ask for the serial number, build year, machine variant (“SD-C”) and any retrofit or rebuild history.
Request: mechanical, electrical, hydraulic, and control manuals; wiring diagrams; parts lists; calibration/alignment records; maintenance logs; spindle rebuild records.
Ask for videos of the machine in motion (unloaded) showing all axes (X, Y, Z) moving, tool change, spindle run, column travel.
Ask for recent alignment or metrology data (laser, interferometer, ballbar) if available.
Ask for control system version, backup of all parameters, custom code, compensation tables, and whether licenses / dongles are included.
Determine usage history: what types of parts were machined (heavy castings, molds, aluminum, steel), shift hours, prior load levels, crash events.
Ask about spare parts availability, particularly for gearbox, spindle, bearing sets, Turcite lining, box way slides, control electronics.
Check physical environment: was it indoors, dry, climate controlled? Was coolant flow clean or contaminated?
Confirm logistics: approximate weight (many tens of tons), crane / rigging capacity, machine footprint, disassembly requirements.

If the seller cannot or will not provide supporting documentation or refuses to show detailed motion videos, that’s already a warning.

2. Structural & mechanical inspection (heavy systems)

Because the structural rigidity and guide condition are crucial for large machines, these checks are priority.

a) Frames, columns, bridge, base, structural integrity

Visually examine for cracks, weld repairs, patches, deformations in columns, base, ribs, gantry arms.
Use long straightedges, precision levels, or optical methods to check for twist, warp or bending in the principal reference surfaces (column faces, table mounting surfaces, rails).
Check symmetry: if one side is worn more, it may indicate misalignment or drift over time.
Examine mounting surfaces, mating faces, interface areas for corrosion or pitting.

b) Guideways / Box way slides / gibs

Move axes (X, Y, Z) over full travel (manually or slow CNC) and feel for zones where motion is uneven, sticky, or gliding becomes difficult.
Inspect the sliding surfaces of the box ways (upper and lower) for scoring, pitting, corrosion, wear flats or ridges.
Check the adjustment systems (gibs, shim packs, preload screws) for condition, play, wear, and smoothness of adjustment.
Inspect protective covers, scrapers, wipers, or slide guards. Any broken or missing guards expose wear risk.
Feel for “cold spots” or rough patches along the guide that suggest localized damage.

c) Ball screws / drive screws / backlash & transmission

Reverse small movements in each axis (X, Y, Z) and measure backlash with a precision indicator. For a machine like this, acceptable backlash should be very low (tens of microns or less).
Feel for binding, zones of friction change or stick/slip along the travel.
Inspect couplings between drive motors and screws for looseness, wear or misalignment.
Check bearing mounts and nut housings, and whether there is any play or looseness in them.

d) Spindle & spindle head / gear box

Mount a precision test bar or spindle gauge and measure radial and axial runout (lowest possible tolerance).
Run the spindle at multiple speeds (unloaded) to check for bearing noise, vibration, “growl,” or irregular behavior.
After running, measure spindle housing temperature—hot spots or uneven heating is a red flag.
Inspect spindle nose, taper, locking mechanism, keyways, drawbar or retention mechanism.
If the machine uses a gear-spindle (helical + spur gearbox) as is typical in KMC-SD, verify the gearbox condition: check oil (for metal particles), play, gear backlash, smooth gear meshing, and lubrication.
Check for oil leaks at seals, gear housings, or spindle interface.

e) Tool changer / magazine system

Cycle the ATC many times; look for mis-indexing, slow action, jamming, or inconsistency.
Inspect magazine rails, pockets, slides, sensors, actuators for wear or looseness.
Check the repeatability of tool mounting—when a tool is changed, is its position consistent?
Verify blow-off, lube, air purge, or magazine cleaning systems.

f) Coolant, lubrication, hydraulics & auxiliary systems

Inspect coolant pumps, piping, filters, sump, for leaks, corrosion, sludge, or contamination.
Check lubrication system (automatic lube lines, oil/grease feeds) to ensure all axes and slides are getting proper lubrication.
Test any hydraulic or pneumatic systems (clamps, locks, head slides etc.) for leaks, pressure fluctuations, actuation behavior.
Examine hoses, seals, valves for brittleness or prior repair.
Check chip conveyors, splash guards, guard doors, and flushing / chip evacuation paths.

3. Electrical, control & CNC system checks

Often the “hidden risk” in used machines is the control / electronics side. Don’t skip this.

Power up the machine in a controlled, stepwise fashion (ideally with an isolation transformer or under partial power) — watch for smoke, burnt smells, blown fuses, breaker trips.
Open electrical cabinets (if allowed) and inspect wiring: look for brittle insulation, heat discoloration, cracked wire jackets, splices, rework, or amateur repairs.
Boot up the CNC controller: test display, diagnostics, parameter screens, error logs, memory, backups.
Jog each axis individually (X, Y, Z) under control in various speeds, directions, acceleration ramps. Look for stuttering, vibration, delays in reversal, or erratic motion.
Check limit switches, home switches, over travel interlocks, emergency stops and safe zones.
Verify feedback / encoder systems, sensors, signal quality, dropout or noise susceptibility.
Run multi-axis coordinated moves (even if just simple ones) to check synchronization, look for lag or path deviation.
Confirm that all software, backup parameter sets, custom macros, compensation tables are included.
If the control is older or proprietary, ensure availability of replacement modules or spare boards, or compatibility with future upgrades.

4. Functional / load testing & acceptance trials

You must see the machine perform at or near intended workload, not just idle motions.

Bring (or ask the seller to prepare) a representative part and tool setup approximating real use cases (heavy cuts, finishing passes).
Run full-stroke moves with load in all axes and monitor for stalling, vibration, or misbehavior.
Do return-to-zero / repeatability tests (move away & return) and measure deviation with high-precision instrumentation.
Perform full machining cycles and measure final workpieces: dimensional accuracy, flatness, finish, positional tolerances, repeatability, geometric accuracy.
Run extended cycles (hours) to see if thermal drift or alignment shift emerges over time.
Test tool changes mid-cycle, repeated changes, and measure re-positioning accuracy.
Test all auxiliary systems under load: coolant on/off, chip flushing, guard doors, interlocks, etc.
If possible, stress test at higher feeds / speeds to see if machine breaks into unstable zones or shows unexpected limit behavior.

If seller refuses load tests or restricts testing, that is a significant red flag.

5. Geometry, alignment & calibration

Even a “good” machine might have drifted in alignment or geometry errors; you must verify whether it can still be brought into spec.

Request existing alignment / calibration reports (laser, ballbar, interferometry).
With your own instrumentation (or hiring a metrology specialist), check:
• Squareness between axes (X–Y, Y–Z, X–Z)
• Straightness of travel (in X, Y, Z) over full travel
• Parallelism of table surface to axes
• Angular or tilt error in spindle axis relative to axes
• Backlash and repeatability in all axes
Check whether the control supports compensation, error mapping, or geometric correction tables.
If significant misalignment is detected, evaluate whether correcting it is feasible (shim adjustment, re-grinding, re-leveling) and cost-effective.

6. Spare parts, serviceability & future upgrade path

A used machine is only valuable if you can keep it running reliably later.

Ensure availability of critical spares: gearbox parts, spindle bearings, box way wear blocks, Turcite lining, screws, couplings, control modules, drives, sensors, ATC components.
Check whether Kao Ming or third-party aftermarket suppliers support parts for KMC-SD series in your region.
Evaluate whether retrofitting a newer control (if current becomes obsolete) is feasible for the machine’s mechanical structure.
Check the tooling ecosystem (collets, tool holders, adapters, cutters) and whether the machine’s taper or interface is standard and parts are still available.
Confirm that spare electronics modules (control boards, amplifiers, I/O, drives) are procurable.
If possible, get spare wear parts (Turcite strips, slides, seals) included in the deal.

If many key systems depend on obsolete or rare parts, the machine may be a liability even if it “works now.”

7. Contract / agreement & risk allocation

Use your inspection findings as bargaining leverage and protection in writing.

Insist on conditional acceptance / acceptance testing: final payment only after the machine passes your defined functional performance tests.
Define quantitative acceptance criteria: allowable runout, repeatability tolerances, geometric deviation, surface finish, backlash, etc.
Request a short-term warranty / guarantee (e.g., 30–90 days) for critical systems: spindle, drives, control, gearbox.
Require all documentation (manuals, wiring, software backups, alignment records) be delivered.
Clarify who bears cost of transport, rigging, leveling, foundation work, site modifications, commissioning, alignment, and re-grouting.
Include a “burn-in / commissioning period” clause: defects discovered under real usage in that time must be remedied by the seller.
Request disclosure of any known defects or prior repairs (especially structural or spindle/gearbox) in writing.

8. Transport, installation & commissioning

Even a perfect machine can be ruined during move or poor setup—plan carefully.

Confirm accurate machine weight (35–40 tons is an estimate in one ad) , center-of-gravity, lifting points, and whether any partial disassembly is needed.
Use proper rigging, support structures, shock absorption, and crating to avoid stressing frames in transit.
After installation, re-level, re-anchor or re-grout properly (foundation stiffness, vibrations, leveling precision matter).
Allow a commissioning / burn-in period under real cuts before final acceptance.
After the machine “settles,” re-check alignment, backlash, geometry, and performance under workload conditions.
Be present (or send your engineer) during early production runs to catch issues early.

9. Red flags & deal-breakers

If you encounter multiple of the following, you should strongly reconsider or demand very aggressive discount / remediation.

Seller refuses full inspection, restricts motion testing, or disallows load cuts.
Structural repairs, welds, or modifications of columns, bridges, or other frame parts without credible documentation or metrology validation.
Spindle noise, vibration, excessive runout, missing rebuild records, oil leaks, or gear play in gearbox.
Gearbox seems worn, sloppy, noisy under even light movement.
Excessive backlash in axes beyond what the control can compensate.
Control / electronics are obsolete, proprietary, or without spare part support.
Wiring harnesses, insulation cracked or brittle, many splices, signs of overheating or amateur repair.
Missing or incomplete documentation (manuals, wiring, software, alignment logs).
ATC / magazine mis-indexing, frequent failures or jamming.
Cooling / lubrication / hydraulic systems in bad condition: leaks, contamination, nonfunctioning.
High wear in guideways, box way surfaces, or coupling mounts such that refurbishment cost is large.
No spares or supplier support in your region.
Hidden environmental damage (flooding, coolant corrosion, neglect, exposure) being concealed.
