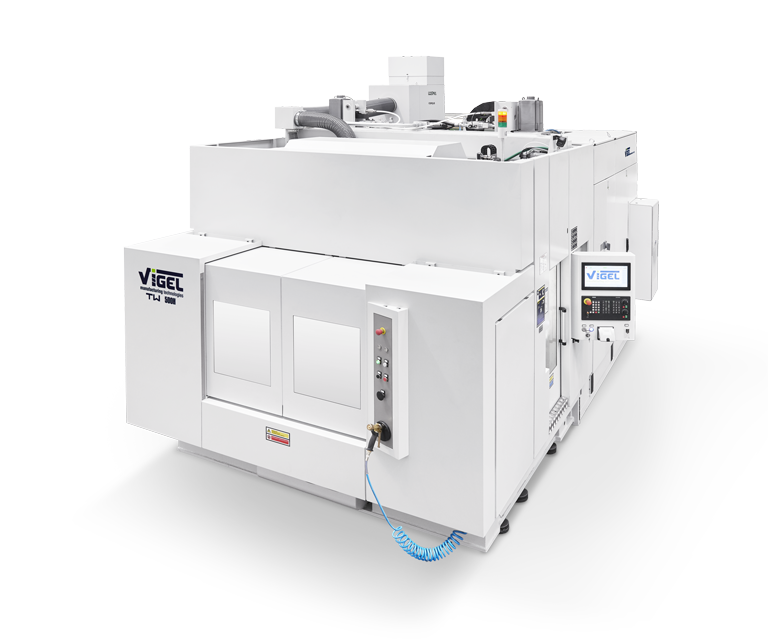

Available now : used VIGEL TW 500H Bi.Z CNC 2 Spindle 5 Axis Horizontal Machining Center – Year 2020 made in Italy
| Vigel TW 500H Bi.Z CNC 2-Spindle 5-Axis Horizontal Machining Center – Year 2020 | ||
|---|---|---|
| Specification | Metric | Imperial |
| Manufacturer | Vigel | |
| Model | TW 500H Bi.Z Two-Spindle 5-Axis | |
| Machine Type | Twin-Spindle 5-Axis Horizontal Machining Center | |
| Year of Manufacture | 2020 | 2020 |
| Condition | Excellent (Used) | |
| CNC Control | SIEMENS 840D | |
| Number of Axes | 5 | 5 |
| Working Envelope | ||
| X-Axis Travel | 500 mm | 19.69 in |
| Y-Axis Travel | 940 mm (600 mm working + 340 mm tool change) | 37.01 in (23.62 in working + 13.39 in tool change) |
| Z-Axis Travel | 500 mm | 19.69 in |
| Distance Between Spindles | 500 mm | 19.69 in |
| Spindles | ||
| Number of Spindles | 2 (Synchronized) | 2 (Synchronized) |
| Spindle Taper | HSK80 | HSK80 |
| Maximum Spindle Speed | 8,000 RPM | 8,000 RPM |

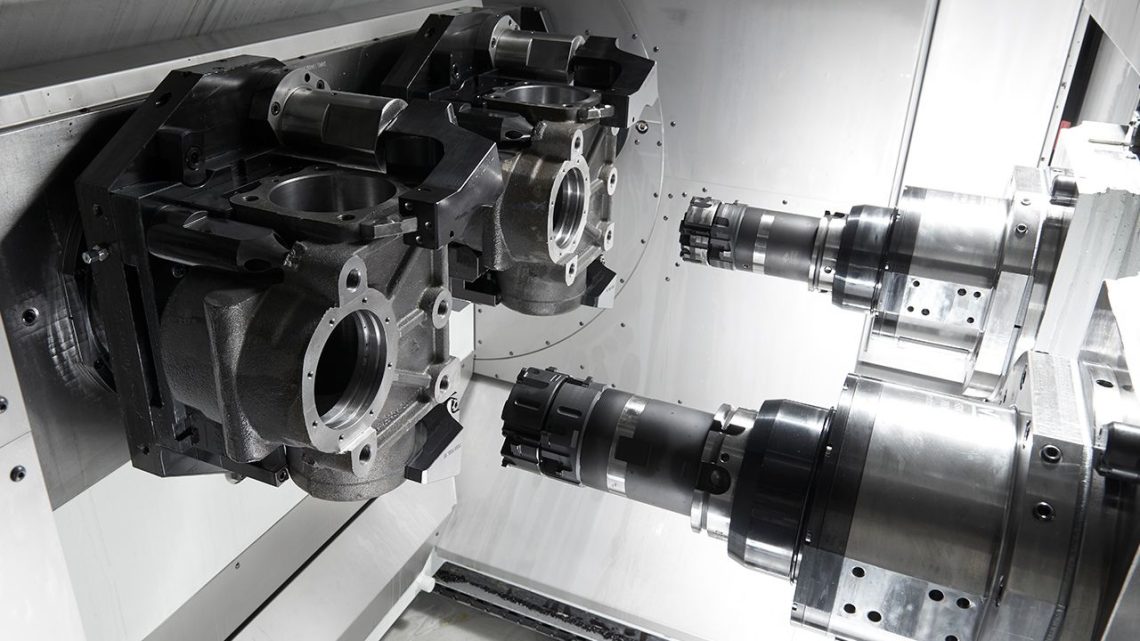

| Spindle Configuration | Twin synchronized spindles for simultaneous machining of two workpieces. | |
| Tool Magazine | ||
| Magazine Capacity | 30 Tools per Spindle | 30 Tools per Spindle |
| Maximum Tool Length | 360 mm | 14.17 in |
| Maximum Tool Diameter | 199 mm | 7.83 in |
| Maximum Tool Weight | 6 kg | 13.23 lbs |
| Machine Performance | ||
| Machine Drives | Linear Drives on Linear Axes | |
| Rotary Axes | Direct-Drive Torque Motors | |
| Positioning Accuracy | 8 µm | 0.000315 in |
| Coolant Pressure | 40 bar | 580 psi |
| Auxiliary Equipment | ||
| Coolant Chiller | Included | |
| Coolant Filtration | KNOLL Filtration System | |
| Mist Filtration | Included | |
| Chip Conveyor | Included | |
| Documentation / Manuals | Included | |
| Infinitely Variable Spindle Speed | Yes | |
| Physical Data | ||
| Machine Weight | Approx. 19,000 kg | Approx. 41,888 lbs |
| Machine Highlights | ||
| Production Concept | High-productivity twin-spindle 5-axis machining center designed for serial production of complex precision components. | |
| Industries | Aerospace, Automotive, Precision Engineering, High-Volume Manufacturing | |
| Main Advantages | • Simultaneous machining of two workpieces • Twin synchronized HSK80 spindles • Linear drive technology • Direct-drive torque rotary axes • 8 µm positioning accuracy • KNOLL coolant filtration system • Complete chip and mist management system | |
