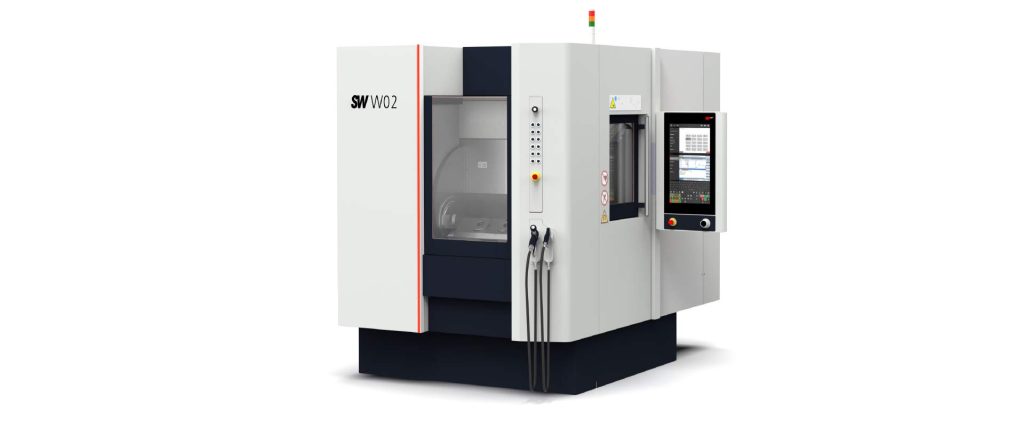

| SW BA W02-22i CNC 2-Spindle 4-Axis Horizontal Machining Center
with Robot Loader Integrated Ceiling-Mounted Fanuc LR Mate 200iD 6-Axis Robot – Year 2022 |
| Specification |
Metric |
Imperial |
| Manufacturer |
SW |
| Model |
BA W02-22i 4-Axis |
| Machine Type |
Twin-Spindle 4-Axis Horizontal Machining Center |
| Year of Manufacture |
2022 |
2022 |
| Condition |
Like New (Used) |
| Functionality |
Fully Functional |
| Operating Hours |
680 Hours |
680 Hours |
| Spindle Hours |
680 Hours |
680 Hours |
| CNC Control |
Siemens 840D |
| Axis Travels |
| X-Axis Travel |
200 mm |
7.87 in |
| Y-Axis Travel |
350 mm |
13.78 in |
| Y-Axis (Tool Change Position) |
525 mm |
20.67 in |
| Z-Axis Travel |
300 mm |
11.81 in |
| Spindle Distance |
250 mm |
9.84 in |
| Spindle |
| Number of Spindles |
2 |
2 |
| Spindle Taper |
HSK A40 |
HSK A40 |
| Maximum Spindle Speed |
25,000 RPM |
25,000 RPM |
| Speed Range |
1 – 25,000 RPM |
1 – 25,000 RPM |
| Maximum Power (40% Duty Cycle) |
18 kW |
24.1 HP |
| Nominal Power |
14 kW |
18.8 HP |
| Maximum Torque (40% Duty Cycle) |
17 Nm |
12.5 lb-ft |
| Nominal Torque |
13 Nm |
9.6 lb-ft |
| Spindle Bearing Diameter |
50 mm |
1.97 in |
| Spindle Lubrication |
Minimum-Quantity Oil Lubrication (MQL) |
| Feed Drives |
| Drive Type |
Three-Phase Siemens 1FN3 Linear Motors with Three Cooling Circuits |
| X-Axis Rapid Traverse |
80 m/min |
3,150 IPM |
| Y-Axis Rapid Traverse |
120 m/min |
4,724 IPM |
| Z-Axis Rapid Traverse |
120 m/min |
4,724 IPM |
| Coolant System |
| Coolant Pressure |
80 bar |
1,160 psi |
| Tool Magazine |
| Magazine Type |
Rail-Guided Pick-Up Chain Magazine |
| Magazine Capacity |
2 × 20 Tools |
2 × 20 Tools |
| Maximum Chain Speed |
100 m/min |
3,937 IPM |
| Tool Change System |
Pick-Up Type |
| Integrated Automation |
| Automation Cell |
Integrated Manufacturing Cell with One-Shift Workpiece Supply |
| Robot Loader |

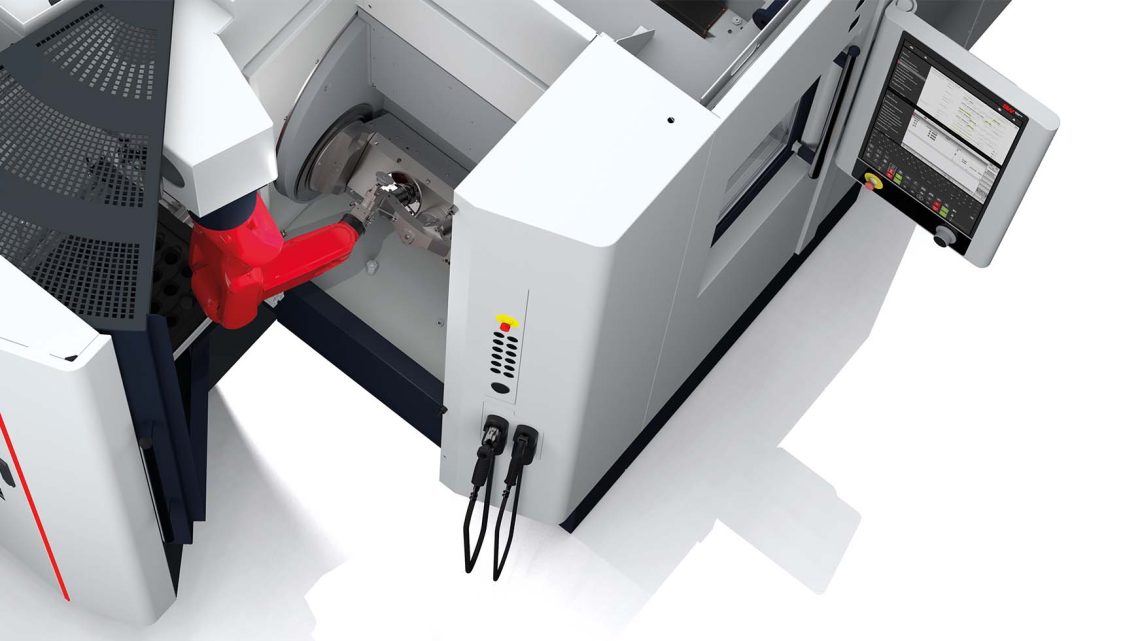

Integrated Ceiling-Mounted Fanuc LR Mate 200iD 6-Axis Robot |
| Robot Payload |
7 kg |
15.4 lbs |
| Maximum Workpiece Weight |
0.7 kg |
1.54 lbs |
| Robot Features |
Double Gripper, Multi-Gripping, Pallet Handling, Internal Cable Routing, ProfiNet Communication |
| Workpiece Magazine |
| Magazine Type |
Vertical Elevator Pallet Storage |
| Maximum Number of Pallets |
24 |
24 |
| Pallet Size |
632 × 436 mm |
24.88 × 17.17 in |
| Usable Inlay Size |
600 × 400 mm |
23.62 × 15.75 in |
| Recommended Workpiece Size |
100 × 100 × 50 mm |
3.94 × 3.94 × 1.97 in |
| Pallet Guidance |
Wear-Free PE or Hard-Anodized PTFE-Impregnated Aluminum |
| Grid Pitch |
18 mm |
0.71 in |
| Pallet Drive |
Wear-Free Ball Screw Drive |
| Machine Highlights |
| Machine Structure |
Monobloc Steel / Mineral-Cast Composite Design |
| Axis Drives |
Linear Motors (X, Y, Z) and Torque Motors (Rotary Axes) |
| Y-Axis Drive |
Electronic Gantry Drive for High Positional Accuracy Under Eccentric Loads |
| Machining Unit |
Mass-Optimized “Box-in-Open” Design |
| Loading System |
Double Swivel Carrier with Two Integrated Rotary Axes for In-Cycle Loading and Unloading |
| Application |
High-Speed 4-Axis Machining of Small Non-Ferrous Metal Components with Twin-Spindle Productivity |
