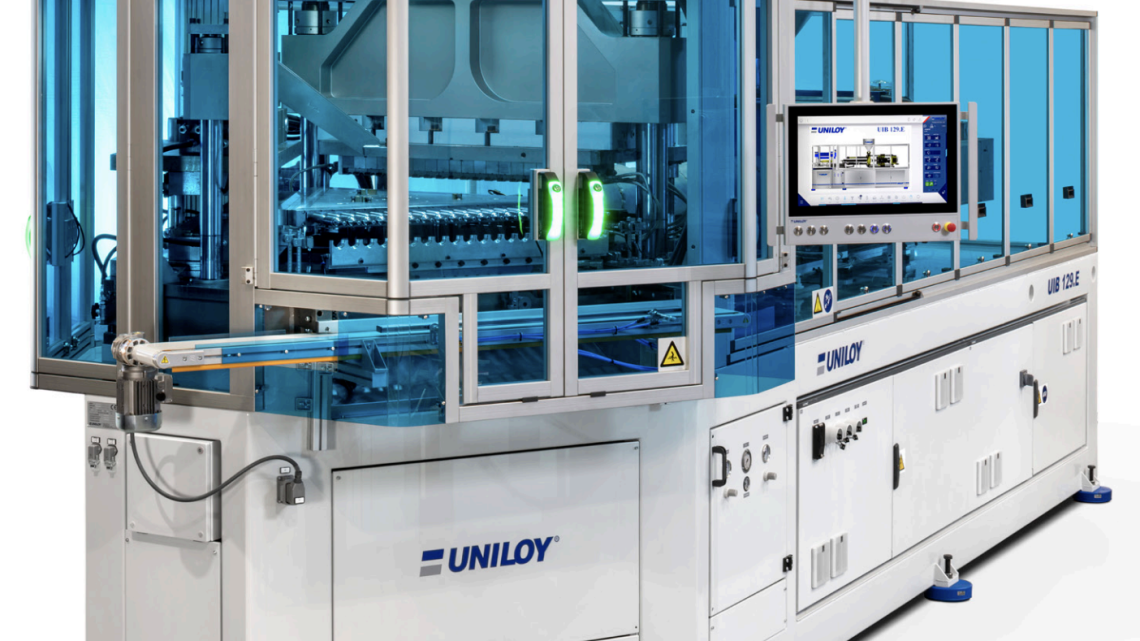

Uniloy UIB 189-3 Injection Blow Molding Machine – Technical Specifications

Note: The UIB 189-3 is a legacy 3-station injection blow molding machine. Specifications are compiled from official Uniloy references and promotional materials. For machine-specific details (serial number based), contact Uniloy directly.

UIB Series General & UIB 189-3 Highlights

Parameter	Specification
Machine Type	3-Station Injection Blow Molding (Horizontal Rotary Table)
Clamp Force (Injection)	≈ 189 metric tons (≈ 208 US tons)
Stations	Injection → Conditioning / Blow → Eject
Extruder	Horizontal Reciprocating Screw (Example: 3 in / 76 mm Diameter × 25:1 L/D)
Plasticizing Rate	75 – 100+ g/sec (Depending on Screw & Resin)
Container Size Range	2 ml to Approximately 2 Liters (Model Dependent)
Blow System	Two-Pressure Blow (Standard Low: 150 psi, Optional Higher)

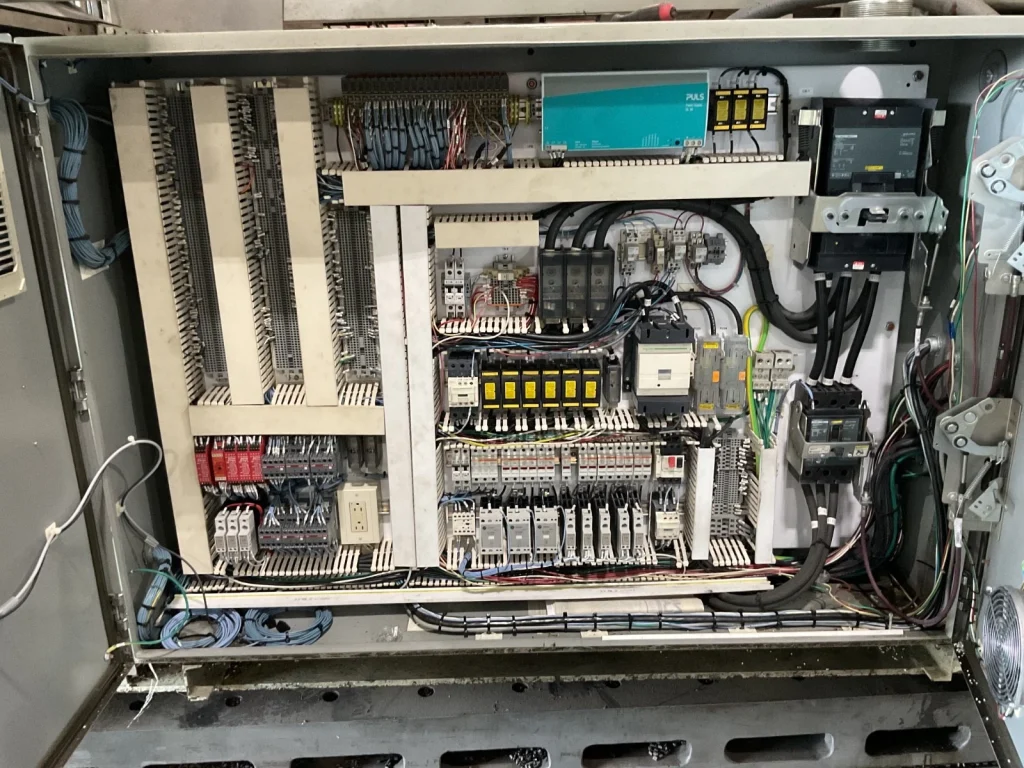

Control System	Microprocessor / BNR Type with Parameter Storage
Key Features	Scrap-Free Process, Precise Neck Finish, Tie-Bar Clamp, Ground-Level Extruder, Hydraulic Components Below Molding Area



Example Application (UIB 189-3S)

Parameter	Details
Container Example	12 oz (355 ml) Round HDPE Bottles
Neck Finish	33 mm
Resin	HDPE (Compatible with a Wide Range of Thermoplastics)

Source: Official Uniloy technical literature and promotional materials. Specifications may vary depending on machine configuration, installed options, and year of manufacture.
