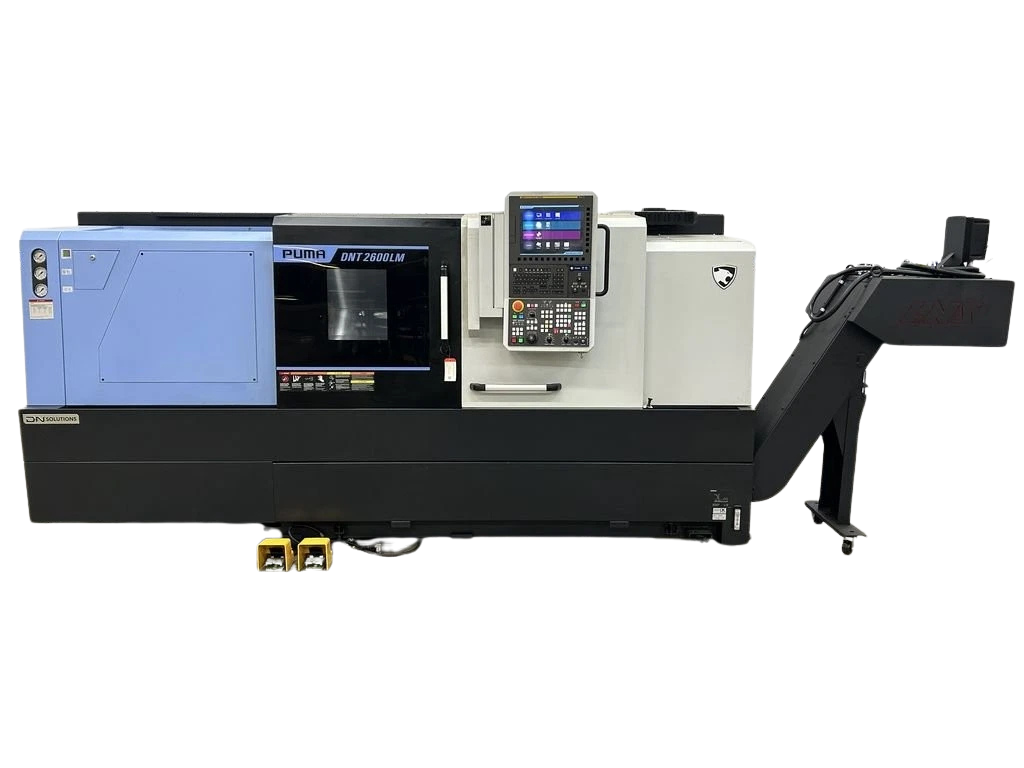

DN Solutions Puma DNT 2600LM CNC Turning Center Chuck 10 inch – Year 2024

DN Solutions ( DOOSAN )

Model	Puma DNT 2600LM
Year of Manufacture	2024
Serial Number	contact to us
Main Spindle Chuck	254 mm	10 in
Maximum Turning Diameter	380 mm	14.96 in
Maximum Turning Length	1,029 mm	40.5 in
Spindle Bore	82 mm	3.23 in
Maximum Spindle Speed	3,500 rpm	3,500 rpm
Spindle Motor Power	18.5 kW	25 HP
Maximum Spindle Torque	735 Nm	542 ft-lb
Turret	12-Station BMT-55 Live Tool Turret
X-Axis Travel	260 mm	10.23 in
Z-Axis Travel	1,100 mm	43.3 in
Rapid Traverse (X-Axis)	24 m/min	945 ipm
Rapid Traverse (Z-Axis)	30 m/min	1,181 ipm
Electrical Supply	220V / 3 Phase
Approximate Machine Weight	5,897 kg	13,000 lb
Approximate Shipping Dimensions (L × W × H)	7,620 × 2,134 × 2,438 mm	25 × 7 × 8 ft
CNC Control	Fanuc I Series Plus CNC with 15″ Color Touch Screen
Conversational Programming	EZ Work Conversational Programming
C-Axis	Included
Hydraulic Chuck	254 mm Samchully MH-210Vi 3-Jaw	10 in Samchully MH-210Vi 3-Jaw
Chip Conveyor	LNS Turbo HB Chip Conveyor (Model 57519963)
Lubrication System	Automatic HLS Lubrication System
Coolant System	Included
Air Preparation Unit	Air Filter / Regulator / Lubricator Assembly
Foot Pedals	Dual Foot Pedals
Work Light	Included
Machine Condition	Machine can be demonstrated upon request.
