Available Machines

Manufacturer	Model	Machine Type	Year	Quantity Available
Modig	HHV Hybrid-2H	CNC 5-Axis Horizontal High Velocity Hybrid Machining Center	2021	2 Units
Modig	HHV2	CNC 5-Axis Horizontal High Velocity Machining Center	2021	5 Units

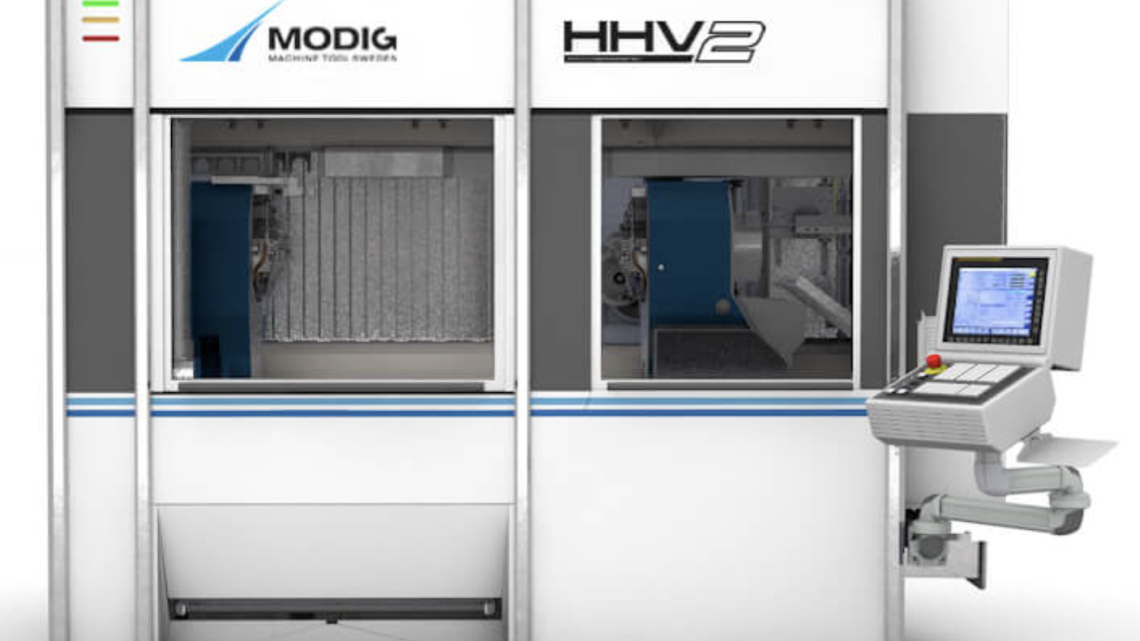

Modig HHV2 Horizontal High Velocity CNC Horizontal Machining Center – Year 2021 Total 5 Machines Available

Specification	Metric	Imperial
Manufacturer	Modig
Model	HHV2 Horizontal High Velocity
Year of Manufacture	2021
Serial Number 1	Contact to us
Serial Number 2	Contact to us
Serial Number 3	Contact to us
Serial Number 4	Contact to us
Serial Number 5	Contact to us
Machine Type	Horizontal High Velocity CNC Horizontal Machining Center
X-Axis Travel	1,524 mm	60 in
Y-Axis Travel	508 mm	20 in
Z-Axis Travel	254 mm	10 in
B-Axis Index	±15°	±15°
A1 / A2-Axis Index	190°	190°
Maximum Spindle Speed	30,000 rpm	30,000 rpm
Spindle Motor Power	41.8 kW	56 HP
Tool Taper	HSK-A63
Machine Run Time	6,567 Hours	6,567 Hours
Replacement Spindle	MFW-1718/30/22 VC HSK-A63 Spindle (New in 2024)
Coolant Filtration System	Knoll KF 400 Coolant Filtration System
Automatic Loader	6,000 mm	6 Meter Auto Loader
Rotary Chucks	2 Units	2 Units
Chip Removal	Chip Conveyor
Machine Dimensions	Available Upon Request
Features	High Velocity Horizontal Machining Center 30,000 RPM High-Speed Spindle HSK-A63 Tool Interface 6 Meter Automatic Loader Knoll KF400 Coolant Filtration System New MFW-1718/30/22 VC Spindle Installed in 2024 Chip Conveyor (2) Rotary Chucks

Modig HHV Horizontal High Velocity Hybrid CNC Horizontal Machining Center – Year 2021 – Total 2 Machines Available

Specification	Metric	Imperial
Manufacturer	Modig
Model	HHV Hybrid
Year of Manufacture	2021
Serial Number	Contact to us
Machine Type	CNC Horizontal Machining Center / Hybrid Manufacturing System
X-Axis Travel	1,524 mm	60 in
Y-Axis Travel	508 mm	20 in
Z-Axis Travel	254 mm	10 in
B-Axis Index	±15°	±15°
A1 / A2-Axis Index	190°	190°
Spindle	MFW-1718/30/22 VC HSK-A63 (New Spindle Installed in 2024)
Spindle Interface	HSK-A63
Machine Run Time	648 Hours	648 Hours
Friction Stir Welding	FSW (Friction Stir Welding) Capability
Coolant Filtration System	Knoll KF 400 Coolant Filtration System
Rotary Chucks	2 Units	2 Units
Chip Removal	Chip Conveyor
Machine Condition	Very Low Usage – Approximately 648 Operating Hours
Shipping Dimensions	Available Upon Request
Features	Hybrid CNC Horizontal Machining Center Friction Stir Welding (FSW) Capability HSK-A63 High-Performance Spindle (Installed 2024) Knoll KF400 Coolant Filtration System (2) Rotary Chucks Chip Conveyor Low Machine Hours (648 Hours)
