Available now : used Trotec SP3000 Large Format CO₂ Laser Cutting & Engraving System 400 Watt – Year 2023

Trotec SP3000 Large Format CO₂ Laser Cutting & Engraving System – Technical Specifications
Specification	Metric	Imperial
MECHANICS
Working Area	2,210 × 3,210 mm	87 × 126 in
Loading Area	2,500 × ∞ mm	98 × ∞ in
Maximum Workpiece Height	50 mm	1.96 in
Working Head	Software Controlled Z-Axis	Software Controlled Z-Axis
Working Table	Slat Cutting Table, Aluminum Cutting Grid Table or Honeycomb Cutting Table	Slat Cutting Table, Aluminum Cutting Grid Table or Honeycomb Cutting Table
Maximum Processing Speed	1 m/s	39 ips
Acceleration	10 m/s²	393 ips²
Drive Motors	Brushless DC Servo Motors	Brushless DC Servo Motors
Position Sensor	Incremental Encoder	Incremental Encoder
Optical Elements	Telescope, Lens and All Mirrors Air-Flushed	Telescope, Lens and All Mirrors Air-Flushed
Lens	2.5″ Standard / 5.0″ Optional	2.5″ Standard / 5.0″ Optional
Addressable Accuracy	1 µm	0.00004 in
Accuracy to Size of Parts	Depends on Material and Process (Determined During Sampling)	Depends on Material and Process (Determined During Sampling)
Maximum Material Load	200 kg	440 lbs
InPack Technology™	Protects Working Head and Moving Parts Against Dust	Harsh Environment Protection Kit Included
Exhaust	Table Exhaust for Entire Working Area	Table Exhaust for Entire Working Area
Gas Kit	Compressed Air & Process Gas Control, Max. 6 bar	87 psi
Software	JobControl® Expert	JobControl® Expert
Interface	USB Connection to Control PC	USB Connection to Control PC
Operating Console	Keypad, Safety Switch, Workspace, Drawer (PC & Monitor Not Included)	Keypad, Safety Switch, Workspace, Drawer (PC & Monitor Not Included)
LASER
Laser Type	Sealed-Off CO₂ Laser	Sealed-Off CO₂ Laser
Laser Power	60 / 100 / 200 / 400 Watts	60 / 100 / 200 / 400 Watts
Cooling	Water Cooled	Water Cooled
Laser Wavelength	10.6 µm	10.6 µm
OPTIONS
JobControl® Vision	Camera Compensation System for Print & Cut Applications
Travelling Exhaust	Exhaust Mounted to Working Head
Digital Table Exhaust	Four Digitally Controlled Exhaust Sections
Tandem Operation	Continuous Machine Operation on Alternating Table Sides
Tabletop	Acrylic Cutting Grid Tabletop
Standard Chiller	Cooling Unit for All Power Levels
Advanced Chiller	For 200 W & 400 W Models with Tempering Function, Reduced Noise & Energy Consumption
Sonar Technology™	Ultrasonic Autofocus System
TroCAM Basic / Advanced	CAD/CAM Software, Nesting, Lead-In/Lead-Out, Kerf Correction
Workflow Integration	UniDrive Software, Hot Folder, Job Ticket Interface, Remote Execution Control
After Sales Service	Customized Service Packages Available
DIMENSIONS & WEIGHT
Machine Dimensions (W × D × H)	3,076 × 3,914 × 1,230 mm	121 × 154 × 49 in
Machine Weight	1,600 kg	3,530 lbs
Standard Chiller Dimensions	720 × 835 × 930 mm	28 × 33 × 37 in
Standard Chiller Weight	130 kg	287 lbs
Operating Console	800 × 600 × 1,126 mm / 40 kg	32 × 24 × 45 in / 88 lbs
Travelling Exhaust	2,082 × 714 × 2,852 mm / 100 kg	82 × 29 × 113 in / 220 lbs
SAFETY
Laser Class	Fully Enclosed Beam Path – CDRH Laser Safety Class 4 (Operates Like Class 2 in Standard Mode)
Laser Safety	Fully Enclosed Beam Path with Active Laser Deflector Shield
Mechanical Safety	Light Barriers and Safety Bumpers
Interlock	Dual Channel Interlock Safety System
Ambient Temperature	+15°C to +25°C	59°F to 77°F
Humidity	40% to 70% (Non-Condensing)	40% to 70% (Non-Condensing)
Environment	Dust-Free (IEC 60947-1, Degree 2)
Certification	CE Compliant
ELECTRICAL & EXHAUST
Table Exhaust	2,500 m³/h @ 800 Pa	1,200 cfm
Travelling Exhaust	100 m³/h @ 4,450 Pa	60 cfm
Voltage / Power (60 W)	3 × 400 V, 50/60 Hz, Max. 1.6 kW	3 × 400 V, 50/60 Hz, Max. 1.6 kW
Voltage / Power (100 W)	3 × 400 V, 50/60 Hz, Max. 3.1 kW	3 × 400 V, 50/60 Hz, Max. 3.1 kW
Voltage / Power (200 W)	3 × 400 V, 50/60 Hz, Max. 4.5 kW	3 × 400 V, 50/60 Hz, Max. 4.5 kW
Voltage / Power (400 W)	3 × 400 V, 50/60 Hz, Max. 8.4 kW	3 × 400 V, 50/60 Hz, Max. 8.4 kW

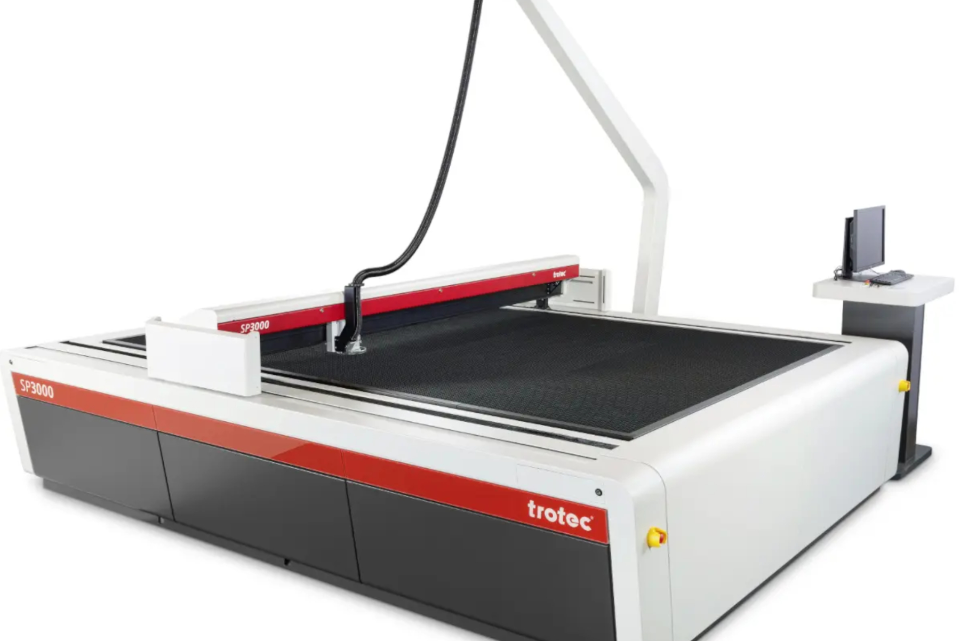

Trotec SP3000 Large Format CO₂ Laser Cutting & Engraving System 400 Watt – Year 2023

The Trotec SP3000 is a high-performance large-format CO₂ laser cutting and engraving system designed for continuous industrial production. Featuring a spacious 2,210 × 3,210 mm (87″ × 126″) working area and a powerful 400 Watt sealed CO₂ laser, the SP3000 is ideal for processing acrylic, plastics, wood, textiles, composites, paper, cardboard and many other non-metallic materials with exceptional precision and productivity. This machine was manufactured in 2023 and remains in like-new condition. It is fully functional and equipped with numerous factory options, making it immediately ready for demanding production environments.

Machine Configuration

400 Watt Sealed CO₂ Laser System
Working Area: 2,210 × 3,210 mm
Laser Pointer
Gas Kit
InPack Technology™
2.5″ Standard Lens
5.0″ Optional Lens
Software-Controlled Z-Axis
Active Laser Deflector Shield
Air-Cooled Optical System
Operator Console
Industrial PC with Windows® 10
JobControl® Expert Software
24″ Full-HD Monitor
Mouse & Keyboard
400W Water Cooling Unit
Aluminum Grid Cutting Table
Traveling Exhaust System
Digital Table Exhaust System
Sonar Technology™ Autofocus
Tandem Operation
Matching Industrial Dust Extractor
3-Phase Power Supply

Advantages of the Trotec SP3000

Large Working Area

The generous 2,210 × 3,210 mm processing area accommodates oversized sheets while the open front and rear machine design allows loading materials up to 2,500 mm wide. All four sides remain easily accessible, enabling continuous loading even during production.

Exceptional Cutting Speed

With processing speeds up to 1 m/s and acceleration up to 10 m/s² (1G), the SP3000 delivers outstanding productivity without compromising cutting quality. Precision linear guides and Trotec’s advanced drive system ensure consistently accurate results.

Air-Cooled Optics

All optical components are continuously protected with clean compressed air during operation, preventing contamination and significantly extending lens and mirror life while minimizing maintenance requirements.

Safe 24/7 Production

The fully enclosed beam path provides maximum operator safety. Although equipped with a Class 4 laser source, the machine operates according to Laser Safety Class 2 during normal production, eliminating the need for additional safety enclosures.

InPack Technology™

The fully enclosed, dust-proof axis system protects all mechanical components from harsh production environments, ensuring exceptional reliability and reduced maintenance requirements.

Traveling Exhaust System

The integrated extraction system removes fumes both above and below the workpiece, delivering cleaner cuts, superior engraving quality and improved working conditions.

JobControl® Expert Software

Trotec’s JobControl® Expert software offers advanced workflow management, material optimization, nesting capabilities and efficient production control far beyond the functionality of a conventional printer driver.
