| Manufacturer |
GPAINNOVA |
GPAINNOVA |
| Model |

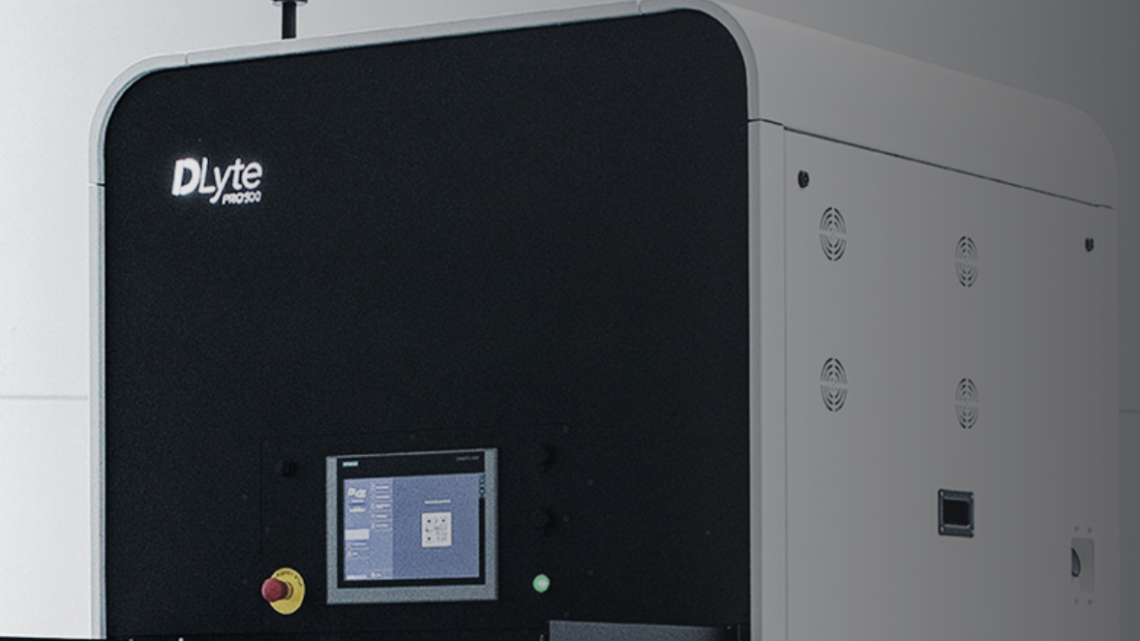

DLyte PRO500 |
DLyte PRO500 |
| Machine Type |
Dry Electropolishing / Surface Finishing System |
Dry Electropolishing / Surface Finishing System |
| Applications |
Automotive, Aerospace, Toolmaking, Medical Industries |
Automotive, Aerospace, Toolmaking, Medical Industries |
| Year |
2022 |
2022 |
| Condition |
Like New (Used) |
Like New (Used) |
| Operating Hours |
Approx. 500 h |
Approx. 500 h |
| Article Number |
GP4012691 |
GP4012691 |
| Serial Number |
200300-000081 |
200300-000081 |
| Machine Dimensions (L × W × H) |
1,300 × 1,380 × 2,770 mm |
51.2 × 54.3 × 109.1 in |
| Electrolyte Capacity |
250 L |
66.0 gal |

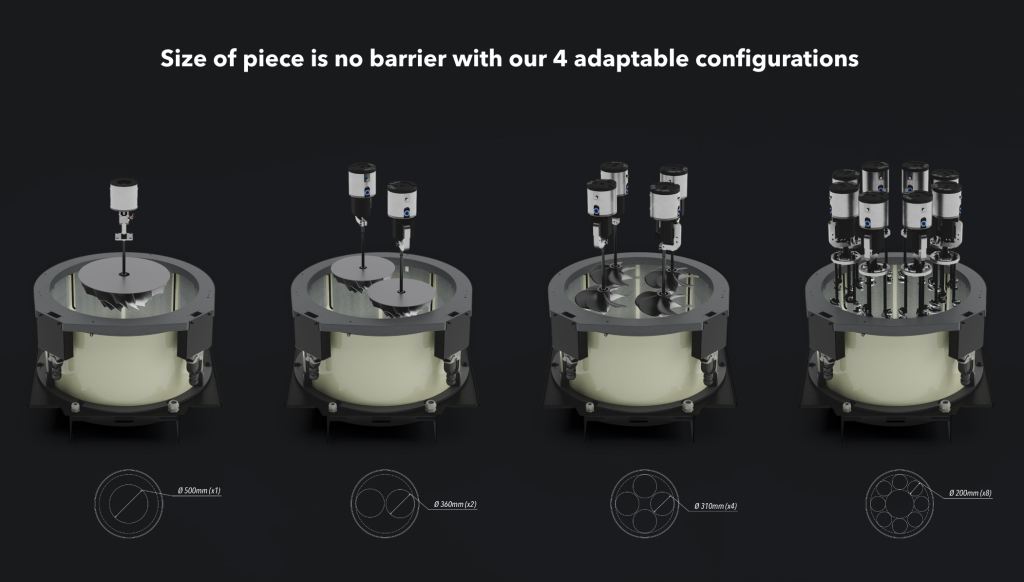

| Holder + Piece Capacity |
Ø500 × 540 mm (×1)
Ø360 × 540 mm (×2)
Ø310 × 540 mm (×4)
Ø200 × 540 mm (×8) |
Ø19.7 × 21.3 in (×1)
Ø14.2 × 21.3 in (×2)
Ø12.2 × 21.3 in (×4)
Ø7.9 × 21.3 in (×8) |
| Maximum Workpiece Capacity |
Up to Ø500 × 250 mm (×1)
Up to Ø360 × 250 mm (×2)
Up to Ø310 × 250 mm (×4)
Up to Ø200 × 200 mm (×8) |
Up to Ø19.7 × 9.8 in (×1)
Up to Ø14.2 × 9.8 in (×2)
Up to Ø12.2 × 9.8 in (×4)
Up to Ø7.9 × 7.9 in (×8) |
| Maximum Workpiece Weight |
50 kg (1 holder)
20 kg (2 / 4 / 8 holders) |
110 lbs (1 holder)
44 lbs (2 / 4 / 8 holders) |
| Machine Weight |
1,600 kg |
3,527 lbs |
| Tank Weight (Filled) |
400 kg |
882 lbs |
| Rated Power |
25 kW |
33.5 HP |
| Rated Voltage |
400 VAC ±10% (3P + N + GND) |
400 VAC ±10% (3P + N + GND) |
| Frequency |
50–60 Hz |
50–60 Hz |
| Rated Current |
35 A |
35 A |
| Full Load Current |
40 A |
40 A |
| Short Circuit Breaking Capacity (Ics) |
6 kA |
6 kA |
| Grounding System |
TN System |
TN System |
| Earth Leakage Current |
>10 mA |
>10 mA |
| Compressed Air Pressure |
6–7 bar |
87–102 psi |
| Air Connector |
Ø21 mm |
0.83 in |
| Air Consumption |
1,900 L/min |
67.1 CFM |
| Air Quality |
ISO 8573-1 Class 6:4:4 |
ISO 8573-1 Class 6:4:4 |
| Water Supply |
Ø10 mm Connection |
0.39 in Connection |
| Water Tank Capacity |
16 L |
4.2 gal |
| Operating Temperature |
5°C – 35°C |
41°F – 95°F |
| Storage Temperature |
-10°C – +70°C |
14°F – 158°F |
| Electrolyte Storage Temperature |
5°C – 40°C |
41°F – 104°F |
| Cooling Unit |
SMC Thermo Chiller HRS150-AF-40 (2023) |
SMC Thermo Chiller HRS150-AF-40 (2023) |
| Cooling Capacity |
5 kW |
17,060 BTU/h |
| Refrigerant |
R410A |
R410A |
| Chiller Power Supply |
380–415 V, 3-Phase, 50/60 Hz |
380–415 V, 3-Phase, 50/60 Hz |
| Chiller Weight |
177 kg |
390 lbs |
| Included Equipment |
• DLyte PRO500 Dry Electropolishing Machine
• SMC Thermo Chiller HRS150-AF-40 (2023)
• Original Workpiece Holder / Fixture System
• Mobile Holder Trolley / Storage System
• Original Accessories Included |
| Additional Features |
• Only Approximately 500 Operating Hours
• Like-New Condition
• Complete Surface Finishing System
• Dry Electropolishing Technology
• Suitable for Mass Production
• Ideal for Automotive, Aerospace, Toolmaking and Medical Industries
• Fully Functional and Production Ready
• Machine Inspection and Test Run Available Before Purchase |
