From Inspection to Installation: TOS SUS-63 Universal Heavy-Duty Lathe 8 Meters Swing 26 inch – Year 1991
| TOS SUS-63 Universal Heavy-Duty Lathe 8 Meters Swing 26″ – Year 1991 | ||
|---|---|---|
| Specification | Metric | Imperial |
| Manufacturer | TOS | TOS |
| Model | SUS-63 | SUS-63 |
| Machine Type | Universal Heavy-Duty Lathe | Universal Heavy-Duty Lathe |
| Year of Manufacture | 1991 | 1991 |
| Serial Number | Contact to us | Contact to us |
| Condition | Inspect Under Power | Inspect Under Power |
| Swing Over Bed | 655 mm | 25.8 in |
| Swing Over Cross Slide | 391 mm | 15.4 in |
| Distance Between Centers | 8,128 mm | 320 in |
| Spindle Bore | 84 mm | 3.3 in |
| Bed Width | 584 mm | 23 in |
| Spindle Speed Range | 9 – 1,120 RPM (22 Speeds) | 9 – 1,120 RPM (22 Speeds) |
| Longitudinal Feed Range | 0.051 – 3.05 mm/rev | 0.002 – 0.120 IPR |
| Longitudinal Feed Range (Countershaft) | 0.102 – 23.88 mm/rev | 0.004 – 0.940 IPR |
| Cross Feed | Half of Longitudinal Feed Setting | Half of Longitudinal Feed Setting |
| Inch Thread Range | 0.25 – 56 TPI | 0.25 – 56 TPI |
| Metric Thread Range | 0.5 – 224 mm | 0.020 – 8.82 in Pitch |
| Tailstock Quill Travel | 279 mm | 11 in |
| Tailstock Taper | MT6 | MT6 |
| Main Motor Power | 18.5 kW | 25 HP |
| Machine Weight | 11,794 kg | 26,000 lbs |
| Machine Dimensions (L × W × H) | 9,906 × 1,880 × 1,524 mm | 390 × 74 × 60 in |
| Threading Capability | Inch & Metric Threading | Inch & Metric Threading |
| Digital Readout | SONY 2-Axis DRO | SONY 2-Axis DRO |
| Taper Turning Attachment | Included | Included |
| Rapid Traverse | Included | Included |

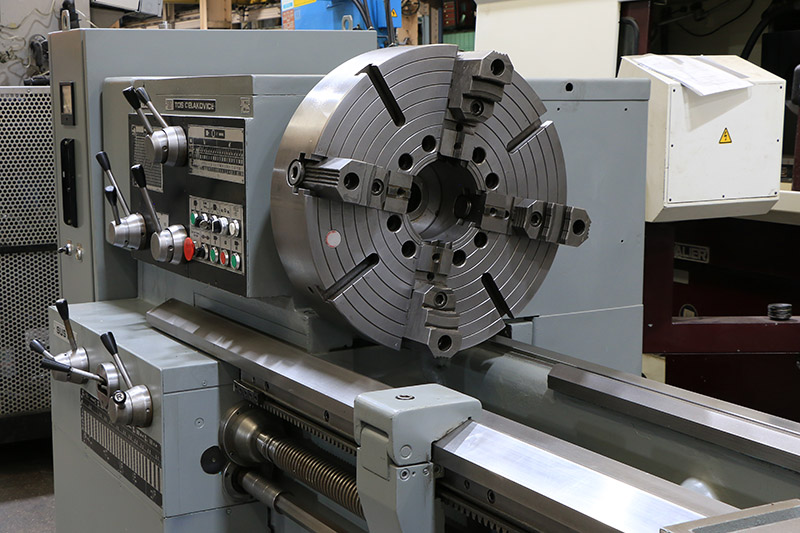

| 4-Jaw Chuck | 597 mm | 23.5 in |
| Tool Post | 4-Way Turret Toolpost | 4-Way Turret Toolpost |
| Large Steady Rest | 381 mm Roller Type | 15 in Roller Type |
| Small Steady Rest | 216 mm Roller Type | 8.5 in Roller Type |
| Coolant System | Included | Included |
| Bed Construction | Hardened & Ground Bed Ways | Hardened & Ground Bed Ways |
| Additional Features | • Universal Heavy-Duty Lathe • 8 Meter Distance Between Centers • 655 mm Swing Over Bed • 84 mm Large Spindle Bore • 22-Speed Gearbox (9–1,120 RPM) • Inch & Metric Thread Cutting • SONY 2-Axis Digital Readout • Taper Turning Attachment • Rapid Traverse • 597 mm (23.5″) 4-Jaw Chuck • 4-Way Turret Toolpost • Two Roller-Type Steady Rests (381 mm & 216 mm) • Coolant System • Hardened & Precision Ground Bed Ways • 25 HP Main Motor • Machine Can Be Inspected Under Power | |
