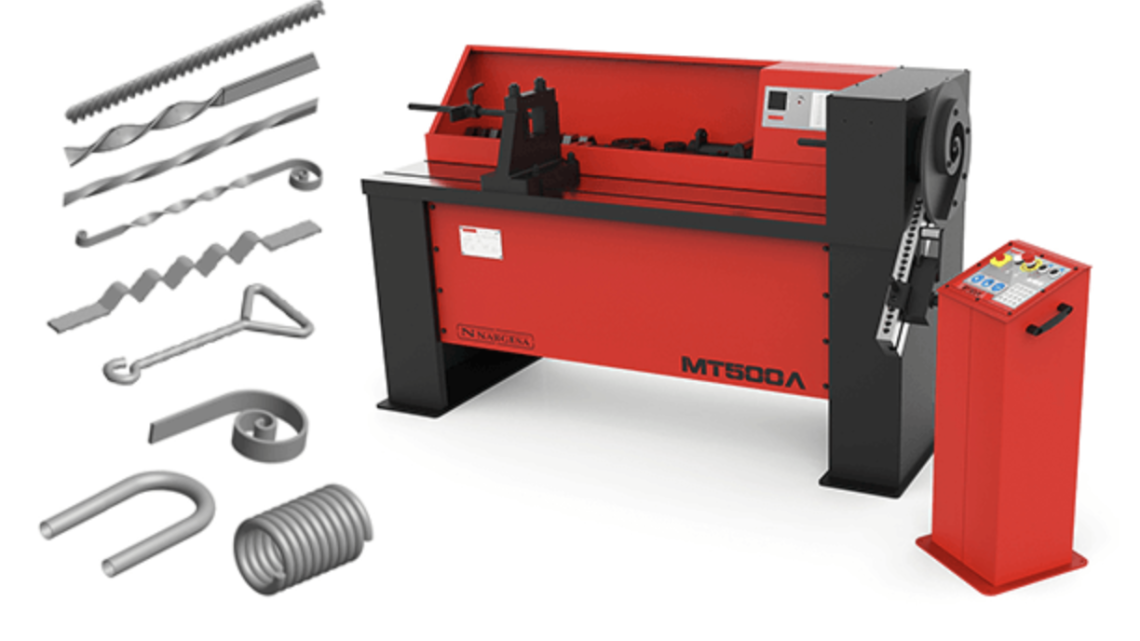

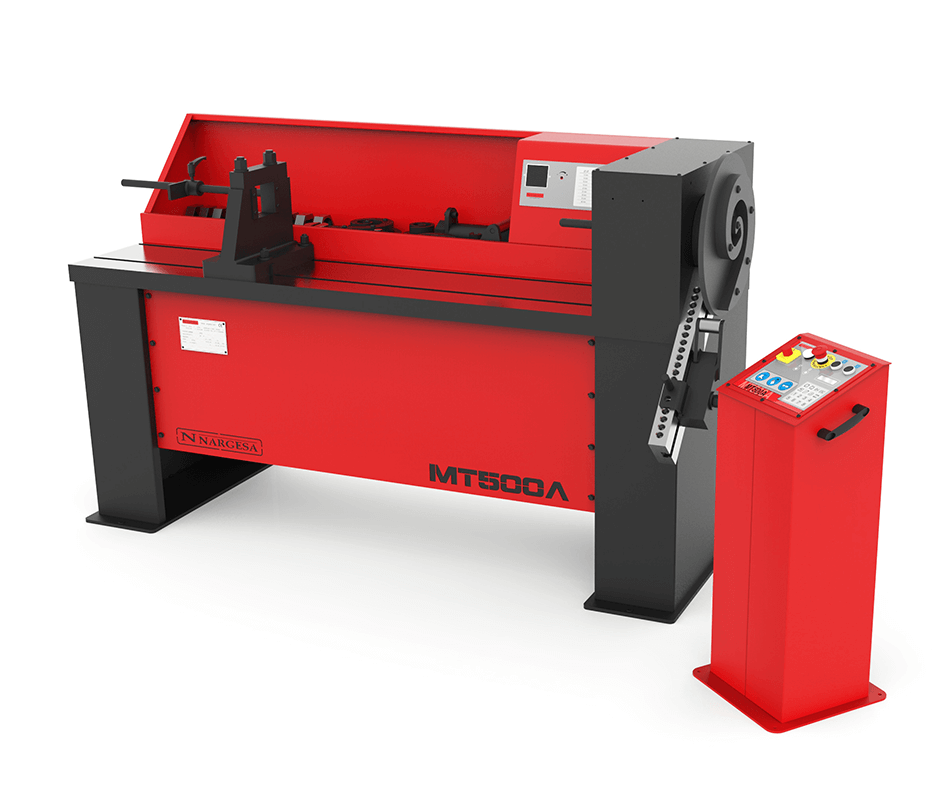

Available now : used NARGESA MT-500A Twisting Iron Scroll Bending Machine – Year 2017 made in Spain
| NARGESA MT-500A Twisting Iron Machine – Year 2017 | |||
|---|---|---|---|
| Specification | Metric | Imperial | Description |
| Manufacturer | NARGESA | NARGESA | Spanish manufacturer of forging and ornamental metalworking machinery. |
| Model | MT-500A | MT-500A | Twisting and bending machine for ornamental ironwork. |
| Year of Manufacture | 2017 | 2017 | Production year. |
| Machine Type | Twisting & Bending Machine | Twisting & Bending Machine | Designed for cold working of ornamental iron and steel components. |
| Working Method | Cold Twisting & Cold Bending | Cold Twisting & Cold Bending | No heating required during processing. |
| Production Capacity | Small, Medium & Large Production | Small, Medium & Large Production | Suitable for both custom fabrication and serial production. |
| Maximum Twisting Capacity | 40 mm | 1-3/8 in | Maximum solid bar twisting capacity. |
| Maximum Bending Capacity | 25 mm | 1 in | Maximum round bar bending capacity. |
| Maximum Flat Bar Capacity | 50 × 10 mm | 2 × 3/8 in | Maximum flat bar, handrail or scroll material size. |
| Maximum Continuous Twisting Length | 1,620 mm | 63.8 in | Maximum uninterrupted twisting length. |
| Motor Power | 4 kW | 5.5 HP | Main drive motor. |
| Rotation Speed | 0 – 10 rpm | 0 – 10 rpm | Infinitely adjustable twisting speed. |
| Power Supply | 230 / 400 V, 3-Phase | 230 / 400 V, 3-Phase | Industrial three-phase electrical supply. |
| CNC Programmer | Included | Included | CNC programmer for high-volume repetitive production. |
| Working Stations | 2 Stations | 2 Stations | Separate stations for twisting and bending operations. |
| Bending Capability | No Neck Limitation | No Neck Limitation | Allows bending of long and oversized workpieces. |
| Drive System | Gear Reducer with Hardened Flat Pinions | Gear Reducer with Hardened Flat Pinions | Heavy-duty transmission requiring minimal maintenance. |
| Standard Tooling | Included | Included | Supplied with tooling for twisting, scrolls, hooks, chains and other ornamental components. |
| Optional Tooling | Available | Available | Optional tooling includes Belly Top Railings, British Rail, Flat Bent Rings, Ornamental Baskets and custom tooling. |
| Custom Design Capability | Supported | Supported | Custom tooling and forming discs can be manufactured for unique designs. |
| Applications | Twisting, Scrolls, Hooks, Chains, Decorative Ironwork | Twisting, Scrolls, Hooks, Chains, Decorative Ironwork | Ideal for manufacturing decorative forged metal components. |
| Typical Industries | Blacksmith Workshops, Metal Fabrication, Architectural Ironwork | Blacksmith Workshops, Metal Fabrication, Architectural Ironwork | Widely used for gates, railings, fences, balconies and decorative steel structures. |
| Machine Mobility | Palletized Lower Bench | Palletized Lower Bench | Allows easy movement within the workshop using pallet handling equipment. |
| Delivery Condition | Fully Assembled | Fully Assembled | Delivered ready for operation. |
| Standard Packaging | ISPM 15 Fumigated Wooden Pallet & Triple-Layer Cardboard | ISPM 15 Fumigated Wooden Pallet & Triple-Layer Cardboard | Suitable for international sea freight transportation. |
| Optional Packaging | Full ISPM 15 Wooden Crate | Full ISPM 15 Wooden Crate | Heavy-duty export packaging available upon request. |
- Machine Condition: Clean, low-hour machine.
- Previous Use: Never used for mass production; utilized only for short-term operator training.
- Included Tooling: Complete original tooling set for twisting and scrolling operations included.
- Additional Accessory: Basket forging attachment included.
- Programming Capability: Programmable control allows automatic duplication of processes across multiple workpieces, ensuring high repeatability.
- Material Compatibility: Designed specifically for cold steel forming.
- Training Resources: NARGESA provides comprehensive instructional videos covering machine operation, tooling, and production techniques.
- Cart Included: The trolley/cart shown supporting the basket forging accessory is not included in the sale.
- Collection: Local pickup only.
- Freight Preparation: The seller can prepare the machine for freight shipment and coordinate with the buyer’s selected freight company.
