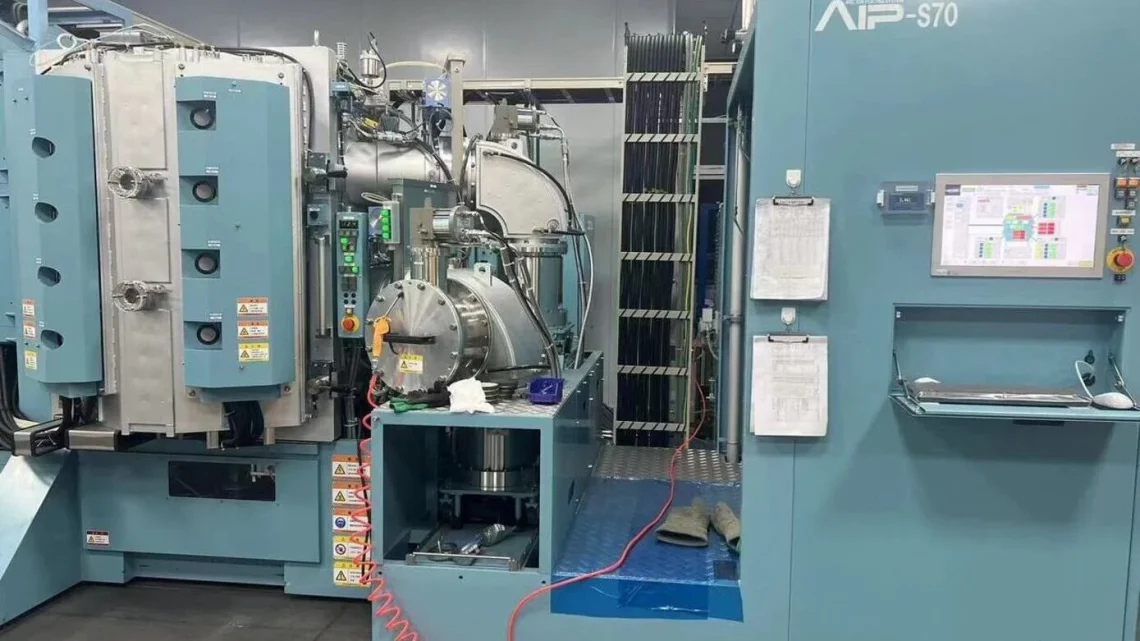

| KOBELCO AIP-S70 PVD Coating System – Year 2019 |
| Specification |
Metric |
Imperial |
Description |
| Manufacturer |
KOBELCO (Kobe Steel, Japan) |
KOBELCO (Kobe Steel, Japan) |
Japanese manufacturer specializing in advanced PVD coating technologies. |
| Model |
AIP-S70 |
AIP-S70 |
Industrial Arc Ion Plating (AIP) PVD coating system. |
| Year of Manufacture |
2019 |
2019 |
Production year. |
| Equipment Type |
PVD Arc Ion Plating Coating System |
PVD Arc Ion Plating Coating System |
Industrial Physical Vapor Deposition coating equipment. |
| Condition |
Excellent |
Excellent |
Well maintained and currently in production. |
| Status |
In Production |
In Production |
The machine is currently operational. |
| Compliance |
Complies with Local Standards |
Complies with Local Standards |
Machine conforms to applicable local regulations. |
| Location |
Contact to us |
Contact to us |
Current machine location. |
| Coating Technology |
Arc Ion Plating (AIP) |
Arc Ion Plating (AIP) |
High-density, high-adhesion PVD coating technology developed by KOBELCO. |
| Production Configuration |
Large-Scale Production |
Large-Scale Production |
Designed for continuous industrial coating operations. |

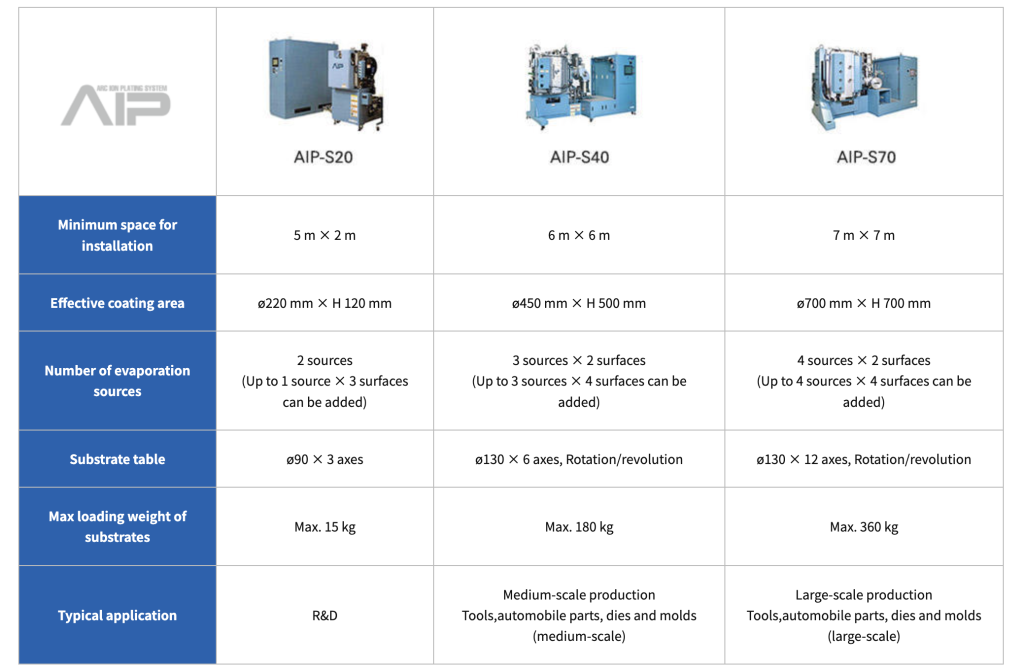

| Effective Coating Area |
Ø700 × H700 mm |
Ø27.6 × H27.6 in |
Large coating chamber for mass production. |
| Maximum Substrate Load |
360 kg |
794 lbs |
Maximum allowable load inside the coating chamber. |
| Evaporation Configuration |
Multi-Source Arc Evaporation |
Multi-Source Arc Evaporation |
Multiple cathode configuration for increased productivity and coating uniformity. |
| Supported Coatings |
TiN, TiAlN, AlTiN, CrN & Other Hard Coatings |
TiN, TiAlN, AlTiN, CrN & Other Hard Coatings |
Suitable for a wide range of wear-resistant PVD coatings. |
| Coating Quality |
High Adhesion & Dense Film Structure |
High Adhesion & Dense Film Structure |
Produces durable coatings with excellent wear resistance. |
| Engine Power |
200 kW |
268 HP |
Total installed electrical power. |
| Overall Dimensions (L × W × H) |
7,000 × 7,000 × 3,000 mm |
275.6 × 275.6 × 118.1 in |
Approximate installation dimensions. |
| Machine Weight |
25,000 kg |
55,116 lbs |
Approximate total machine weight. |
| Operating Hours |
Not Specified |
Not Specified |
Operating hours not provided. |
| Hours Under Power |
Not Specified |
Not Specified |
Powered-on hours not provided. |
| Maintenance |
Low Maintenance Design |
Low Maintenance Design |
Designed for reliable operation with simplified servicing. |
| Maintenance Access |
Easy Access Design |
Easy Access Design |
Facilitates inspection and routine maintenance. |
| Typical Applications |
Cutting Tools, Dies, Molds, Automotive Components, Wear Parts |
Cutting Tools, Dies, Molds, Automotive Components, Wear Parts |
Suitable for industrial PVD coating of precision components. |
| Typical Workpieces |
Carbide Inserts, End Mills, Drills, Reamers, Hobs, Dies & Molds |
Carbide Inserts, End Mills, Drills, Reamers, Hobs, Dies & Molds |
Ideal for coating cutting tools and precision tooling. |
| Industry Applications |
Tool Manufacturing, Precision Engineering, Automotive |
Tool Manufacturing, Precision Engineering, Automotive |
Designed for demanding industrial coating applications. |
| Reason for Sale |
Production Restructuring |
Production Restructuring |
Machine is available due to changes in production operations. |
| Inspection |
Available Upon Request |
Available Upon Request |
Machine can be inspected before purchase. |
| Documentation |
Available |
Available |
Additional photographs and technical documentation are available upon request. |
| Loading & Export Support |
Available |
Available |
Loading assistance and export arrangements can be provided. |
| Sales Options |
Complete or Partial Package |
Complete or Partial Package |
Partial package sales may be considered. |
