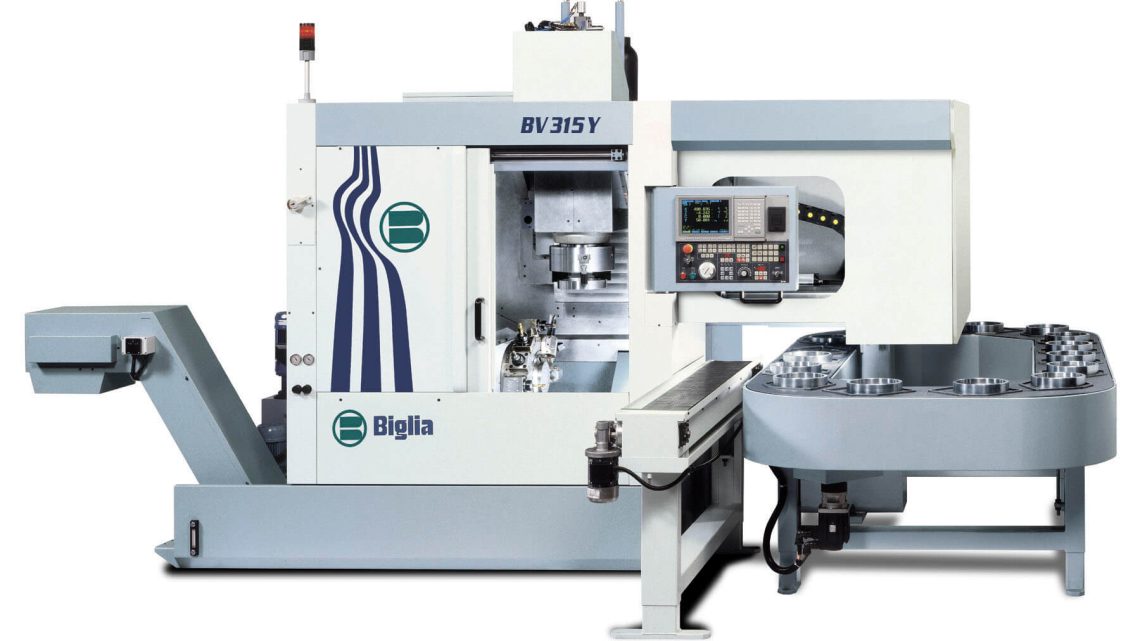

Available now : used BIGLIA BV 315Y CNC Vertical Lathe C+Y Axis – Year 2007 made in Italy
| BIGLIA BV 315Y CNC Vertical Lathe C+Y Axis – Year 2007 | |||
|---|---|---|---|
| Specification | Metric | Imperial | Description |
| Manufacturer | BIGLIA | BIGLIA | Italian manufacturer of high-precision CNC turning machines. |
| Model | BV315Y | BV315Y | CNC Vertical Turning Center with C and Y axes. |
| Machine Number | contact to us | contact to us | Machine identification number. |
| Year of Manufacture | 2007 | 2007 | Production year. |
| Condition | Good (Used) | Good (Used) | Machine is reported to be fully functional. |
| Operating Hours | 7,200 h | 7,200 h | Total recorded operating hours. |
| Machine Type | CNC Vertical Lathe | CNC Vertical Lathe | Vertical turning center with C-axis and Y-axis machining capability. |
| Maximum Turning Diameter | 300 mm | 11.81 in | Maximum workpiece turning diameter. |
| Turning Diameter Over Cross Slide | 315 mm | 12.40 in | Maximum swing over the cross slide. |
| Maximum Turning Length | 200 mm | 7.87 in | Maximum machining length. |
| Spindle Bore | 250 mm | 9.84 in | Maximum spindle through-hole diameter. |
| Maximum Spindle Speed | 4,000 rpm | 4,000 rpm | Maximum spindle rotational speed. |
| Spindle Motor Power | 18 kW | 24.1 HP | Main spindle motor output. |
| Y-Axis Travel | 150 mm | 5.91 in | Y-axis travel for off-center machining. |
| C-Axis | Included | Included | Programmable C-axis for milling and indexing operations. |
| CNC Control | CNC | CNC | Computer numerical control system. |
| Input Power | Three-Phase | Three-Phase | Industrial three-phase electrical supply. |
| Driven Tool Stations | 12 Positions | 12 Positions | Powered tooling turret with 12 driven tool stations. |
| Machine Height | 2,680 mm | 105.5 in | Overall machine height. |
| Machine Length | 4,400 mm | 173.2 in | Overall machine length. |
| Documentation | Included | Included | Operating manual and machine documentation supplied. |
| Production Application | Medium & High-Volume Production | Medium & High-Volume Production | Designed for economical production batches from approximately 50 parts to several hundred parts. |
| Workholding System | Carousel Type | Carousel Type | Simple carousel loading system enables efficient and repeatable production. |
| Typical Applications | Automotive, Hydraulic Components, Bearing Rings, Flanges, Precision Engineering | Automotive, Hydraulic Components, Bearing Rings, Flanges, Precision Engineering | Suitable for high-precision vertical turning, drilling and milling of rotational components. |
