Available now : used Hwacheon M1-5AX CNC High Precision 5-Axis Vertical Machining Center + 40AWC – Year 2022 made in South of Korea

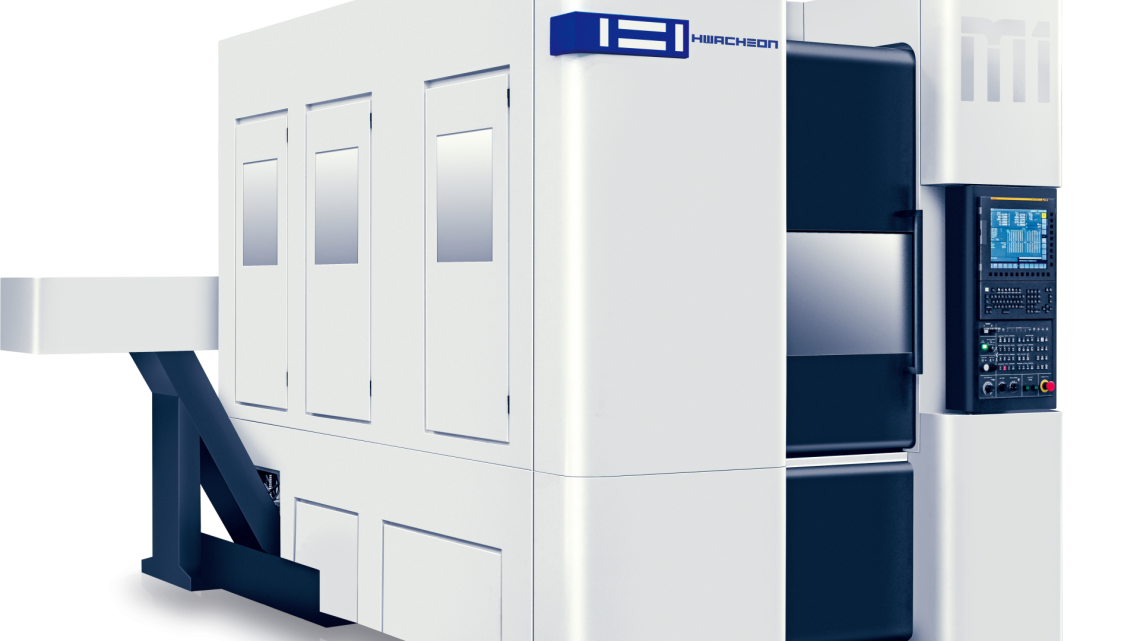

Hwacheon M1-5AX CNC High Precision 5-Axis Vertical Machining Center + 40AWC – Year 2022
Specification	Metric	Imperial	Description
Manufacturer	Hwacheon	Hwacheon	South Korean manufacturer of high-precision CNC machine tools.
Model	M1-5AX + 40AWC	M1-5AX + 40AWC	High-precision 5-axis vertical machining center with automatic work changer. :contentReference[oaicite:0]{index=0}
Year of Manufacture	2022	2022	Production year.
Machine Type	5-Axis CNC Vertical Machining Center	5-Axis CNC Vertical Machining Center	Designed for high-speed, high-precision machining of complex components. :contentReference[oaicite:1]{index=1}
CNC Control	FANUC 31i-B5	FANUC 31i-B5	Advanced 5-axis CNC control with simultaneous machining capability. :contentReference[oaicite:2]{index=2}
Number of Controlled Axes	5 Axes	5 Axes	Simultaneous 5-axis machining.
X-Axis Travel	750 mm	29.5 in	Maximum X-axis travel. :contentReference[oaicite:3]{index=3}
Y-Axis Travel	500 mm	19.7 in	Maximum Y-axis travel. :contentReference[oaicite:4]{index=4}
Z-Axis Travel	450 mm	17.7 in	Maximum Z-axis travel. :contentReference[oaicite:5]{index=5}
B-Axis Tilt	-30° to +110°	-30° to +110°	Tilting rotary axis for full 5-axis machining. :contentReference[oaicite:6]{index=6}
C-Axis Rotation	360°	360°	Continuous rotary table movement. :contentReference[oaicite:7]{index=7}
Rotary Table Diameter	Ø300 mm	Ø11.8 in	High-precision rotary table. :contentReference[oaicite:8]{index=8}
Maximum Table Load	200 kg	441 lbs	Maximum allowable workpiece weight. :contentReference[oaicite:9]{index=9}
Spindle Taper	HSK63	HSK63	High-speed HSK spindle interface.
Maximum Spindle Speed	20,000 rpm	20,000 rpm	Built-in high-speed spindle. :contentReference[oaicite:10]{index=10}
Spindle Motor Power	37 / 18.5 kW	49.6 / 24.8 HP	Built-in spindle motor for high-speed machining. :contentReference[oaicite:11]{index=11}
Automatic Tool Changer	60 Tools	60 Tools	High-capacity random automatic tool changer.
Automatic Work Changer	40 Stations (40AWC)	40 Stations (40AWC)	Integrated automatic workpiece changing system for unmanned production.
Through-Spindle Coolant	Included	Included	Coolant supplied directly through the spindle for improved tool life.
Tool Measurement	BLUM Laser Tool Measurement	BLUM Laser Tool Measurement	Automatic tool length and diameter measurement.
Workpiece Probe	Renishaw OMP60	Renishaw OMP60	Automatic workpiece probing and setup measurement.
Filtration System	Paper Filter System	Paper Filter System	High-efficiency coolant filtration.
Rapid Traverse (X/Y/Z)	36 m/min	1,417 ipm	High-speed axis positioning. :contentReference[oaicite:12]{index=12}
Machine Weight	9,500 kg	20,944 lbs	Approximate machine weight. :contentReference[oaicite:13]{index=13}
Machine Condition	Very Low Usage	Very Low Usage	Reported to have minimal operating hours.
Typical Applications	Aerospace, Medical, Mold & Die, Precision Engineering, Automotive	Aerospace, Medical, Mold & Die, Precision Engineering, Automotive	Ideal for manufacturing complex high-precision components in a single setup. :contentReference[oaicite:14]{index=14}

Machine Specification

※ CTS : Coolant Through Spindle

Item		Hwacheon M1-5AX
		20K	32K
		Travel
X-axis Stroke	mm	750	750
Y-axis Stroke	mm	500	500
Z-axis Stroke	mm	450	450
B-axis Tilting Angle	deg	-30 ~ +110	-30 ~ +110
C-axis Rotation Angle	deg	360	360
Distance from Table Surface to Spindle Gauge Plane	mm	80 ~ 530	80 ~ 530
Distance from Z-axis guide Top Surface to the center of the spindle	mm	183	183
Table
Working Surface	mm	Ø300	Ø300
Table Loading Capacity	kg	200	200
Table Surface Configuration (T slots W x P – No. of slots)	mm	14 x 80 / 8ea	14 x 80 / 8ea
Spindle
Max Spindle Speed	rpm	20,000	32,000
Spindle Motor	kW	37 / 18.5	18.5 / 13
Type of Spindle Taper Hole	–	BBT-40	HSK-E40
Spindle Bearing Inner Diameter	mm	Ø70	Ø45
Type of Spindle	–	Built-in Motor	Built-in Motor
Method of Spindle Lubrication	–	Oil-jet	Oil-jet
Method of Spindle Cooling	–	Jacket Cooling (Oil Cooler)	Jacket Cooling (Oil Cooler)
Feedrate
Rapid Traverse (X / Y / Z)	m/min	36 / 36 / 36	36 / 36 / 36
Rapid Traverse (B / C)	rpm	25 / 40	25 / 40
Motor
Servo Motor (X / Y / Z)	kW	4.0 / 4.0 / 4.0	4.0 / 4.0 / 4.0
Servo Motor (B / C)	kW	2.7 / 2.5	2.7 / 2.5
Coolant Motor (Spindle / Chip Flushing)	kW	0.75 / 0.6	0.75 / 0.6
Spindle Cooler (50 / 60 Hz)	kW	5.0 / 5.6	5.0 / 5.6
ATC
Type of Tool Shank	–	BBT-40 (Opt.: CAT-40)	HSK-E40
Type of Pull Stud	–	MAS P40T-1 (45˚)	MAS P40T-1 (45˚)
Tool Storage Capacity	ea	30 (Opt.: 40, 60)	30 (Opt.: 40, 60)
Max. Tool Diameter (with / without Adjacent Tools)	mm	Ø75 / Ø150	Ø75 / Ø150
Max. Tool Length	mm	300	300
Max. Tool Weight	Kg	8	8
Method of Tool Selection	–	Memory Random	Memory Random
Power Sources
Electric Power Supply	kVA	65	65
Compressed Air Supply (Pressure x Consumption)	–	0.5~0.7MPa x 1,100Nℓ/min	0.5~0.7MPa x 1,100Nℓ/min
Tank Capacity
Spindle Coolant / Lubrication	ℓ	40 / 12	40 / 12
Coolant	ℓ	350	350
Machine Size
Height (Z-axis Fixing / Disassemble the z-axis servo motor)	mm	3,161(2,939 / 2,872)	3,161(2,939 / 2,872)
Floor Space (L x W)	mm	3,341 x 4,515	3,341 x 4,515
Machine Size (L x W) Standard	mm	2,340 x 3,132	2,340 x 3,132
Weight	Kg	9,500	9,500
NC System	–	HARMONY (Fanuc 31i-B5 Plus)	HARMONY (Fanuc 31i-B5 Plus)
