Available now : used HYUNDAI WIA SE 2200L CNC Lathe – Year 2021 For Sale made in South of Korea

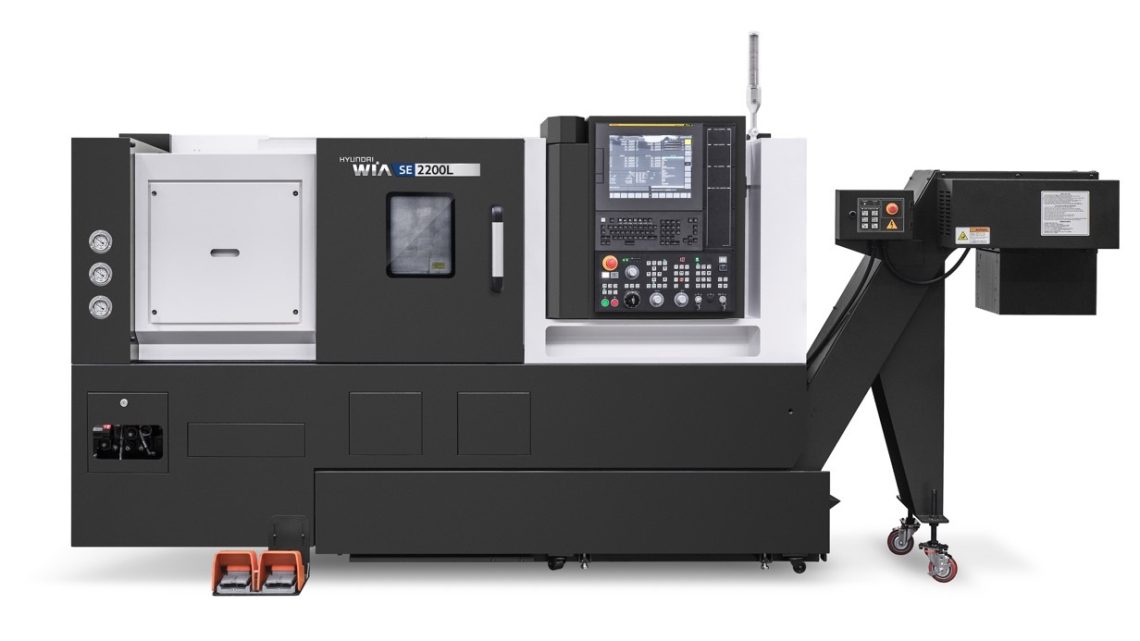

| HYUNDAI WIA SE 2200L CNC Lathe – Year 2021 | |||
|---|---|---|---|
| Specification | Metric | Imperial | Description |
| Manufacturer | HYUNDAI WIA | HYUNDAI WIA | South Korean manufacturer of high-performance CNC machine tools. |
| Model | SE 2200L | SE 2200L | High-precision CNC turning center. |
| Year of Manufacture | 2021 | 2021 | Production year. |
| Condition | Used | Used | Machine is in used condition. |
| Machine Type | CNC Lathe | CNC Lathe | Horizontal CNC turning center for precision machining. |
| CNC Control | FANUC i Series Smart Plus | FANUC i Series Smart Plus | Advanced FANUC CNC control system. |
| Maximum Swing Over Bed | Ø600 mm | Ø23.62 in | Maximum swing diameter over the machine bed. |
| Maximum Swing Over Carriage | Ø390 mm | Ø15.35 in | Maximum swing over the carriage. |
| Maximum Turning Diameter | Ø350 mm | Ø13.78 in | Maximum workpiece turning diameter. |
| Maximum Turning Length | 558 mm | 21.97 in | Maximum machining length. |
| Maximum Bar Capacity | Ø65 mm | Ø2.56 in | Maximum bar diameter through the spindle. |
| X-Axis Travel | 210 mm | 8.27 in | Maximum X-axis travel. |
| Z-Axis Travel | 560 mm | 22.05 in | Maximum Z-axis travel. |
| Spindle Chuck Diameter | Ø210 mm | Ø8.27 in | Standard chuck size. |
| Maximum Spindle Speed | 4,500 rpm | 4,500 rpm | Maximum spindle rotational speed. |
| Spindle Nose | ASA-6 | ASA-6 | Standard spindle nose configuration. |
| Spindle Motor Power (Continuous / 30 min) | 11 / 15 kW | 14.8 / 20.1 HP | Main spindle motor output. |
| Turret Capacity | 12 Stations | 12 Stations | Twelve-position automatic tool turret. |
| Turning Tool Size | 25 × 25 mm | 0.98 × 0.98 in | Maximum turning tool shank size. |
| Boring Bar Capacity | Ø40 mm | Ø1.57 in | Maximum boring bar diameter. |
| X-Axis Rapid Traverse | 30,000 mm/min (30 m/min) | 1,181 IPM | Rapid positioning speed of the X-axis. |
| Z-Axis Rapid Traverse | 36,000 mm/min (36 m/min) | 1,417 IPM | Rapid positioning speed of the Z-axis. |
| Tailstock Quill Diameter | Ø56 mm | Ø2.20 in | Tailstock quill diameter. |
| Tailstock Taper | MT-4 | MT-4 | Morse Taper No. 4 tailstock center. |
| Tailstock Body Travel | 580 mm | 22.83 in | Maximum tailstock movement along the bed. |
| Typical Applications | Automotive, Aerospace, Hydraulic Components, General Precision Engineering | Automotive, Aerospace, Hydraulic Components, General Precision Engineering | Ideal for high-precision turning, boring, drilling and threading of medium-sized components. |
