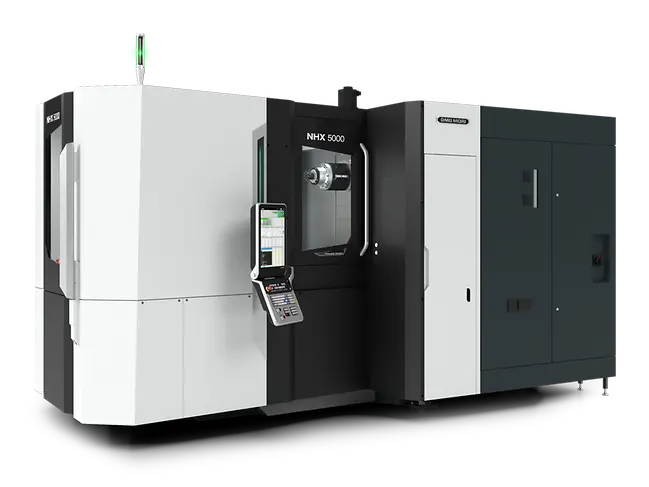

Available now : used DMG Mori NHX5000 CNC 4-Axis Horizontal Machining Center 3rd Generation 20K RPM Spindle 240 ATC – Year 2023
| Item # | DMG Mori NHX5000 CNC 4-Axis Horizontal Machining Center 20K RPM Spindle 240 ATC – Year 2023 | Qty | Unit Total | Total |
|---|---|---|---|---|
| J-A01808 | NHX 5000 <3rd Generation> S/No. NHX5 | 1 | ||
| J-007256 | Fanuc F31iB with CELOS | 1 | Included | Included |
| J-003261 | CELOS – ERGOline Touch | 1 | Included | Included |
| J-019094 | High-speed spindle 20,000 min-1, 37/26/18.5 kW | 1 | Included | Included |
| J-019116 | Spindle Taper HSK-A63 | 1 | Included | Included |
| J-007251 | Preparation for Center Through-spindle coolant system | 1 | Included | Included |
| J-019008 | Full 4th axis rotary table (STD) | 1 | Included | Included |
| J-019093 | Without Auto-Coupler Hydraulic Fixture Interface | 1 | Included | Included |
| J-009825 | Magazine Operation Panel (SK-OP) | 1 | Included | Included |
| J-019111 | Tool storage capacity 240 tools (HSK-A63) | 1 | Included | Included |
| J-G00428 | Usable Coolant Type: Water-Soluble Coolant | 1 | Included | Included |
| J-008057 | Chip conveyor outside machine (rear discharge, drum filter type) (STD) | 1 | Included | Included |
| J-019142 | Through-Spindle Coolant System with Coolant Cooler (Automatic Variable Volume, 7.0 MPa, Cyclonic Filtration + Sludge Tank, LNS ChipBlaster smartFLOW 30) (Separate Type) (SK-OP) | 1 | Included | Included |
| J-014459 | Without Coolant Chiller | 1 | Included | Included |
| J-019184 | Mist collector zeroFOG #2 (Built-in) (SK-OP) | 1 | Included | Included |
| J-019010 | In-machine measuring system (spindle) optical signal transmission type touch sensor (RENISHAW OMP60) + workpiece setter function (STD) | 1 | Included | Included |
| J-008107 | In-machine measuring system (table) touch sensor (Magnescale) + tool setter function (tool length + diameter) | 1 | Included | Included |
| J-004166 | Signal lamp 4 colors (Red, yellow, green, blue) | 1 | Included | Included |
| J-015384 | Interface for EtherNet/IP (SK-OP) | 1 | Included | Included |
| J-024527 | RSS5 | 1 | Included | Included |
| J-001247 | Dry anchor (SK-OP) | 1 | Included | Included |
| J-G00951 | Voltage of Customer Factory 220 V | 1 | Included | Included |
| J-G00961 | Frequency 60 Hz | 1 | Included | Included |
| DMG Mori NHX5000 CNC 4-Axis Horizontal Machining Center 3rd Generation 20K RPM Spindle 240 ATC – Year 2023 | ||
|---|---|---|
| Specification | Metric | Imperial |
| Manufacturer | Mori Seiki | |
| Model | NHX5000 | |
| Machine Type | CNC 4-Axis Horizontal Machining Center | |
| Year of Manufacture | 2023 | |
| CNC Control | Fanuc 31i-B5 | |
| X-Axis Travel | 711 mm | 28 in |
| Y-Axis Travel | 711 mm | 28 in |
| Z-Axis Travel | 864 mm | 34 in |
| Maximum Spindle Speed | 20,000 rpm | 20,000 rpm |
| Tool Magazine Capacity (ATC) | 240 tools | 240 tools |
| Rapid Feed Rate | 70,000 mm/min | 2,756 in/min |
| Maximum Acceleration | 1.2 g | 1.2 g |
| Spindle Type | speedMASTER High-Speed Spindle | |
| Spindle Voltage | 400 V | 400 V |
| Servo Optimization | Servo Sense for Workpiece (Z / B Axis) | |
| Machine Bed | Heavy-duty high-rigidity bed with 3-point support structure | |
| X-Axis Guideway Design | Stepped high-rigidity guideways | |
| Structural Design | Optimized base structure using advanced structural analysis technology | |
| Machine Covers | Stainless steel covers (Standard) | |

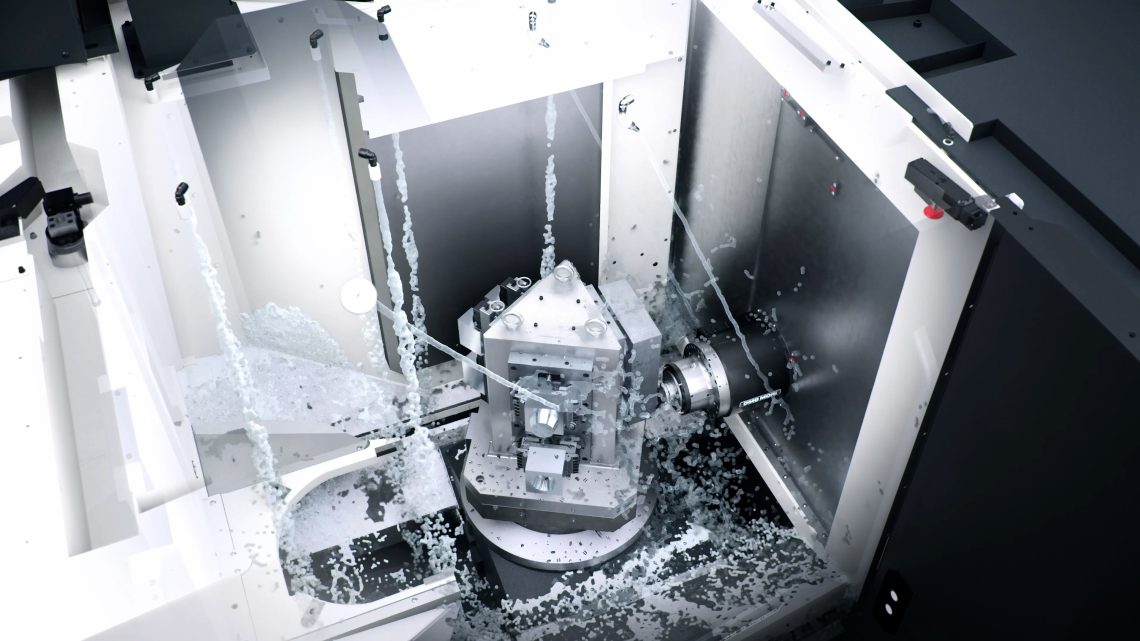

| Ceiling Shower Coolant | Motor-driven nozzle (Optional) | |
| Chip Conveyor | High-capacity conveyor for reliable chip evacuation | |
| Automation Preparation | Optional hydraulic and pneumatic interfaces | |
| Tool Measurement | Optional Tool Visualizer with automated tool measurement | |
| Automation Compatibility | Supports pallet handling, tool handling and robotic automation systems | |
| Coolant & Chip Management | Designed to minimize chip, coolant and mist related issues | |
| Application | High-speed, high-precision production machining for complex components requiring maximum productivity and automation. | |
