08/06/2026 By CNCBUL UK EDITOR Off

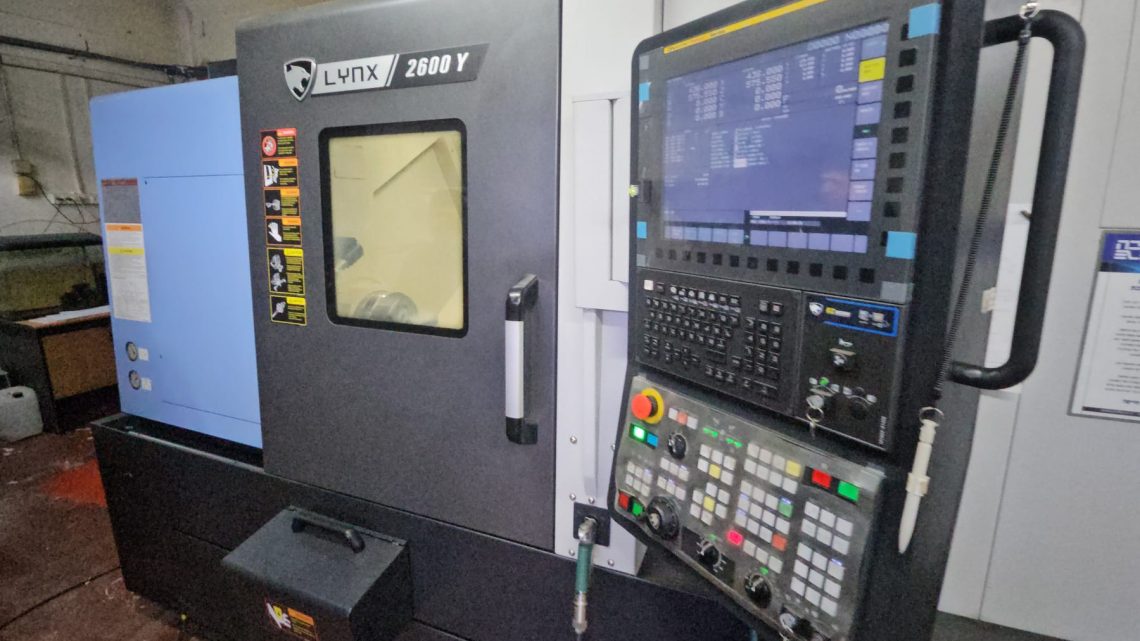

Available Now : used DN SOLUTIONS (DOOSAN) LYNX 2600Y CNC Turning Center – Year 2022- made in South of Korea

DN SOLUTIONS DOOSAN LYNX 2600Y CNC Turning Center – Year 2022

Specification	Lynx 2100LYA	Lynx 2100LSYA	Lynx 2100LYB	Lynx 2100LSYB	Lynx 2600Y	Lynx 2600SY
CAPACITY
Chuck Size	6 inch	6 inch	8 inch	8 inch	10 inch	10 inch
Max. Turning Diameter	300 mm	300 mm	300 mm	300 mm	380 mm	380 mm
Max. Turning Length	510 mm	510 mm	510 mm	510 mm	610 mm	610 mm
TRAVELS
X-Axis Rapid Traverse	30 m/min	30 m/min	30 m/min	30 m/min	30 m/min	30 m/min
Z-Axis Rapid Traverse	36 m/min	36 m/min	36 m/min	36 m/min	30 m/min	30 m/min
X-Axis Travel Distance	205 mm	205 mm	205 mm	205 mm	250 mm	250 mm
Y-Axis Travel Distance	105 mm	105 mm	105 mm	105 mm	105 mm	105 mm
Z-Axis Travel Distance	560 mm	560 mm	560 mm	560 mm	680 mm	680 mm
MAIN SPINDLE
Max. Spindle Speed	6000 r/min	6000 r/min	4500 r/min	4500 r/min	3500 r/min	3500 r/min
Max. Spindle Power	15 kW	15 kW	15 kW	15 kW	18.5 kW	18.5 kW
Max. Spindle Torque	127 N·m	127 N·m	169 N·m	169 N·m	403 N·m	403 N·m
TURRET
Number of Tool Stations	12	12	12	12	12	12
Rotary Tool Speed	6000 r/min	6000 r/min	6000 r/min	6000 r/min	6000 r/min	6000 r/min
DIMENSIONS
Length	2880 mm	2880 mm	2880 mm	2880 mm	3425 mm	3425 mm
Height	1921 mm	1921 mm	1921 mm	1921 mm	2095 mm	2095 mm
Width	1711 mm	1711 mm	1711 mm	1711 mm	1920 mm	1920 mm
Weight	3850 kg	4150 kg	3900 kg	4200 kg	5750 kg	6000 kg
