19/05/2026 By CNCBUL UK EDITOR Off

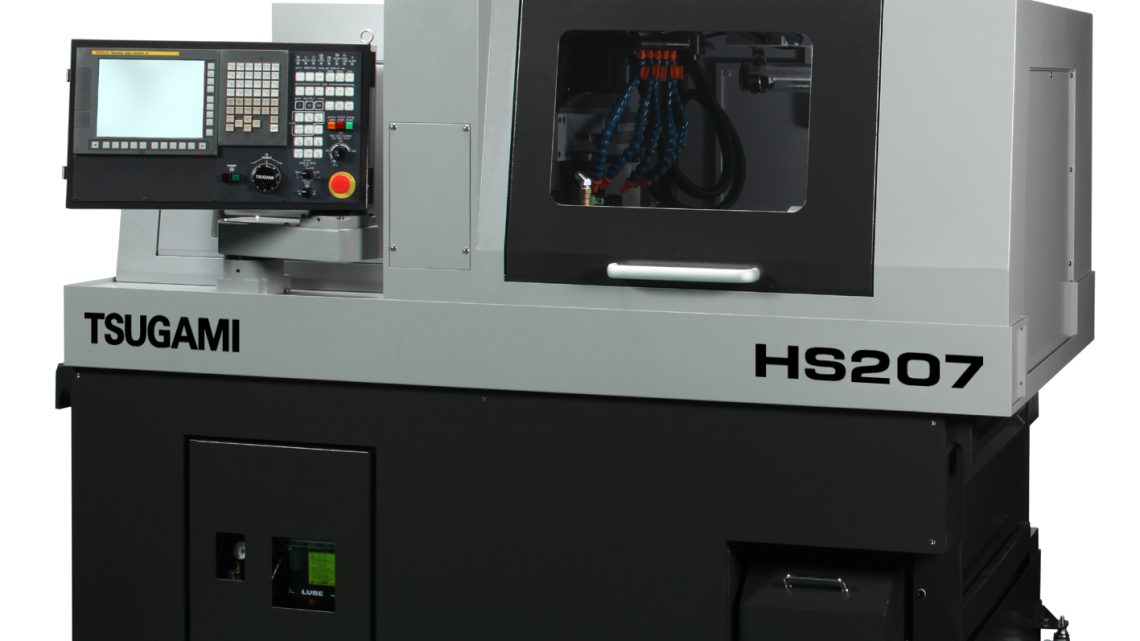

Available now : Tsugami HS207 CNC Swiss Sliding Head Lathe Bar Capacity Ø20mm with FMB turbo 3-36 Bar Feeder – Year 2011

Description	Tsugami HS207	Tsugami HS207-5AX
Max. Machinable Diameter	Ø20 mm / 0.79 in
Main Spindle Speed	200 – 10000 RPM
Back Spindle Speed	200 – 12000 RPM
Total Number of Tools	35
Rapid Traverse Rate	Z1, Z2, X2 : 32 m/min (1260 IPM) X1, Y1 : 24 m/min (945 IPM) Y2 : 15 m/min (591 IPM)
Main Spindle Motor	2.2 / 3.7 kW (2.95 / 4.96 HP)
Machine Dimensions (W × D × H)	2110 × 1200 × 1885 mm / 83.1 × 47.2 × 74.2 in
Machine Weight	3300 kg / 7275 lb

Tsugami HS207 CNC Swiss Sliding Head Lathe with FMB Turbo 3-36 Bar Feeder – Year 2011
Manufacturer	Tsugami
Model	HS207
Year	2011
Machine Type	CNC Swiss Sliding Head Lathe
GENERAL SPECIFICATIONS

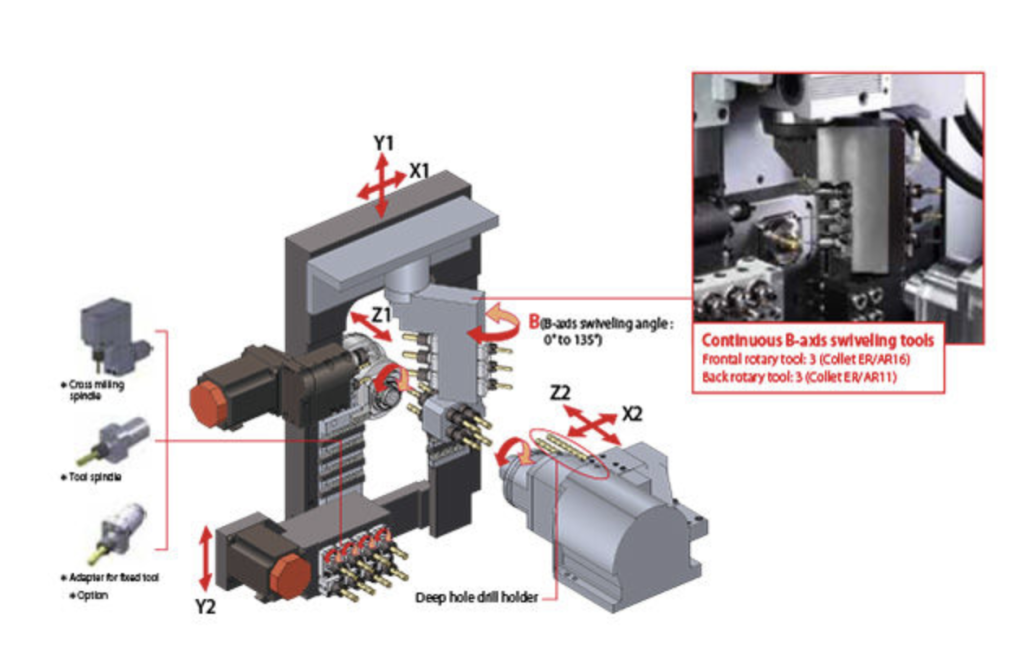

Number of Axes	9 Axis (B-Axis Configuration)
Bar Feeder	FMB Turbo 3-36 Bar Feeder
High Pressure Coolant System	Available – Suitable for Deep Hole Drilling & Precision Machining
Chip Conveyor	Original Tsugami Chip Conveyor
Safety System	Integrated Fire Suppression System
DESCRIPTION
High-performance CNC Swiss-type sliding headstock lathe designed for complex precision turning operations.
Equipped with B-axis capability for advanced multi-axis machining applications.
Ideal for medical, aerospace, automotive, and high-precision component manufacturing.
