| Tsugami B0326E-III CNC Swiss Lathe Ø32 mm – Technical Features |
| Machine Overview |
One of the biggest advantages of Tsugami’s Ø32 mm capacity machines is the Direct-Drive Guide Bush structure.
Even with this advanced guide bushing system, the machine can also operate without a guide bush when required.
Switching between both systems is extremely fast and provides significant advantages, especially when machining expensive round or non-round materials, by minimizing remnant material length at the end of the bar. |
| Tooling Flexibility |

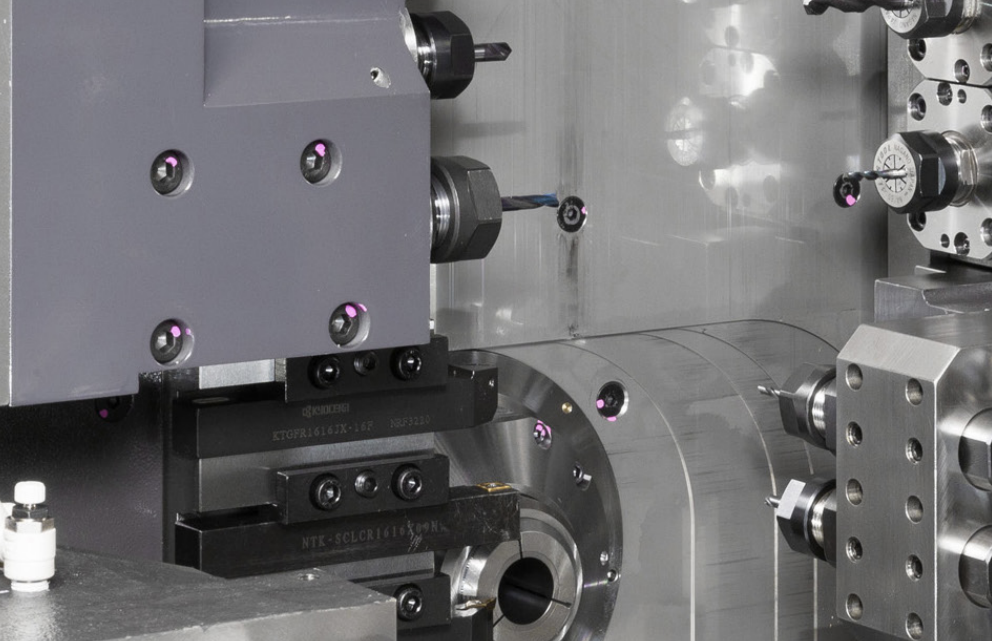

The modular live tooling system allows the use of angular tools, whirling units, polygon machining tools, hobbing units, and similar tooling holders. |
| CNC Control |
Fanuc 32i-B CNC Control |
| Sub Spindle Tooling |
Up to 8 live tool positions on the sub spindle side. |
| Ergonomic Machine Design |
Ergonomic machine interior structure reduces setup and workpiece adjustment times. |
| Maximum Bar Diameter |
32 mm
1.26″ |
| Number of Axes |
8 |
| Guide Bushing Operation |
Yes |
| Guide Bushingless Operation |
Yes |
| Maximum Machining Length |
With Guide Bushing: 330 mm / 12.99″
Without Guide Bushing: 70 mm / 2.76″ |
| Maximum Number of Tools |
31 / 43 |
| Number of Live Tools |
4 + 3 + 8 |
| Main Spindle Speed |
200 – 8,000 RPM |
| Sub Spindle Speed |
200 – 8,000 RPM |
| Live Tool Speed |
6,000 RPM |
| Main Spindle Motor Power |
3.7 / 5.5 kW |
| Machine Weight |
4,000 kg
8,818 lbs |
| Floor Space Required (W x D x H) |
2,630 x 1,280 x 1,970 mm
103.54″ x 50.39″ x 77.56″ |
| Modular Tooling System |
Cartridge-type live tooling holder system with a total of 26 tooling configuration options.
Live tooling speed up to 6,000 RPM. |
| Y-Axis Tool Kinematics |
Complex part machining capability on both the main spindle and sub spindle. |
| Direct Drive Rotary Guide Bushing |
Provides high-speed and high-precision machining performance. |
| Deep Hole Drilling Capacity |
Up to 140 mm
5.51″ |
| Machine Structure |
High-rigidity machine construction for superior precision and high-speed machining performance. |
