Available now : SOCO SB-90-5B-2S CNC 5-Axis Proportional Servo Tube Bending Machine Max. Tube Ø 90mm – Year 2014 made in Taiwan

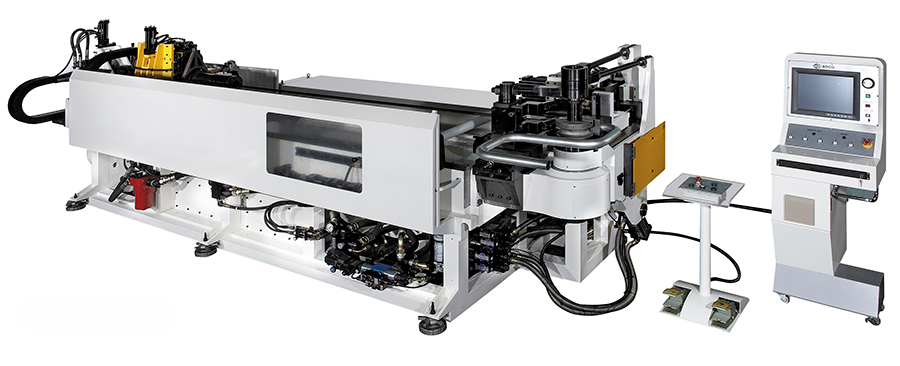

SOCO SB-90-5B-2S CNC 5-Axis Proportional Servo Tube Bending Machine – Year 2014
| Specification | SOCO SB-76x5B-1S/2S | SOCO SB-90x5B-1S/2S | SOCO SB-110x5B-1S/2S | SOCO SB-127x6B-1S/2S | SOCO SB-168x5B-1S/2S |
|---|---|---|---|---|---|
| Mild Steel Capacity (CLR 1.5D) | Ø76.2 × 2.5 mm Ø63.5 × 4.2 mm | Ø88.9 × 2.1 mm Ø76.2 × 3.5 mm | Ø110 × 2.8 mm Ø100 × 4.0 mm | Ø127 × 4.0 mm | Ø168 × 6.8 mm (CLR 2.0D) |
| Stainless Steel Capacity (CLR 1.5D) | Ø76.2 × 2.0 mm | Ø88.9 × 1.8 mm | Ø110 × 1.7 mm Ø100 × 2.8 mm | Ø127 × 2.5 mm | Ø168 × 5.5 mm (CLR 2.0D) |
| Max. Bending Radius Difference (R1-R2) | 80 mm (2S) | 80 mm (2S) | 100 mm (2S) | 130 mm (2S) | 190 mm (2S) |
| Max. Tube Length with Mandrel | 4,130 mm | 4,130 mm | 5,000 mm | 4,000 mm | 5,000 mm |
| Max. Bending Angle | 190° | 190° | 190° | 190° | 190° |
| Max. Draw Bending Radius | 250 mm | 250 mm | 300 mm | 350 mm | 550 mm |
| Bending Accuracy | ±0.1° | ±0.1° | ±0.1° | ±0.1° | ±0.1° |
| Rotation Accuracy | ±0.1° | ±0.1° | ±0.1° | ±0.1° | ±0.1° |
| Feeding Accuracy | ±0.1 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm |
| Dimensions (L × W × H) – 1S | 5,500 × 2,100 × 1,650 mm | 5,500 × 2,100 × 1,650 mm | 7,300 × 2,100 × 1,850 mm | 6,800 × 2,400 × 2,000 mm | 8,500 × 2,880 × 2,000 mm |
| Dimensions (L × W × H) – 2S | 5,500 × 2,100 × 1,720 mm | 5,500 × 2,100 × 1,720 mm | 7,300 × 2,100 × 1,850 mm | 6,800 × 2,500 × 2,000 mm | 8,500 × 2,880 × 2,000 mm |
| Weight (1S / 2S) | 6,600 / 7,100 kg | 7,500 / 8,000 kg | 9,600 / 10,200 kg | 13,600 / 14,100 kg | 19,000 / 19,500 kg |
| SOCO SB-90-5B-2S CNC Tube Bending Machine – Year 2014 | ||
|---|---|---|
| Specification | Metric | Imperial |
| Manufacturer | SOCO | SOCO |
| Model | SB-90-5B-2S | SB-90-5B-2S |
| Year of Manufacture | 2014 | 2014 |
| Machine Type | CNC Tube Bending Machine | CNC Tube Bending Machine |
| Condition | Good working condition | Good working condition |
| Operational Status | Currently active and fully operational | Currently active and fully operational |
| Maintenance Status | Regularly maintained | Regularly maintained |
| Maximum Tube Bending Diameter | Ø90 mm | Ø3.54 in |
| Control Type | CNC Control | CNC Control |
| System Type | 2-Die Fully Automatic System | 2-Die Fully Automatic System |
| Drive System | Hydraulic & Servo System Combination | Hydraulic & Servo System Combination |
| User Interface | Touch Screen Operator Interface | Touch Screen Operator Interface |
| Programming | Memory-Based Programming for Multiple Product Types | Memory-Based Programming for Multiple Product Types |
| Compatible Materials | Stainless Steel, Carbon Steel, Aluminum and Copper Tubes | Stainless Steel, Carbon Steel, Aluminum and Copper Tubes |
| Tooling Included | 3 Sets of Tools / Dies Included | 3 Sets of Tools / Dies Included |
| Previous Application | Previously used by a company bending automotive protection tubes | Previously used by a company bending automotive protection tubes |
| Machine Features | High-Precision CNC Controlled Tube Bending | High-Precision CNC Controlled Tube Bending |
| Functionality | All functions are in working condition | All functions are in working condition |
