Description

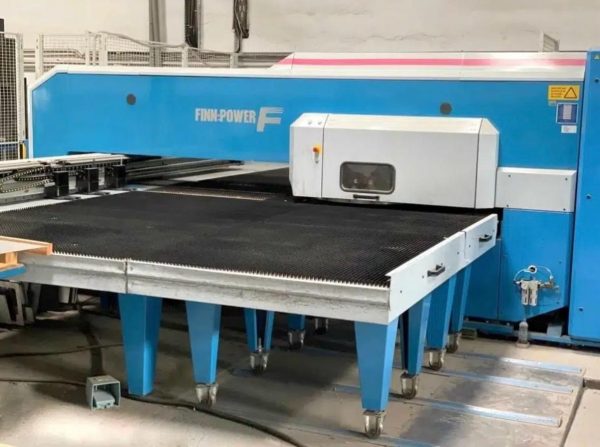

FINN POWER F6 Punching machine – Year 1999
Technical parameters of punching machine FINN POWER F6
pressing force: 30 t (300 kN)
maximum dimensions of the workpiece (L x W): 3061 x 1528 mm (3061 x 1528 mm)
maximum workpiece thickness: 8 mm
maximum workpiece weight: 200 kg
feed speed in X/Y axis: 2584/1560 mm
rapid feed in X-axis: 80 m/min
rapid feed rate in Y-axis: 60 m/min
number of stations on the turret head: 20 pcs.
speed of the turret head: 30 rpm
impact speed 1 mm between holes: 900 1/min
impact speed 25 mm between holes: 400 1/min
impact speed 250 mm between holes: 150 1/min
tool type: Thick Turret
maximum tool diameter: 89 mm
tool change time: 1-3 s
maximum punch diameter of CNC rotary tool: 89 mm
maximum speed of CNC rotary tool: 58 rpm
maximum traverse speed: 100 m/min
drilling accuracy: 0.1 mm
positioning accuracy: 0.08 mm
power supply: 47 kVA
average power consumption: 24 kW
oil tank capacity: 330 l
maximum operating pressure: 300 bar
overall dimensions (length x width x height): 5900 x 6300 x 2500 mm
total weight of the machine F6-25: 13500 kg
Punching machine equipment
CNC controller: SIEMENS SINUMERIK 840D
pneumatic clamps: 2 pcs.
turret head with 20 stations
multitool head with 10 stations (1 idle)
machine serial port: RS232
Power in tons 30 T
Metal length 3000 mm
CNC type SIEMENS SINUMERIK 840D
Metal width 1500 mm
Max steel thickness 8 mm
Length with repositioning 6000 mm
Number of strokes per minute 900
Number of tools 20
Punching machine FINN POWER F6, built in 1999 in Finland, is used in the process of fast and accurate punching of holes in workpieces. The punching process is performed with a high pressing force of 30 tons, on a sheet measuring a maximum length of 3061 mm, a width of 1528 mm and a thickness of 8 mm. The turret head with 20 stations and the multitool head with 10 stations (1 at rest) used on the machine allow high quality machining of the parts.
During one minute, the FINN-POWER F6-25 sheet metal punching machine performs (depending on the selected mode) between 150 and 900 strokes per minute. Equipment offered with the punch press includes a SIEMENS SINUMERIK 840D CNC controller for total machine control, a new waste conveyor and two pneumatic clamps. The machine has been continuously maintained: in 2021 the oil and all filters were changed. The total weight of the machine is 13500 kg.
