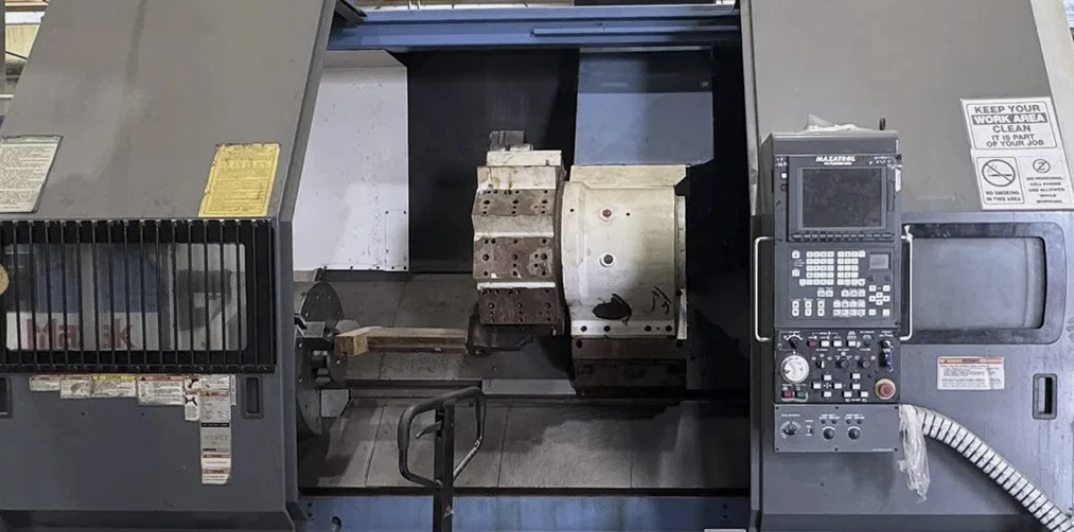

Mazak Slant Turn 50N CNC Heavy Duty Lathe 2 Meters Chuck 15 inch – Year 2000

General Information
Manufacturer	Mazak	Japan
Model	Slant Turn 50N	CNC Heavy Duty Lathe
Year of Manufacture	2000	2000
Machine Type	Heavy Duty CNC Turning Center	Slant Bed Lathe



Machining Capacity
Specification	Metric	Imperial	Description
Maximum Swing	805 mm	31.7 in	Maximum swing over bed
Swing Over Carriage	559 mm	22 in	Maximum swing over saddle/carriage
Maximum Cutting Diameter	711 mm	28 in	Maximum turning diameter
Distance Between Centers	2,032 mm	80 in	Maximum turning length capacity



Spindle Specifications
Specification	Metric	Imperial	Description
Spindle Speed Range	2 – 750 rpm	2 – 750 rpm	Variable spindle speed range
Spindle Bore	102 mm	4 in	Main spindle bore diameter
Bar Capacity	95 mm	3.75 in	Maximum bar stock capacity
Spindle Motor Power	37 kW	50 hp	Main spindle drive motor
Chuck Size	381 mm	15 in	Main chuck diameter



Turret & Tooling
Specification	Metric	Imperial	Description
Turret Positions	10 Stations	10 Stations	Automatic indexing turret
Presetter	Included	Included	Tool presetting system



Control & Equipment
Feature	Status	Type	Description
Mazatrol 640 PC Fusion	Installed	CNC Control	Mazak conversational CNC control system
Chip Conveyor	Included	Chip Management	Automatic chip evacuation system
Coolant System	Included	Coolant Unit	Integrated coolant delivery system
Tailstock	Included	Support System	Heavy-duty tailstock support for long workpieces



Machine Dimensions & Weight
Specification	Metric	Imperial	Description
Machine Dimensions (L x W)	6,325 x 2,438 mm	20 ft 9 in x 8 ft	Overall machine footprint
Machine Weight	10,500 kg	23,150 lbs	Approximate machine weight
