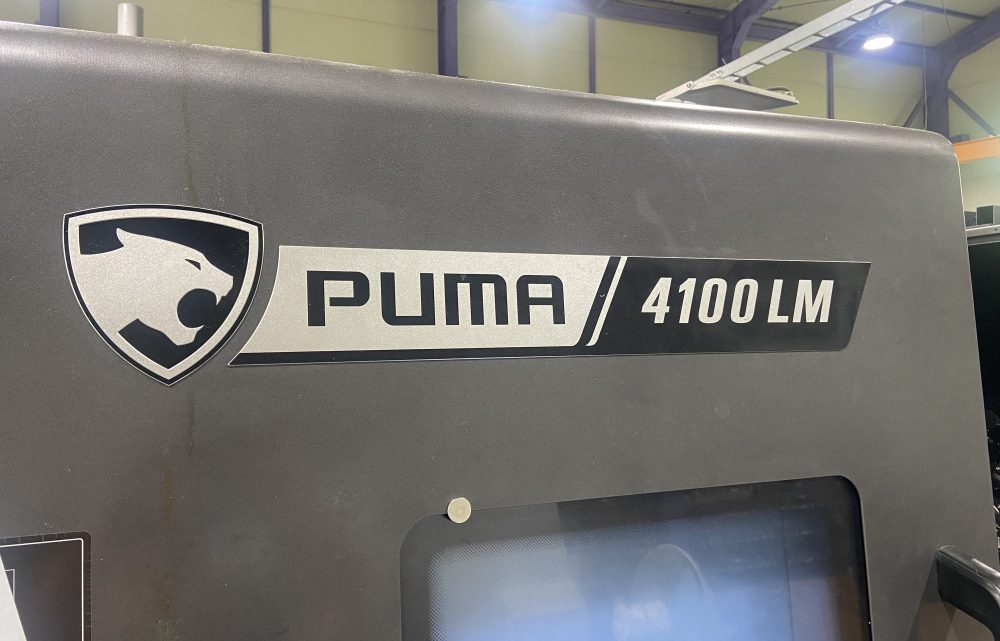

Available now : DN Solutions (DOOSAN) PUMA 4100LMA CNC Turning Center Chuck 12 inch – Year 2023 made in South of Korea
DN Solutions (DOOSAN) PUMA 4100LMA CNC Turning Center Chuck 12 inch – Year 2023
| Specification | Metric | Imperial |
|---|---|---|
| Manufacturer | DN Solutions (DOOSAN) | DN Solutions (DOOSAN) |
| Model | PUMA 4100LMA | PUMA 4100LMA |
| Machine Type | CNC Turning Center with Live Tooling & C-Axis | CNC Turning Center with Live Tooling & C-Axis |
| Year of Manufacture | 2023 (November) | 2023 (November) |
| Condition | Like New (Used) | Like New (Used) |
| Operating Hours | 500 Hours | 500 Hours |
| Actual Cutting Time | 550 Hours | 550 Hours |
| Control System | FANUC i Plus / iHMI | FANUC i Plus / iHMI |
| Turret | 12-Station Servo Turret | 12-Station Servo Turret |
| Live Tool Positions | 8 Driven Tools | 8 Driven Tools |
| C-Axis | Yes | Yes |
| Tailstock | Programmable Hydraulic Tailstock | Programmable Hydraulic Tailstock |
| Maximum Turning Diameter | Ø550 mm | 21.65″ |
| Maximum Turning Length | 2,060 mm | 81.10″ |
| Swing Over Bed | Ø790 mm | 31.10″ |
| Bar Capacity | Ø102 mm | 4.02″ |
| Maximum Workpiece Weight | 500 kg | 1,102 lbs |
| X-Axis Travel | 352 mm | 13.86″ |
| Z-Axis Travel | 2,155 mm | 84.84″ |
| X-Axis Rapid Traverse | 16 m/min | 630 IPM |
| Z-Axis Rapid Traverse | 20 m/min | 787 IPM |
| Chuck Size | 315 mm Hydraulic Chuck | 12″ |
| Spindle Nose | ASA A2-11 | ASA A2-11 |
| Maximum Spindle Speed | 3,000 RPM | 3,000 RPM |
| Main Motor Power (Continuous) | 22 kW | 29.5 HP |
| Main Motor Power (30-Min Rating) | 37 kW | 49.6 HP |
| Maximum Spindle Torque | 832 Nm | 614 lb-ft |
| Live Tool Speed | 4,000 RPM | 4,000 RPM |
| C-Axis Indexing Increment | 0.001° | 0.001° |
| Chip Conveyor | Included | Included |
| Chip Bucket | Included | Included |
| Lubrication System | Automatic Centralized Lubrication | Automatic Centralized Lubrication |
| Coolant System | Included | Included |
| Tool Life Management | Included | Included |
| Spindle Load Monitoring | Included | Included |
| Manual Pulse Generator (MPG) | Included | Included |
| Work Light | Included | Included |
| Machine Dimensions (L × W × H) | 5,774 × 2,275 × 2,272 mm | 227.3″ × 89.6″ × 89.4″ |
| Machine Weight | 11,050 kg | 24,361 lbs |
