Description

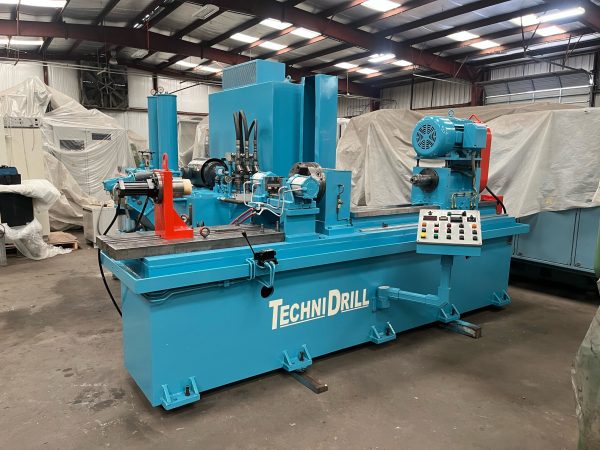

TECHNI DRILL Systems Inc. 200 Series 236-1.5-25-1 BTA Ejector Gun Drill
Specifications:
Model 236-1.5-25-1
S/N 7142-05/97
Drill Motor 25HP Variable Speed 600-3600rpm
Feeds .5”-24” per minute
Rapid Traverse 100” per minute
Gun Drill Capacity .1875”-1.5”
BTA Capacity .5”-1.5”
Drilling Stroke 36” with 3 whip guides
End Pusher Assembly 4” Stroke
Control Logic Allen Bradley SLK500
Coolant System
Capacity 350 Gallon
Pump Motor 25 HP
Pressure 1000 PSI
Electrical Requirement 460/3/60 Full Load Amps 75
