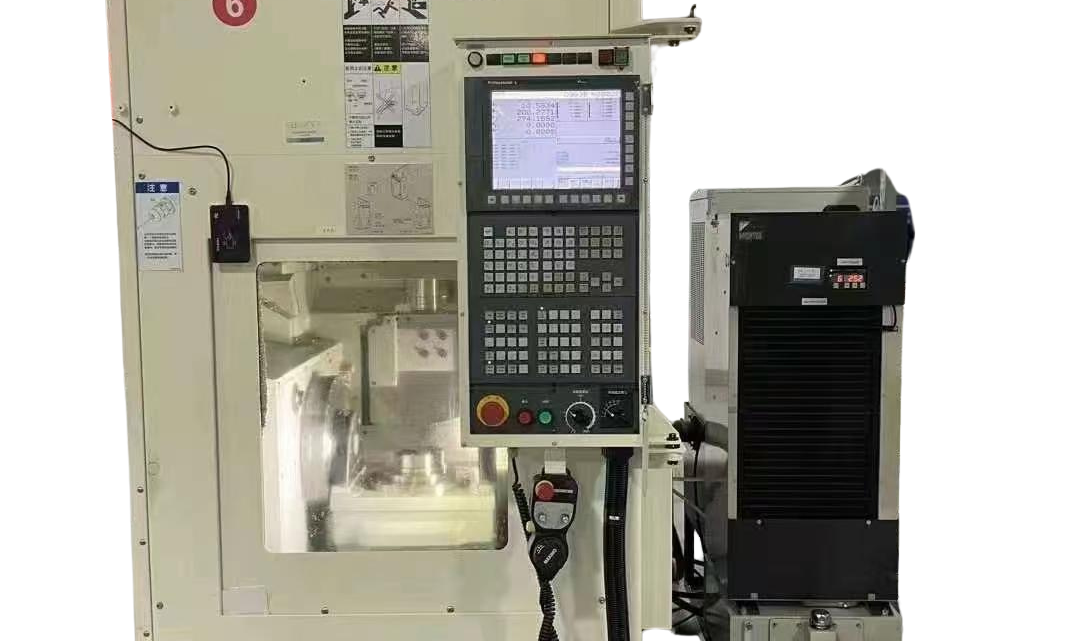

Available now : MAKINO L2 CNC Slim Type 5-Axis Vertical Machining Center – Year 2022 made in Japan
MAKINO L2 CNC 5-Axis Vertical Machining Center – Year 2022
| Specification | Metric | Imperial |
|---|---|---|
| Manufacturer | Makino | Makino |
| Model | L2 | L2 |
| Machine Type | CNC 5-Axis Vertical Machining Center | CNC 5-Axis Vertical Machining Center |
| Year | 2022 | 2022 |
| X-Axis Travel | 400 mm | 15.75″ |
| Y-Axis Travel | 300 mm | 11.81″ |
| Z-Axis Travel | 300 mm | 11.81″ |
| Rapid Traverse Rate | 30,000 mm/min | 1,181 IPM |
| Cutting Feed Rate | 1 – 30,000 mm/min | 0.04 – 1,181 IPM |
| Maximum Acceleration (X/Y/Z) | 1.0 × 0.9 × 1.4 G | 1.0 × 0.9 × 1.4 G |
| Rotary Table Diameter (C-Axis) | Ø125 mm | Ø4.92″ |
| Maximum Workpiece Size | Ø150 × 150 mm | Ø5.91″ × 5.91″ |
| Maximum Workpiece Weight | 50 kg | 110 lbs |
| Rotary Axis Resolution | 0.0001° | 0.0001° |
| Allowable Cutting Torque | A-Axis: 150 Nm / C-Axis: 20 Nm | A-Axis: 150 Nm / C-Axis: 20 Nm |
| Indexing Time | A-Axis: 0.3 sec / 90° C-Axis: 0.3 sec / 90°, 0.4 sec / 180° | A-Axis: 0.3 sec / 90° C-Axis: 0.3 sec / 90°, 0.4 sec / 180° |
| Positioning Accuracy | ±10 arc-sec | ±10 arc-sec |
| Repeatability | ±4 arc-sec | ±4 arc-sec |
| Axis Travel Range | A-Axis: -20° to +110° C-Axis: 360° | A-Axis: -20° to +110° C-Axis: 360° |
| Spindle Taper | HSK-A50 | HSK-A50 |
| Spindle Speed | 50 – 25,000 RPM | 50 – 25,000 RPM |
| Minimum Tool Clamping Force | 9.9 kN | 2,226 lbf |
| Spindle Bearing Diameter | Front: Ø55 mm / Rear: Ø45 mm | Front: Ø2.17″ / Rear: Ø1.77″ |
| Spindle Power | 18.5 / 15 kW (S3-15% / S1 Continuous) | 24.8 / 20.1 HP |
| Spindle Torque | 21.5 / 15.9 Nm (S3-15% / S1 Continuous) | 15.9 / 11.7 ft-lb |
| Acceleration Time | 1.5 sec to 25,000 RPM 0.6 sec to 12,000 RPM | 1.5 sec to 25,000 RPM 0.6 sec to 12,000 RPM |
| Deceleration Time | 2.2 sec from 25,000 RPM 0.7 sec from 12,000 RPM | 2.2 sec from 25,000 RPM 0.7 sec from 12,000 RPM |
| Tool Magazine Capacity | 15 Tools | 15 Tools |
| Maximum Tool Diameter / Length | Ø30 mm / 250 mm | Ø1.18″ / 9.84″ |
| Maximum Tool Diameter (Adjacent Pocket Empty) | Ø80 mm / 190 mm | Ø3.15″ / 7.48″ |
| Maximum Tool Weight / Tool Torque | 5 kg / 4.0 Nm | 11 lbs / 2.95 ft-lb |
| Coolant Tank Capacity | 300 Liters | 79.3 Gallons |
| Electrical Supply | 380V ±10%, 3 Phase, 50 Hz | 380V ±10%, 3 Phase, 50 Hz |
| Air Pressure Requirement | 0.4 – 1.0 MPa | 58 – 145 PSI |
| Air Consumption | 470 L/min | 16.6 CFM |
| Machine Footprint | 1,160 × 3,800 mm | 45.7″ × 149.6″ |
| Machine Height | 3,005 mm | 118.3″ |
| Machine Weight | 4,100 kg | 9,039 lbs |
