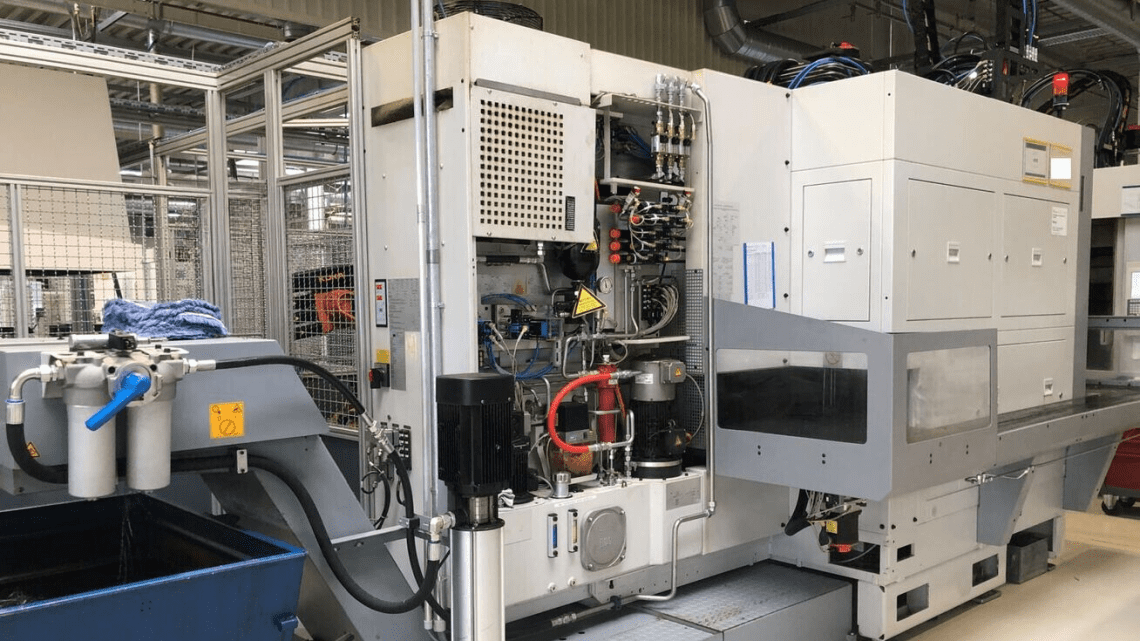

If you’re evaluating a used EMAG VL 4 vertical turning center, experts suggest doing a very thorough technical, operational, and commercial assessment. The VL-4 is a well-built, compact automated vertical lathe, but as with any precision machine there are many points of risk and wear, especially in used condition. Below is a detailed checklist (mechanical, electrical, control, accuracy, etc.), what to ask the seller, what to test, what red flags to look out for, and general advice.

---

What You Should Know Upfront – Key Specs & What Makes VL 4 Unique

First, know the “as‐new” or typical specs so you can benchmark what you’re buying against what you need. This sets the expectation. Some of these specs for EMAG VL-4:

• Max workpiece/chucked component diameter: ~ 200 mm (≈ 8 in)
• Max workpiece length (Z travel): ~ 200 mm
• Chuck diameter: up to ~ 260 mm
• Rapid traverse rates: ~ 60,000 mm/min in X, ~ 30,000 mm/min in Z in many VL models; for VL4 typical ~ 60 / 30 m/min in X / Z respectively
• Spindle power & torque: VL4 versions often ~ 25 kW, torque ~ 280 Nm at certain loads; speed up to ~ 4,500 rpm in many units.
• Tool turret: 12-station turret is standard, with optional driven tools.
• Optional Y-axis for turret (for more complex geometries) in some units.
• Base/floor design: Machine body often built with “MINERALIT®” polymer concrete for damping, to reduce vibration and improve tool life and surface finish.

Knowing these helps you check whether the used VL4 is still close to spec or has had downgrades or damage.

---

What to Inspect & Test (Mechanical, Operational & Control)

Here are what experts recommend you physically inspect, measure, and test when evaluating a used VL4, plus what to ask/demand.

Area	What to Inspect / Test / Ask
Machine Structure & Frame	• Check for cracks, repairs, welds, distortions in the frame, turret mount, spindle head, overhead rail (if with pick-up or automation). • Check the bed / base for wear or damage; since the part is chucked and moves via X/Z, ensure the slide ways (especially on X-slide) are clean, straight, not scored, not rusted. • Inspect how rigid the machine is; vibration or sway during operation indicates looseness or worn bearings.
Spindle & Chucking System	• Run the main spindle: at different speeds, including high rpm, listen for noise, check for vibration. • Check for run-out at the chuck (3-jaw or whatever type). Chuck jaws: wear, backlash, alignment. • Test chuck closing force; check for slipping or worn surfaces. • If spindle taper or interface is used (if driven tools or attachments), check for damage or wear.
Tool Turret & Tool Stations	• Check turret indexing: is it accurate, quick, with no “slop”? Any mis-indexing or delays? • Tool station condition: tool holders, driven tools (if any), cleanliness, alignment. • Check the turret’s driven tools (if present): are motors / spindles healthy, balanced, consistent speed under load. • Check for tool change reliability and repeatability.
Axes (X, Z, Optional Y if present)	• Motion smoothness: move in all axes under no-load, under load; check for jerks, binding, sagging. • Check backlash, especially on the X-slide, leadscrews or ball screws, linear guides. Use dial indicators to test return to reference points. • Measure geometric accuracy: squareness of axes, straightness of slides. • Also check the condition of slide covers, wipers, lubrication: are ways protected, lubrication channels intact.
Automation / Pick-Up / Handling System	• VL-series includes “pick-up” automation for loading/unloading parts. Inspect whether that mechanism works smoothly: does the spindle or gripper arm pick parts correctly, deposit properly; is timing ok. • Any feeder or conveyor, part storage system: check condition, alignment, speed, reliability. • Sensors used for part detection, measuring station (if equipped): are they functioning, clean, calibrated.
Cooling / Chip / Cutting Fluid Systems	• Check coolant system: condition of coolant, filters, pumps, hoses. Is there through-spindle coolant (if equipped)? Are pressure and flow acceptable? • Chip removal: conveyors, chip trays, scrap handling. Excess chip build up or bad chip evacuation causes wear or cooling problems. • Inspect coolant mist extraction (if present), filtration; check for leaks, corrosion.
Control System & Electrical	• What CNC/control model? Is it the original/em up to date? Are spare parts / support available locally? • Inspect electrical panel: wiring, junction boxes, connectors; check for overheating, burn marks, cleanliness. • Check grounding, safety interlocks, emergency stops. • Inspect encoder accuracy (axes, turret), limit switches: are they clean, functioning, properly calibrated. • Observe control response: commands from control, tool changes, turret indexing, axis moves, etc., for sluggishness or inconsistency.
Accuracy / Performance Tests	• Produce a test part (or have them do it) similar to what you will make: measure dimensions, surface finish, repeatability. • Check turning performance: concentricity, roundness, especially for chucked work. • Check finishes at different speeds, depths of cut. • Thermal drift: run the machine for a while and see whether dimensions shift as machine warms. • Test rapid traverses vs actual workloads; see whether movement under realistic load causes inaccuracies or vibration.
Wear & Maintenance Condition	• Ask about operating hours: spindle hours, total hours of use; what kind of shifts. • What materials were machined: hard metals, castings, abrasive materials will increase wear. • Maintenance history: what parts have been replaced: spindle bearings, chuck, tool holders, turrets, axes components. • Condition of wear parts: chuck jaws, inserts, liners, guideways, seals. • Signs of corrosion, rust (coolant corrosion, moisture), or neglect.
Workpiece Capacity & Fit for Your Application	• Will your parts fit: diameter and length? Even though spec says 200 mm, actual usable envelope may be less due to fixture or chuck size. • Will your material / machining tasks push the machine: do you need driven tools, deep cuts, high torque, high feed rates? Check whether current machine has enough power / torque. • Tooling: are your tools holders / turret tool types compatible; any special tools needed? • If you plan to use special attachments or accessories, check compatibility or what modifications are needed.
Safety, Guards, Regulatory Compliance	• Guards, enclosures, safety interlocks: present and functional. • Emergency stop / shutdowns properly working. • Electrical safety: insulation, grounding, compliance to local safety codes. • Coolant mist / ventilation / dust management if required. • Operator access: is it safe to change tooling, access chip areas etc.

---

Key Questions to Ask the Seller / Documentation to Obtain

• Age of machine; model/year; serial number.
• Total hours / cycles of operation (especially spindle hours)
• What part types / materials have been run (steel, aluminum, castings, etc.)
• Operating regime: shifts per day, use intensity
• Maintenance logs: what has been replaced / serviced: bearings, turrets, chuck, slides, spindle, etc.
• Any history of accidents / crashes / misuse
• Has machine been retrofitted or modified (e.g., added Y-axis, special tooling, special control upgrades)
• Are manufacturer’s manuals, electrical drawings, parts lists, alignment / calibration data available
• Sample parts made recently, with your similar material or operations
• Control software/hardware version; whether updates or support are still available
• What accessories are included: chucks, fixture, driven tools, tool holders, coolant systems, chip conveyors, automation / pick-up systems
• Condition & availability of spare parts locally
• Delivery, installation, alignment, leveling costs

---

Common Failure Points & Red Flags

These are issues often found in used VL4s (or similar machines) that tend to cost more than people anticipate:

• Worn guideways, rails, slide wear (especially on X-axis and Z-axis) causing backlash, poor repeatability.
• Turret wear, especially regarding indexing, tool holder fit, driven tool spindles losing precision. <br>
• Spindle issues: worn bearings, noise, vibration, overheating.
• Chuck misalignment, worn jaws, loss of clamping force, jaws slipping.
• Automation / pick-up system problems: timing drift, sensor failures, gripper wear.
• Coolant system corrosion, pump wear, filtering problems; coolant contamination causing corrosion or damage.
• Control components aging: encoders, limit switches, servo drives, electrical wiring faults.
• Machine being idle for long, leading to seized parts, dried lubrication, rusting.
• Accessories missing or non-functional: driven tools, special holders, fixtures, chip / coolant systems.
• Unrealistic claims: machine advertised as being capable of full spec, but actual condition requires derating because of wear.

---

What Good Condition Looks Like & What’s Acceptable vs Poor

To help you judge whether what you see is “worth it,” here are what experts often consider good / acceptable / poor in various areas:

Feature	Good / Acceptable	Warning / Poor
Spindle	Smooth, little vibration even at full speed, tight taper with minimal run-out; low noise, proper lubrication.	Audible noise, heat build-up, oily or dirty bearings, high run-out, spindle slop under load.
Axes / Guideways	Motions are smooth, backlash minimal, feed rates maintained, start/stop without jolts.	Binding, jerky motion, visible scoring/ wear on ways, loose or stiff axes, excessive backlash.
Turret / Tooling	Fast, clean indexing; tools hold securely; driven tools spin true; minimal delay.	Indexing delays or inaccuracy; tool holders sloppy; driven tool spindles noisy or weak; tools dropped or mis-positioned.
Chuck & Holding	Strong clamping; jaws align well; minimal wear; clean chuck; proper grip on workpieces.	Slipping, worn jaws; misalignment; chuck that rattles; poor grip; parts coming loose.
Automation / Handling	Pick-up works smoothly; part presentation consistent; sensors accurate; minimal downtime for loading/unloading.	Frequent jams; inconsistent pickup; sensor errors; parts dropped; unreliable automation.
Cooling / Chip Removal	Clean coolant; good flow and pressure; chip conveyor works, minimal chip build-up; filters clean.	Coolant foaming or dirty; filters blocked; chips accumulating; coolant leak or overflow; poor chip control.
Control / Electrical	Interface responsive; no glitches; limit switches accurate; servo drives behaving well; control logs clean.	Faulty switches, control lag; software/hardware errors; burnt wiring or overheating; control crashes.
Workpiece Accuracy	Test parts within your required tolerances; finishes good across different positions and speeds.	Parts out of tolerance; inconsistent finishes; drift over time; mismatches in repeatability.

---

Rough “Useful Life” Considerations & What You Should Budget For

Even if a used VL4 seems to be in decent shape, expect to budget for some refurbishing / replacement of wear items. Here are what you should plan for:

• Bearing replacements (spindle, possibly turret or driven tool spindles)
• Regrinding or replacing chuck jaws; possibly upgrades to chuck or holding if yours require special grip
• Refurbishing or replacing guide ways, rails, linear guides; polishing, bearings, etc.
• Maintenance of automation/pick-up: grippers, sensors, actuators
• Overhaul or servicing of coolant/filtration system
• Control software/hardware upgrades if needed
• Transport, installation, alignment, leveling, commissioning
• Spare tooling, holders, any extras you need for your parts
