Here’s a detailed guide (drawn from what industry experts recommend) for evaluating a Doosan VCF-850 LSR used / second-hand machining centre before buying. It includes what the machine should be capable of (so you know what to expect), common wear points and problem areas, red flags, and a practical inspection checklist.

---

What the VCF-850 LSR Is / Typical Specs

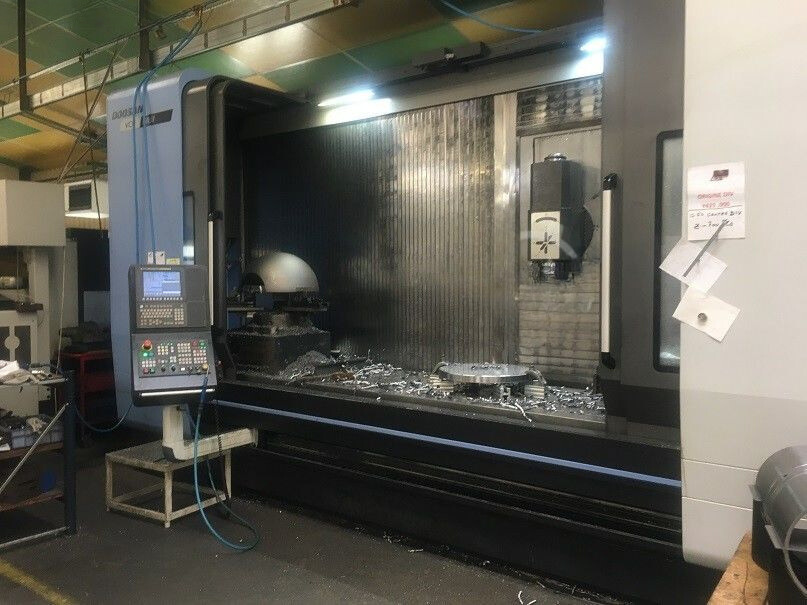

To evaluate any used unit, it helps to know what the original or common “good spec” looks like. The VCF-850 LSR is a large multifunction / moving-column vertical machining centre, often with tilt-swivel (B / C axis or table) capability. Some of its key specs:

Parameter	Common / Spec Values
Travels (X × Y × Z)	~ 3000 × 850 × 800 mm for the LSR version.
Spindle Speed	Typically 12,000 rpm; some versions up to ~18,000 rpm.
Spindle Power / Torque	≈ 32 kW / 42-44 HP in some versions; torque ~126 Nm in many configurations.
Table / Workpiece Capacity	Table size ~3500 × 870 mm; table load ~3500 kg (static) in many models. Integrated rotary table option (Ø800 mm) in many LSR-type machines.
Automatic Tool Changer (ATC)	Standard often 30 tools; some units have 60 tool magazines (drum or chain type) as an optional upgrade.
Rapid & Feed Rates	Rapid traverse ~40 m/min on X, Y, Z axes; feed rates depend on cut, control, tooling.
Control Options	Often Fanuc (e.g. Oi-MD, F31i-B5), but may also have Heidenhain or equivalents depending on region/options.

These are good baseline figures; used machines will often deviate depending on options, wear, or modifications.

---

Common Issues / Weaknesses Experts Warn About

Because the VCF-850 LSR is a heavy, complex, multifunction machine, there are several recurring problem areas. When considering a used one, pay extra attention here:

1. Spindle / Head Tilt-Swivel (B-axis) Issues
   • The mechanism that allows the spindle head to tilt or swivel (B-axis) often sees high loads. Wear in bearings, sealing, lubrication here can lead to accuracy loss or increased backlash.
   • If there is a “swivel head” or moving head, check for play or drift when under load.
   • Spindle bearings, especially at high rpm, and the spindle nose taper need inspection for wear.
2. Table Accuracy, Rotary Table (C-axis) & Load Capacity
   • Many units have rotary tables (integrated or mounted). These must be checked for run-out, ellipticity, wobble, whether the table mounting is still rigid.
   • The static vs dynamic load capacity: even if table capacity is high, under dynamic machining loads, sag or deflection may reduce effective capacity.
3. Guideways, Linear / LM / Roller Guides & Ball Screws
   • Given the long X travel (often 3,000 mm), the guideways’ straightness and wear are very important. Any scoring, rust, misalignment has a magnified effect over long distances.
   • Ball screws: wear, backlash, noise; check whether they have linear scales or feedback systems.
   • Way-covers (chip guards), lubrication along the long axis; degraded or missing way covers allow chips / coolant ingress, accelerating wear.
4. Thermal Stability / Cooling / Spindle Cooling
   • Cooling systems for spindle, head, columns (if any) need to work well. Thermal drift can badly affect precision, especially in large machines.
   • Check oil cooling / coolant through spindle, head cooling, any thermal compensation (if offered) is functioning.
5. ATC / Tool Magazine & Tooling Interfaces
   • If ATC has many stations, check indexing speed & accuracy, condition of pots, sensors, grip/holding mechanisms.
   • Tool changer cycle times: sometimes claimed speeds degrade with time.
   • Look for worn tool holders, tool nose damage, any damaged clamps.
6. Control System & Electronics / Wiring
   • Controls age: check for error logs, recurring faults. If the machine has a Fanuc or Heidenhain, make sure spare parts or service support is available.
   • Wiring in the head, inside enclosures: heat damage, coolant leaks, corrosion.
   • Limit switches, motor feedback, encoders must all be verified.
7. Physical Condition, Structure & Alignment
   • Check the column, base, frame for cracks, welds, past repairs. Large machines may have been moved often — shipping damage, re-alignment issues.
   • Table flatness, spindle center height over table, parallelism of axes.
   • Factory alignment reports (if available).
8. Auxiliaries & Maintenance History
   • Coolant systems, filters, pumps, chip conveyor / evacuation / mist control. If these are poorly maintained, lead to corrosion / contamination.
   • Lubrication systems: automatic lubrication of axes, spindle, bearings should have been maintained.
   • Scheduled maintenance history: spindle rebuilds, major replacements, drive motor maintenance.
9. Workpiece Size, Fixture & Accessibility
   • Because of the large size, fixturing must be appropriate; ability to load/unload big parts; clearance when head is tilted; reach of axes.
   • Accessibility for maintenance: can you access spindle, head, motor, guides for service; is the workspace clean / environment favorable?
10. Support / Parts / Documentation
    • Manuals, control software backups, parts catalogs, wiring diagrams.
    • Local support (Doosan or authorized service), and lead times/costs for major wear components (spindle bearings, head tilt-bearings, rotary table, etc.).

---

Red Flags to Watch Out For

If you see any of these, they warrant a deeper investigation; may reduce price significantly; could be deal breakers:

• Excess backlash or play in any axis, notably long travel axis.
• Spindle noise, vibration, overheating. Run-out in spindle taper.
• Tilt / swivel head that drifts or can’t hold its position accurately.
• Worn guide ways (scoring, rust), especially on the long X axis.
• Poor condition or missing way covers, which permit chips / coolant damage.
• ATC errors, failed tool changes, sensors faulty.
• Rotary table wobble or run-out; poor mounting.
• Control faults logged; outdated firmware or obsolete components.
• Coolant leaks, oil cooling unit faults. Clogged filters.
• Structure damage, weld repairs, misalignment, distortion.
• Missing service / maintenance logs, or vague history.

---

Practical On-Site / Pre-Purchase Checklist

Here’s what to bring or what to do when inspecting a Doosan VCF-850 LSR in person (or insisting the seller demonstrate / provide evidence):

Item	What to Check / Ask
Machine Identification	Model, serial number, year, all options (5-axis B-axis, table C-axis, ATC size, spindle RPM)
Hours & Usage History	Total hours, spindle hours, head-tilt / swivel usage, how many shifts it ran, what materials it cut
Visual Condition	Frame, base, column; inspect for rust, paint condition, welds, external damage; inspect way covers, spindle nose, tooling interfaces
Spindle / Head / Tilt-Swivel / B-Axis Test	Run through speeds; check for noise, vibration; check backlash; check tilt/swivel accuracy; see whether head holds well under load; check working of cooling / sealing
Travel & Accuracy	Move full X, Y, Z axes; check for smooth motion, any binding; measure straightness; check squareness; test with gauges if possible
Rotary Table / C-Axis	Measure table run-out; check lock-up; check rotating unit; see how table is mounted; see table load performance
ATC / Tool Magazine	Cycle tool changes; verify indexing, accuracy; check tool holder condition; sensors; test change times; check magazine for wear or damage
Control / Electronics	Open electrical panels; check for water damage or corrosive exposure; inspect wiring; review logs / alarms; see whether downtime/fault history; check controller type/version
Cooling / Lubrication / Auxiliaries	Test coolant pumps; check flow, seal leaks; inspect filters; check oil cooling or head cooling; check chip evacuation; lubrication of guides etc.
Test Cut / Production Simulation	If possible, perform a representative machining job (or multiple jobs) covering high feeds, plunging, contouring; see final surface finish; check dimensional stability; warm-up test; see how parts behave after long run
Utility / Installation Requirements	Power supply (voltage / phase / amperage); floor load; space; overhead lifting or cranes for installation or repairs; environmental conditions (temperature, humidity, dust)
Spare Parts & Documentation	Manuals; parts listings; list of major components that have been replaced already; check availability & cost of key spares locally or regionally
Price vs Condition	Compare with similar machines; adjust offer considering needed repairs / refurbishing; check the margin for any “reconditioned” parts needed
