What are Holistic Loading and Unloading Robot Cell Solutions at Metalworking sector?
Holistic Loading and Unloading Robot Cell Solutions in the metalworking sector refer to integrated robotic systems that automate the entire process of feeding raw materials into machines (loading) and removing finished or semi-finished parts (unloading), often with additional process steps like inspection, cleaning, or sorting. Here’s a technical explanation:
🔧 1. Definition and Scope

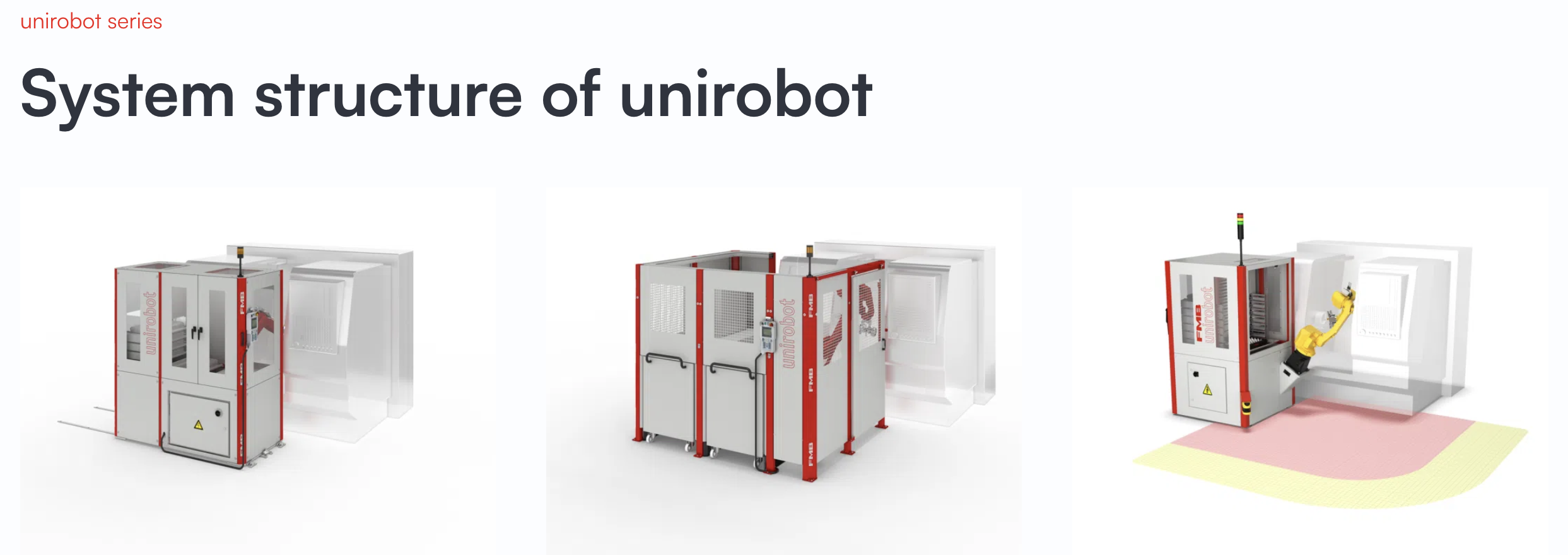

A Holistic Robot Cell Solution is a modular, fully integrated robotic automation system designed to:
- Handle material logistics from raw part intake to finished part outfeed.
- Operate continuously and autonomously, often in high-mix, low-volume environments.
- Be flexibly reconfigurable for different CNC machines (lathe, milling, grinding, etc.).
⚙️ 2. Technical Components
These cells typically include:
a. Robotic Arm
- 6-axis industrial robot (e.g., FANUC, KUKA, ABB).
- Payload: 5–100+ kg depending on part size.
- Precision: ±0.02 mm or better for CNC environments.
b. Part Feeding System
- Pallet systems, conveyors, drawer systems, or rotary magazines.
- Often equipped with vision-guided pick-up (2D/3D cameras).
- Can handle asymmetrical, raw, or forged blanks.
c. Machine Interface
- Electrical and software integration with CNC machines (Siemens, Fanuc, Heidenhain).
- M-code/I/O based communication for cycle start, door open/close, etc.
- Automatic door and chuck control.
d. Unloading and Post-Processing
- Includes trays, bins, or conveyor systems.
- May include automated deburring, part marking, dimensional inspection, or cleaning stations.
- Parts are sorted based on quality grades (pass/fail).
e. Safety and Control Systems
- Enclosed cell with light curtains, fences, or safety scanners.
- Controlled via PLC or robot teach pendant.
- Often networked to MES or ERP systems.
🔄 3. Operational Flow
- Raw parts are loaded into the input zone (tray, conveyor, etc.).
- Robot uses vision or pre-defined coordinates to pick a part.
- Robot opens machine door and places the part on the chuck or fixture.
- Machine processes the part.
- Robot removes finished part and may:
- Place it in a quality inspection station.
- Transfer it to cleaning or marking.
- Place it in finished goods tray or buffer.
✅ 4. Key Benefits in Metalworking
- Unmanned operation during nights/weekends (lights-out manufacturing).
- Cycle time reduction due to overlapping tasks (parallel loading/unloading).
- Error minimization via repeatable, programmed robot movements.
- Higher OEE (Overall Equipment Effectiveness).
- Consistency in part handling, reducing surface damage or misplacement.
🏭 Typical Applications
- CNC turning centers (lathe): raw bar to finished shaft.
- CNC machining centers (milling): castings to machined housings.
- Grinding machines: precision ground components.
- EDM and laser systems: tool or die loading.
