Description

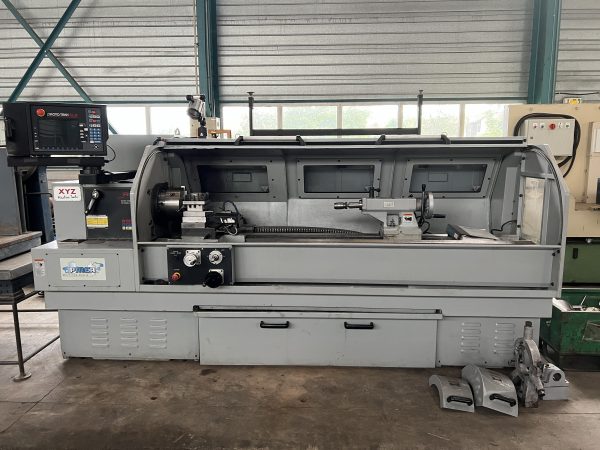

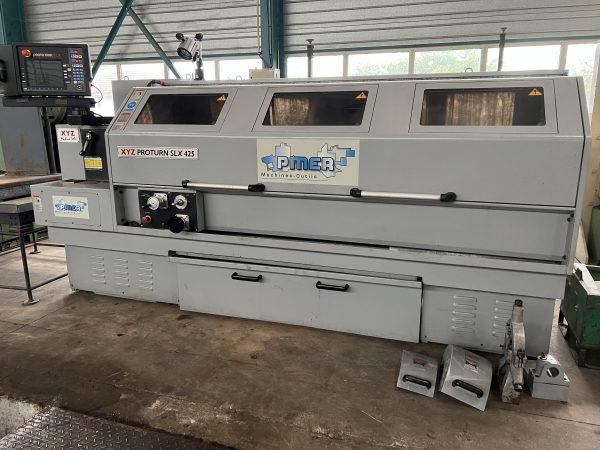

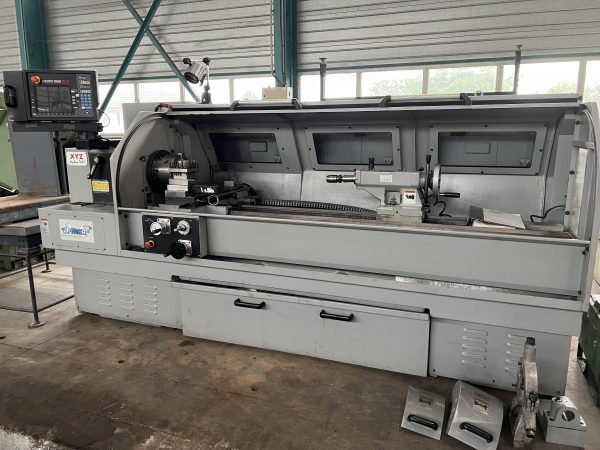

XYZ PROTURN SLX 425-2M – 2013 Model
| Turning length | 2000 mm |
| Turning Ø | 480 mm |
| Ø above the bed | 480 mm |
| Ø above transversing slide | 250 mm |
| Length between centers | 2000 mm |
| Type of CNC | PROTO TRAK SLX |
| X-axis | 250 mm |
| Z-axis | 2000 mm |
| XYZ PROTURN SLX 425-2M | |
| Spindle bore | 80 mm |
| Number of turrets | 1 |
| Number of tools on turret | 4 |
| Turning speed | 2500 rpm |
| Spindle motor power | 10 kW |
| Tailstock | yes |
| Bar feeder | no |
| CNC Lathe | |
| Length x width x height | 3700.0 × 1500.0 × 1700.0 |
| Weight | 3700 kg |
| Worked hours | 2000 hours |
| Hours under power | 3500 hours |
Year of manufacture: 2013
Distance between centers: 2000 mm
Diameter admitted above the bench: 480 mm
Diameter allowed above the carriage: 257 mm
Bar passage diameter: 80 mm
Rotation speeds: 025/2500 rpm, 3-speed gearbox
Motor power: 10 kW
Rapid advances: 6300/2500 mm/min

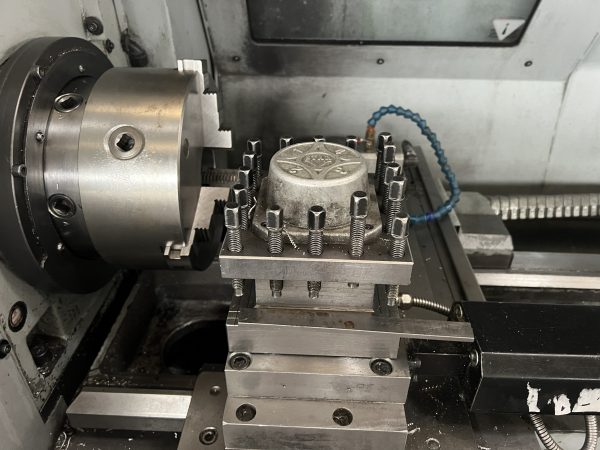

Electric turret: 4 positions
Chilled spit
Advanced against

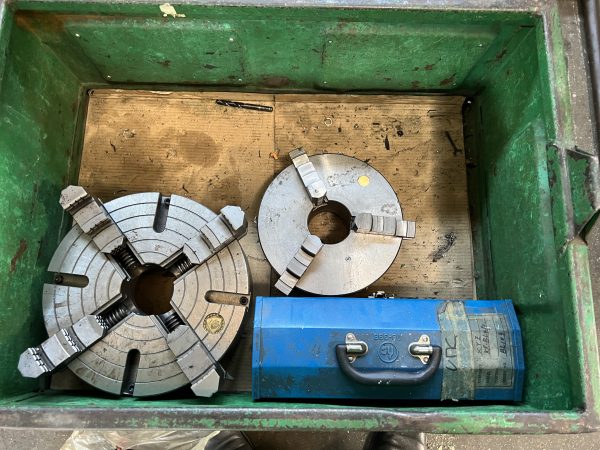

3-jaw chucks
Chuck with 4 independent jaws
Rear tool carrier

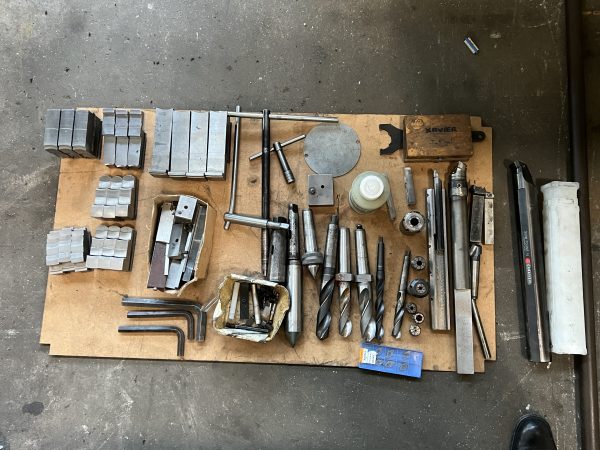

Tools

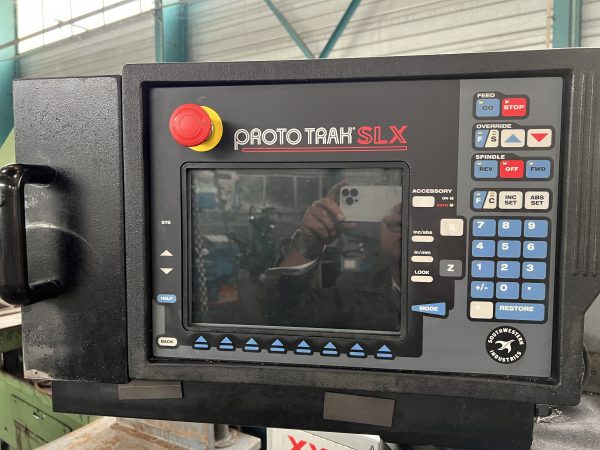

Conversational PROTO TRAK SLX CNC

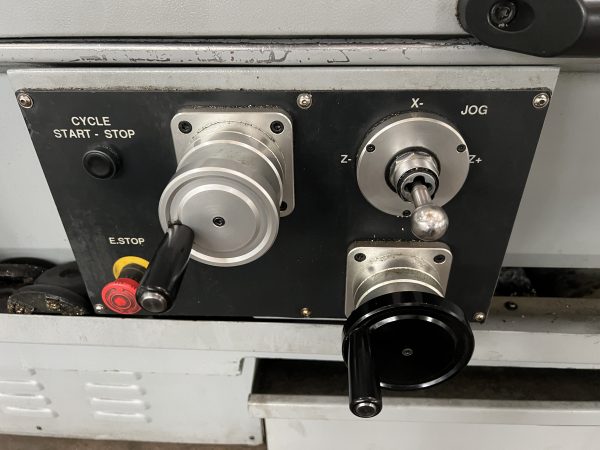

Electronic handwheels
Documentation
Dimensions: 3700x1500x1700mm
Weight: 3700 kg
Very good state
