Description

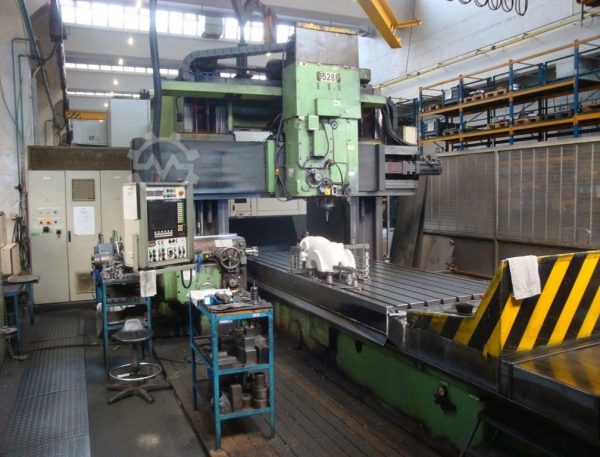

TOS FP 16 CNC – Year 2002
Control system: Mefi CNC 859

Working range, technical parameters / according to the accompanying documentation of the machine /:

Clamping surface of the table 1,250 x 3,490 mm

Axis departures:
X axis 3,000 mm
Y axis 1,250 mm
Z axis 230 mm
W axis 1,000 mm
axis r 1,000 mm

Controlled axes:
X – table travel on the bed
Y – travel of the vertical headstock along the crossbar
Bi23m2vwnl
Z – vertical headstock quill extension
W – travel of the side horizontal headstock on the stand
C – spindle speed of the vertical headstock

Uncontrolled axes with measuring:
v – quill extension of the side horizontal headstock
r – adjusting the crossbar on the stand

Axis feeds:
X axis 4,800 mm / min
Y axis 4,000 mm / min
Z axis 2,000 mm / min
W axis 4,000 mm / min
axis r 1,000 mm / min

Vertical working spindle
spindle speed 0-300 rpm. I. series of revolutions
300-1 100 rpm. II. speed range
cavity for ISO 50 tool
electromechanical tool clamping

working spindle drive motor power 58 kW reduced to 50 kW
max. torque 2,200 Nm

Working spindle side horizontal
spindle speed max. 900 rpm.
cavity for ISO 50 tool
electromechanical tool clamping

working spindle drive motor power 13.5 kW
