Description

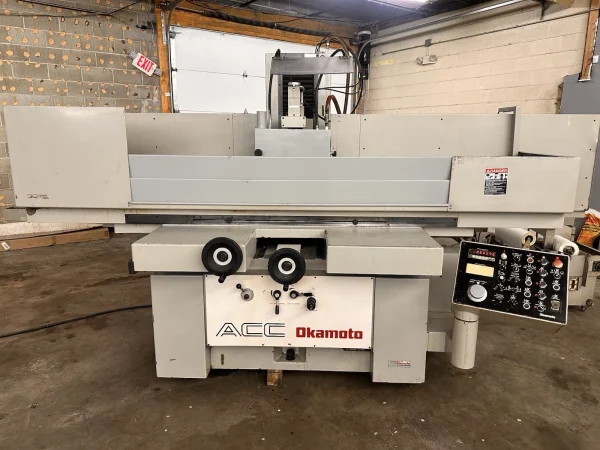

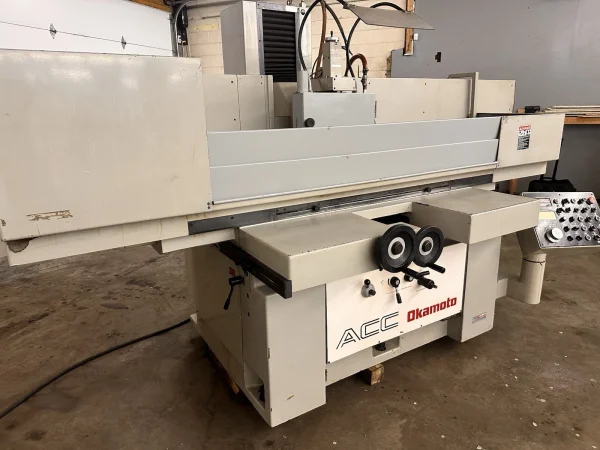

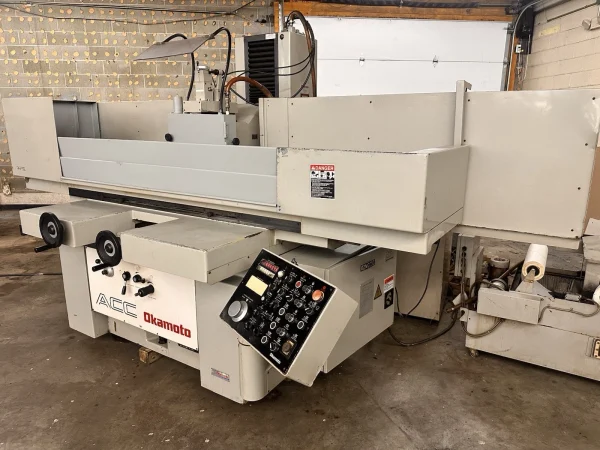

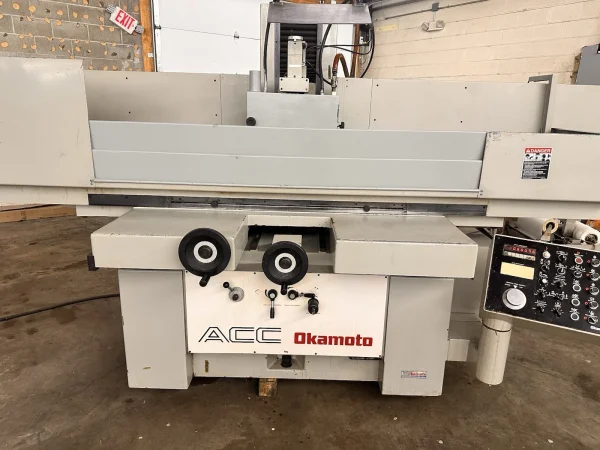

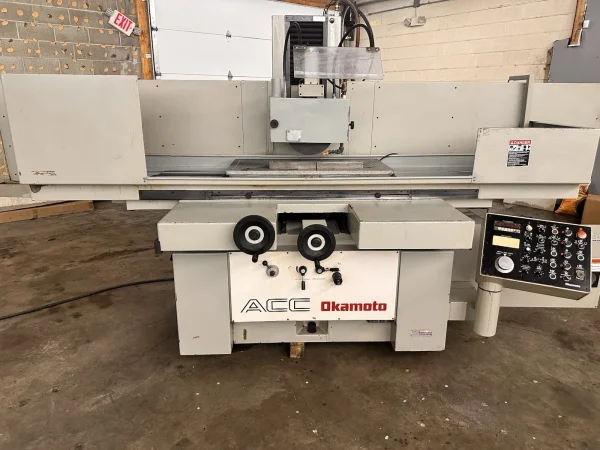

Okamoto ACC-20 40DX2 Automatic Hydraulic Surface Grinder

WORKING SURFACE OF TABLE 20″ X 42″

MAXIMUM TABLE TRAVEL 45″

MAXIMUM TABLE CROSS TRAVEL 21.3″

VERTICAL CAPACITY WITH 12″ DIAMETER WHEEL 21 1/2″

WHEEL SIZE 12″ X 2″ 5″

SPINDLE SPEED 1800 RPM

HYDRAULIC TABLE SPEEDS 1 TO 82 FPM

HYDRAULIC CROSS TABLE SPEEDS 8 TO 40 IPM

AUTOMATIC INCREMENTAL DOWN FEED .00005 TO .0015

POWER LEVEL OF WHEEL HEAD

AUTOMATIC LUBRICATION

FLOOR SPACE 15′ W x 8′ D x 7′ H

WEIGHT APROX 12,000 LBS.

Equipped With:

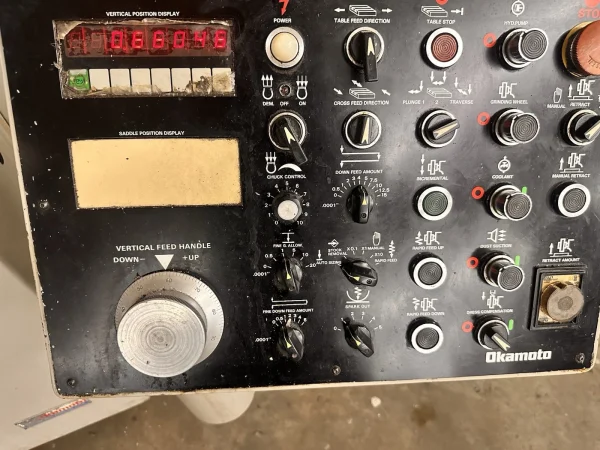

FULL PENDANT CONTROL

AUTOMATIC DOWN FEED- SERVO CONTROL WITH POSITION DISPLAY

AUTOMATIC CROSS FEED

PLUNGE

SPARKOUT

OVER THE WHEEL HYDRAULIC DRESSER

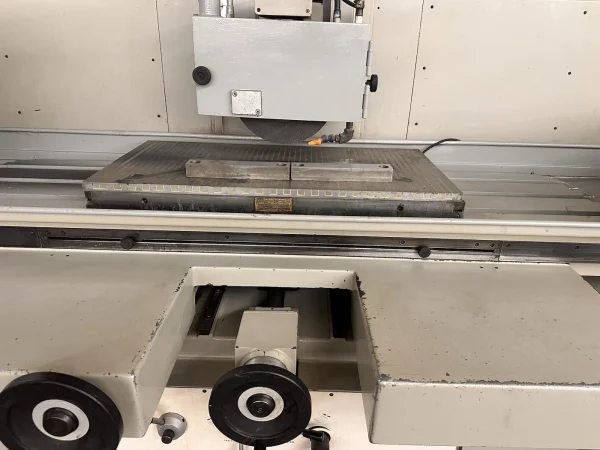

20″ X 40” ELECTRO MAGNETIC CHUCK WITH CONTROLS

COOLANT SYSTEM WITH PAPER FILTER

Machine is in excellent condition and can be inspected under power at our warehouse
