Description

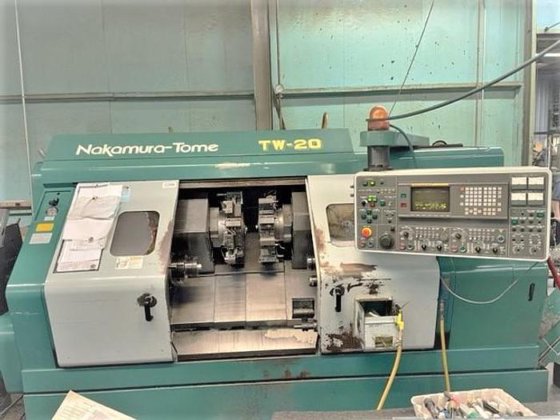

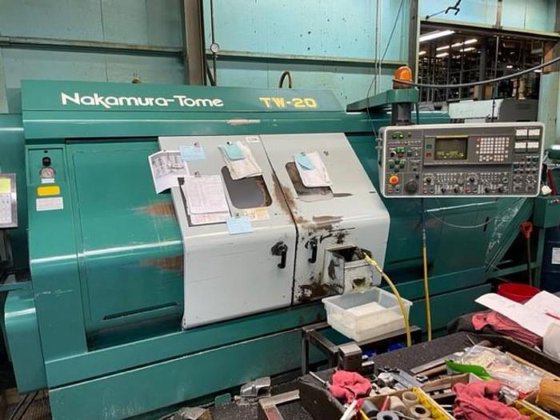

Nakamura Tome TW-20MM – Year 1995

Twin Facing Spindle Design
Full “C” Axis Spindle Rotation Both Spindle

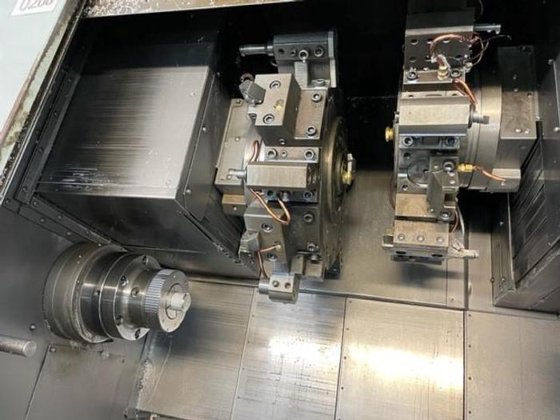

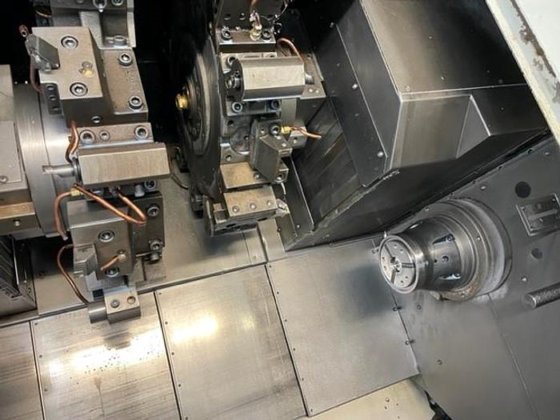

Live Milling / Drilling Capability on Both Turrets
(2) Collet Chucks
Barfeed Interface
LNS Quickload Servo Short Bar Feed Unit
Parts Catcher

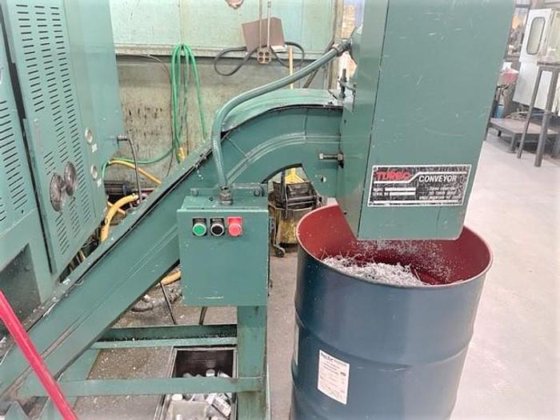

Chip Conveyor
Coolant Tank with Pumps
RS232 Port Interface

Miscellaneous Tooling
All Available Manuals

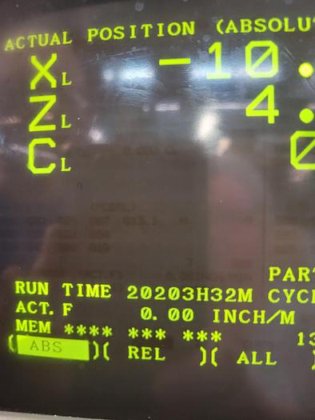

Left Spindle Hours 20,203

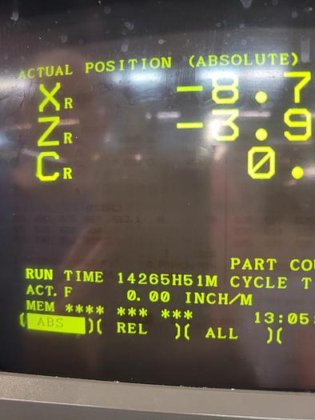

Right Spindle Hours 14,265

Condition:used
Year:1995

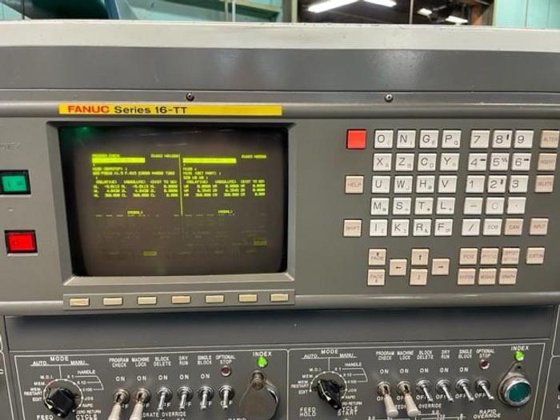

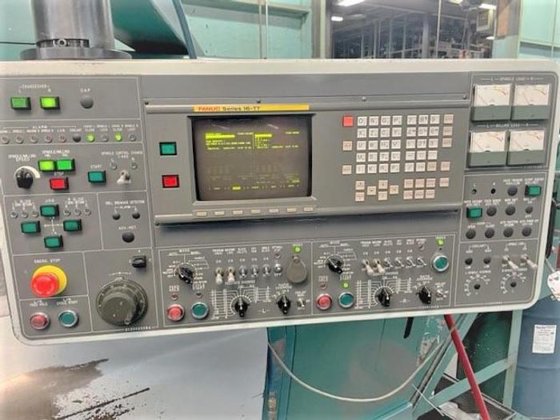

Control:Fanuc 16-TT
Chuck type left / right spindle:Collet Chuck / Collet Chuck
Maximum swing bed left / right:10.63″ / 8.46″
Maximum turning diameter:10.63″
Maximum turning length:7.56″
Distance between spindles:42.52″
Maximum bar capacity left side / right side:2.0″ / 2.0″
X-axis travel (both sides):7.68″
Z-axis travel (left / right):10.43″ / 30.71″
C axis spindle rotation – both:.001 Degree
Spindle nose / spindle bore left / right:A2-6″ / 2.56″ / 2.56″
Spindle speed left / right:5,000 RPM / 5,000 RPM
Spindle motor – both 30 minutes/continuous:20 HP / 15 HP
Rotary tool speed / rotary motor:3,600 RPM / 5 HP
Number of turret positions – both:12 Station each
Rapid traverse rates x / z:630 IPM / 1181 IPM
Machine dimensions:137″ x 83″ x 85″
Machine weight:17,160 lbs.
