Description

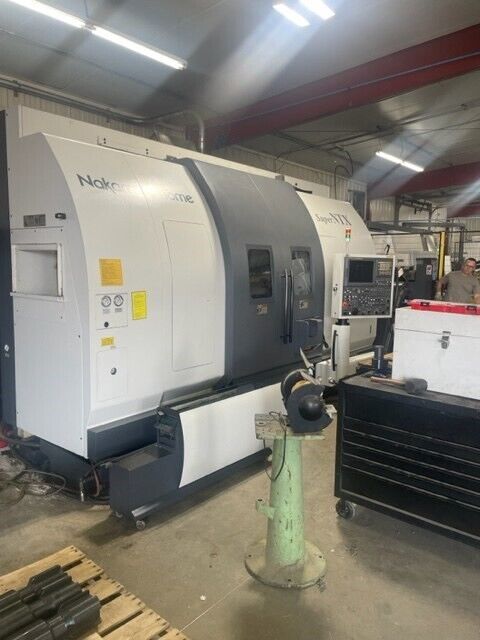

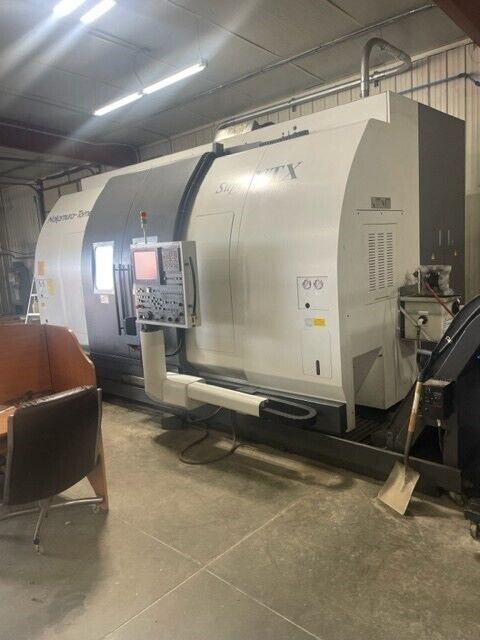

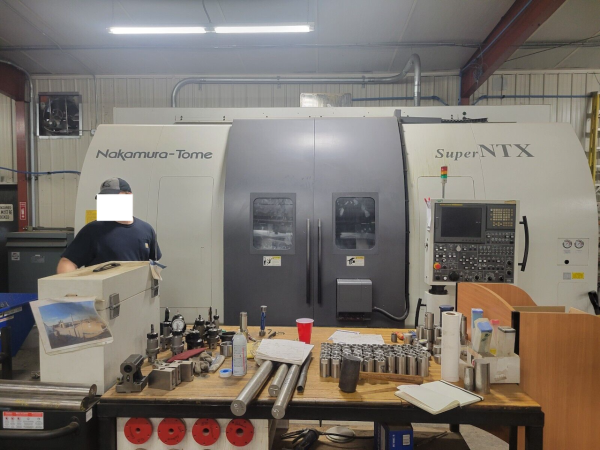

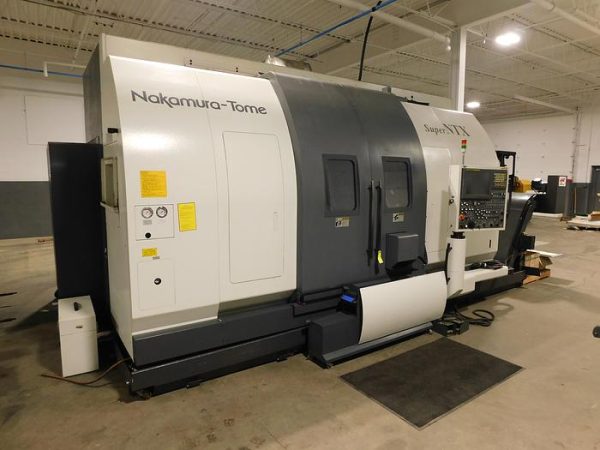

NAKAMURA TOME SUPER NTX – Year 2008
Make: Nakamura Tome

Model: Super NTX CNC Multi Task Twin Spindle with B-Axis and Lower Turrets

Year: 2008

Swing Over Bed: 17″

Turning Diameter: 15.3″ Over Lower TRT

Turning Length: 43.3″

Distance Between Spindles: 55.1″

Chuck Size (1)10″/(2)10″

Spindle Nose (1)A2 – 6/(2)A2 – 6

Spindle Bore Diameter (1)3.14″/(2)3.14″

Bar Capacity (1)2.55″/(2)2.55″

Spindle Speeds (1)4500Rpm/(1)4500 Rpm

Spindle Horsepower (1)30Hp/(1)30Hp

B – Axis Head Indexing: 230 DEGREES

B – Axis Milling Spindle Speed: 12,000Rpm

B – Axis Milling Spindle Taper: Capto C6

B – Axis Milling Spindle Horse Power: 25 Hp

ATC For Milling Spindle: 80 ATC

Tool Diameter: 3.5″, 4.7″

Tool Length: 11.8″

Tool Weight: 17.6 LBS

X – Axis Travel: X1, X2, X3
24.8″, 10.0″, 10.0″

Z – Axis Travel: Z1, Z2, Z3
45.2″, 14.7″, 14.7″

Y – Axis Travel: Y1, Y2, Y3
6.2″

C – Axis Indexing: 1, 2
.001, .001 DEGREE

W – Axis Travel Sub Spindle: 45.2″

Rapid Traverse Rates X1, X2, X3:
630, 630, 630 IPM

Rapid Traverse Rates Z1, Z2, Z3:
1063, 1063, 1063 IPM

Rapid Traverse Rates Y1, Y2, Y3:
630 IPM

Turret Tool Positions 1, 2, 3:
24, 24 POSITION

Machine Weight:
46,200 LBS

Equipped with:
(2) 10″ 3-JAW HYDRAULIC CHUCKS
1280 + 1280 PART PROGRAM STORAGE UPPER + LOWE
3-D RIGID TAP
AUTO ACCELERATION / DECELERATION
AUTO PARTS CATCHER
BALANCE CUTTING
CHIP CONVEYOR
CUSTOM MACRO B

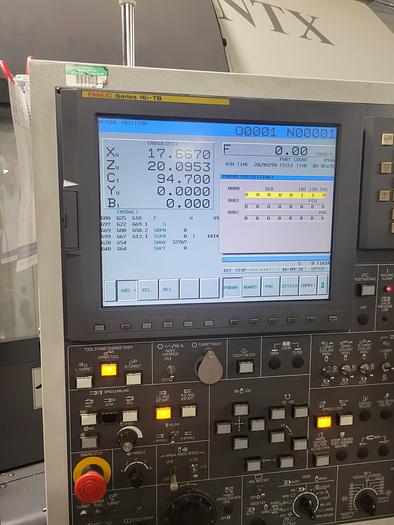

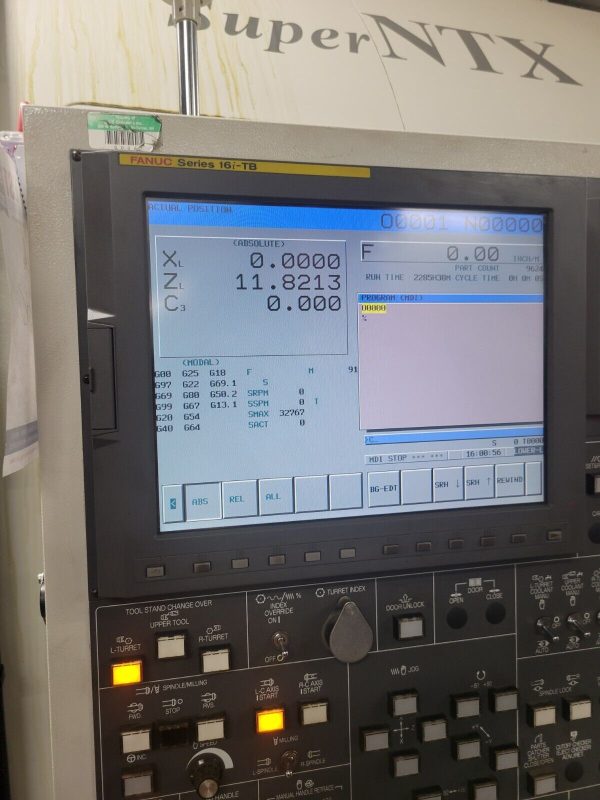

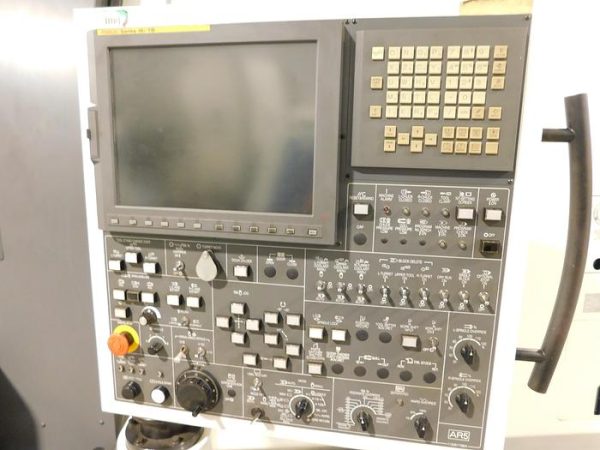

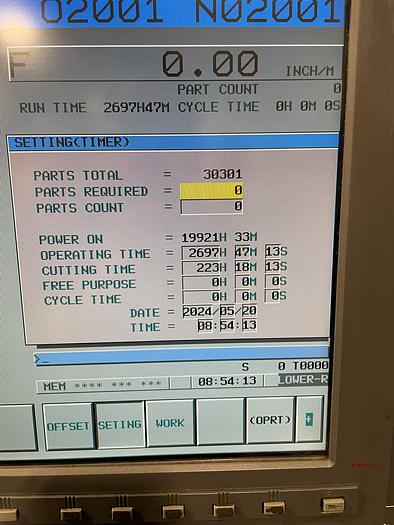

FANUC 16IT CNC CONTROL
HIGH PRESSURE COOLANT SYSTEM
NT NURSE
NT WORK NAVIGATOR
PARTS CONVEYOR
POLYGON TURNING FUNCTION
THREAD CUTTING
THREAD CUTTING RETRACT
