Description

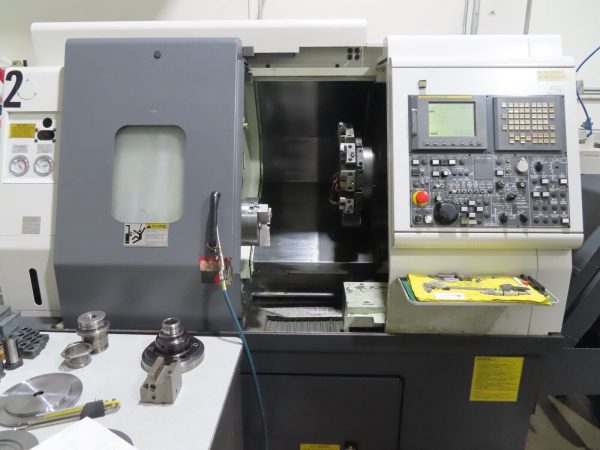

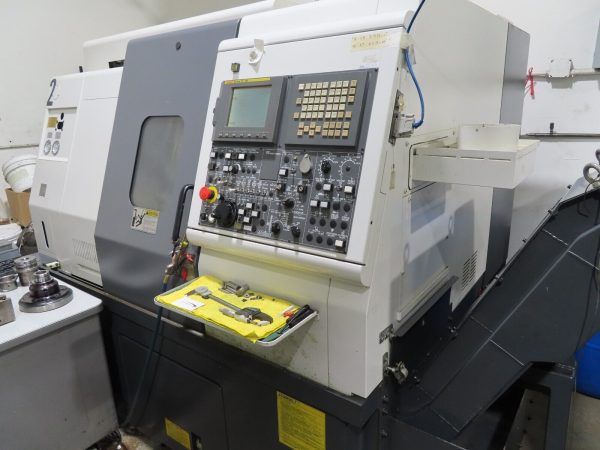

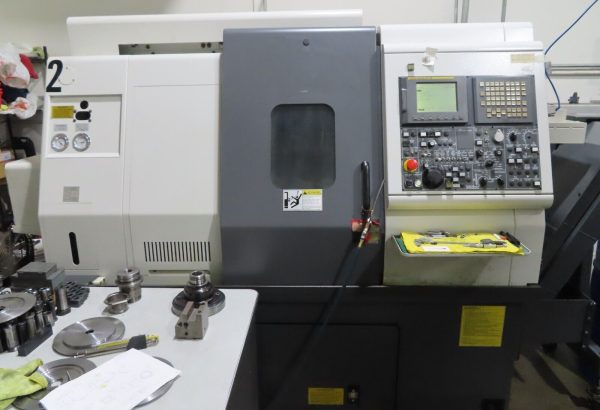

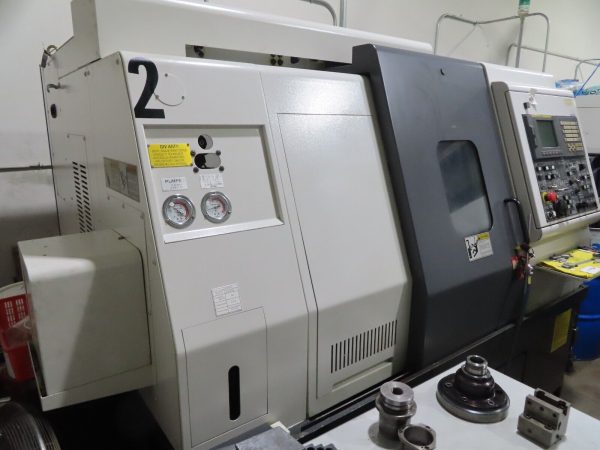

NAKAMURA TOME SC-200 – Year 2010
CNC Lathe
Machine SPECIFICATIONS:
CHUCK SIZE 8″
MAX TURNING DIAMETER 17″
MAX TURNING LENGTH 14.6”
SPINDLE NOSE A2-6
BAR CAPACITY 2.55” (65mm)
X AXIS TRAVEL 10″
Z AXIS TRAVEL 14.4″
RAPID TRAVERSE RATES X/Z 945 / 1418 IPM
SPINDLE SPEEDS 4500 RPM

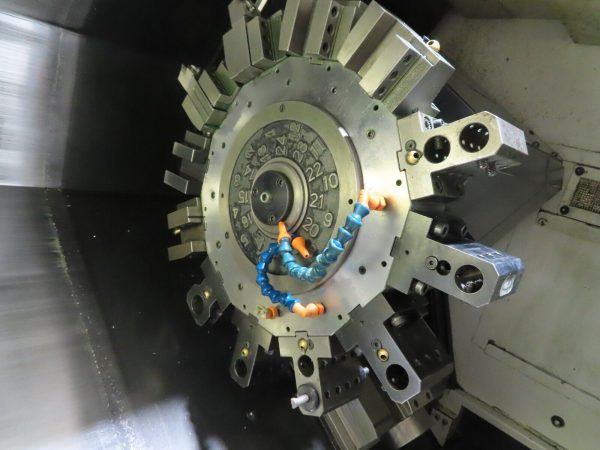

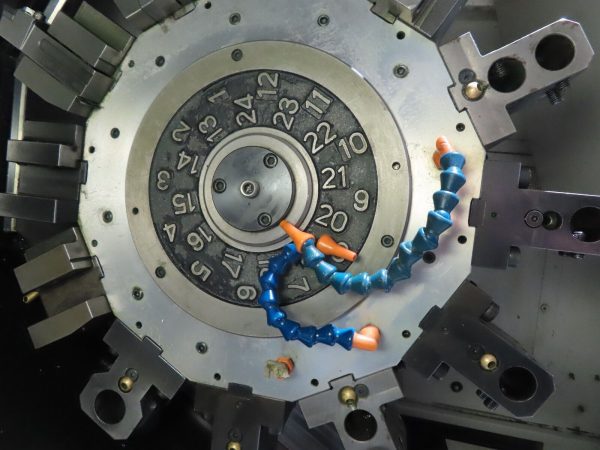

TURRET TOOL STATIONS 12
TURRET POSITIONS 24
MAIN MOTOR DRIVE 15 HP
WEIGHT 6,000 lbs.
DIMENSIONS 92” x 73” (not with conveyor)
POWER 220V / 3 Phase / 60HZ
EQUIPPED WITH:

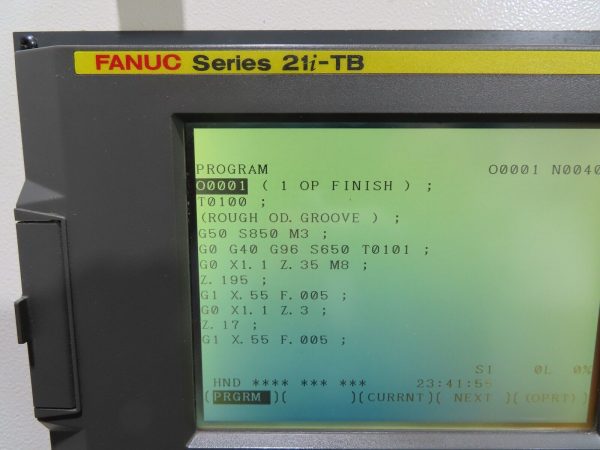

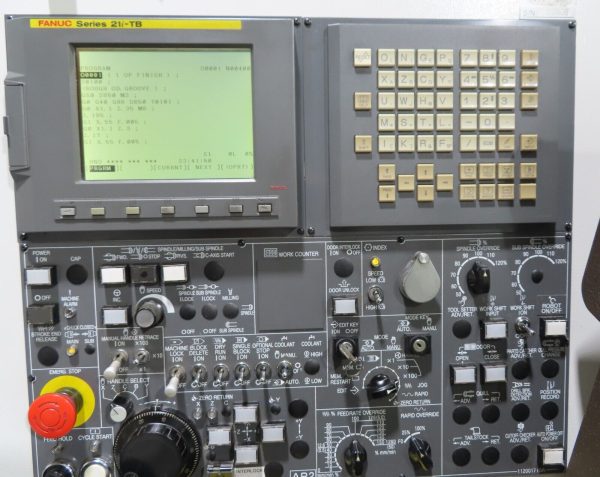

· FANUC 21i-TB CONTROL

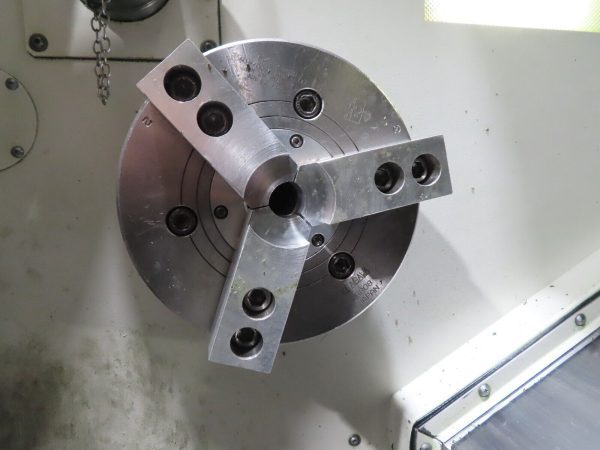

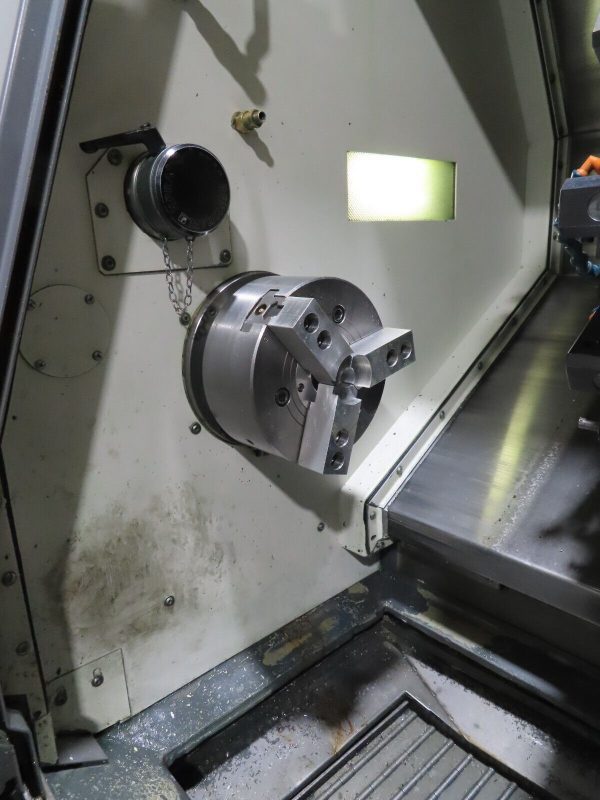

· 8″ 3 JAW CHUCK (KITAGAWA BB08)

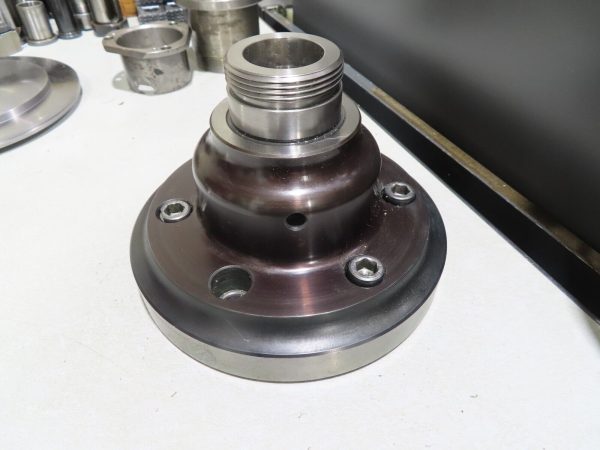

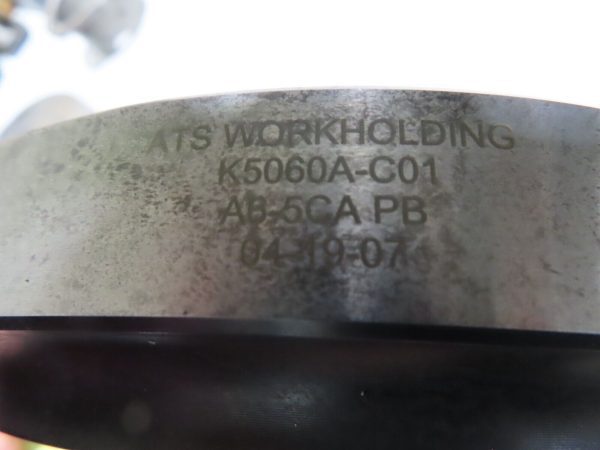

· ATS 5C COLLET CHUCK (A6-5CAPB)
· BOX WAYS

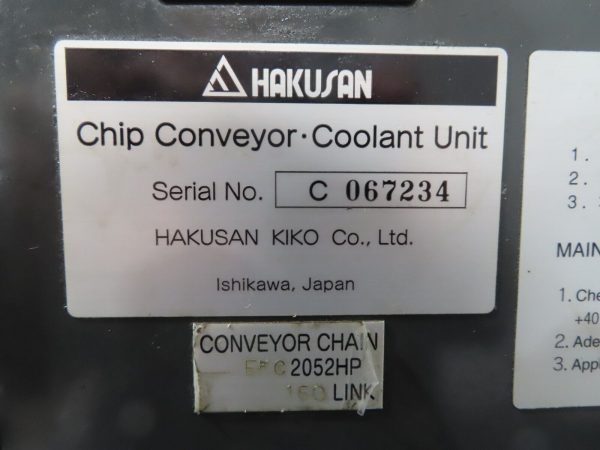

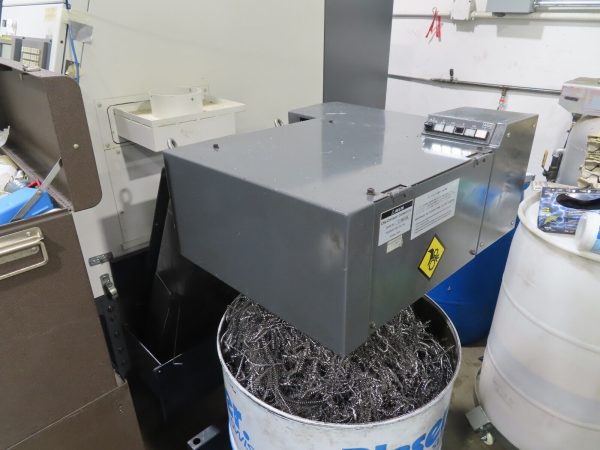

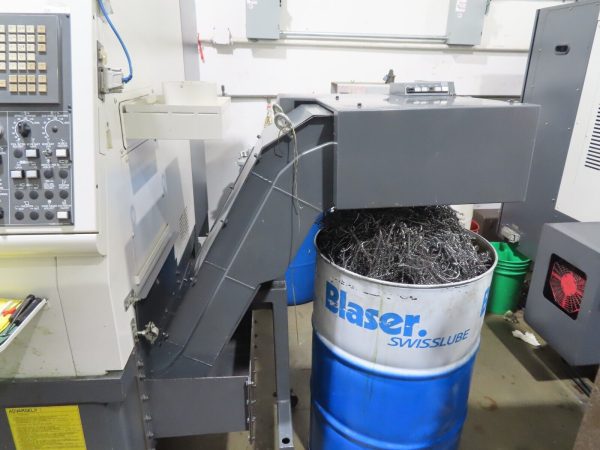

· CHIP CONVEYOR (HAKUSASN SN:C067234)
· TOOL SETTER RENISHAW (DETACHABLE)
