Description

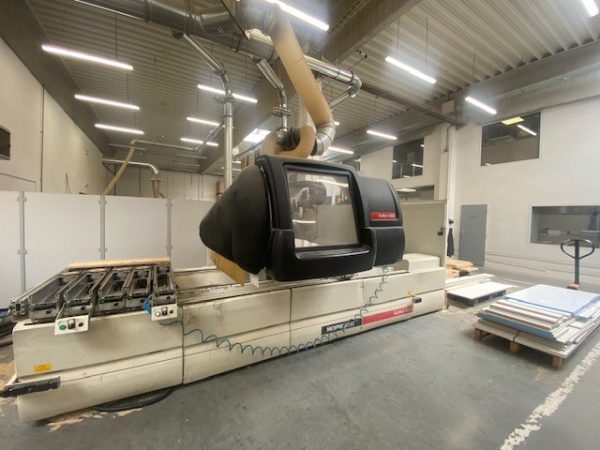

Morbidelli Author 430 S – Year 2005
CNC Wood Machining Center 3 Axis
| X stroke | 3050 mm |
| Y stroke | 1360 mm |
| Z stroke | 180 mm |
| Axis nbr | 3 |
| Tool changer positions | 6 |
| Vacuum pump | 100 m³/h |
| CNC type | Xilog |
| Morbidelli Author 430 S | |
| Length x width x height | 4100.0 × 2600.0 × 2450.0 |
| Weight | 3650 kg |
– Work surface 3050 x 1360 mm
– Machining height 180 mm
– Electrospindle 10 HP ISO 30 rapid 8

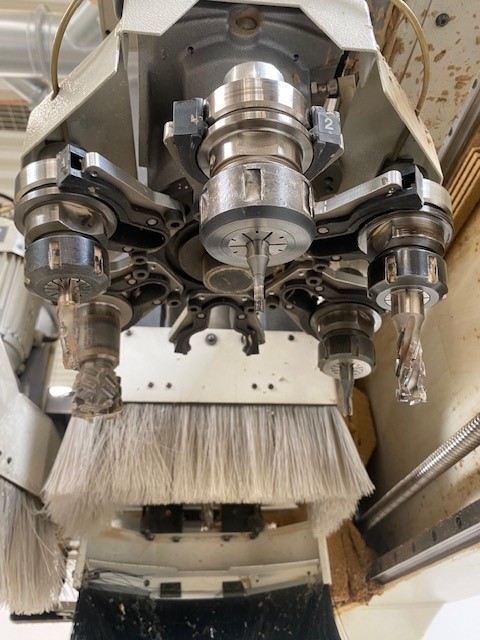

– 6 position tool tray
– saw diameter 150 mm 0-90 °

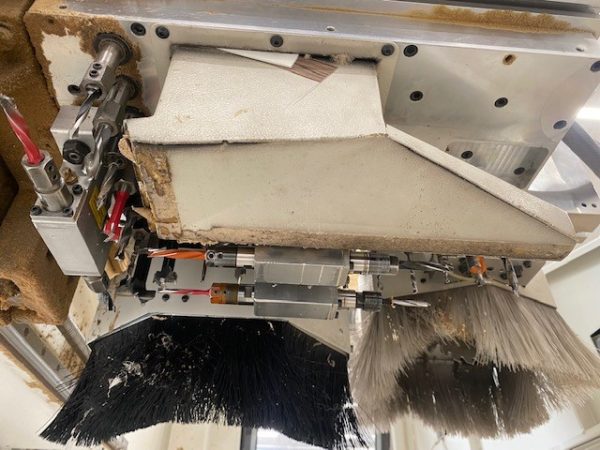

– 18 independent vertical spindles
– 4 opposite horizontal spindles in Y
– 2 opposing horizontal spindles in X
– 6 working beams with 18 suction cups
– Xilog management

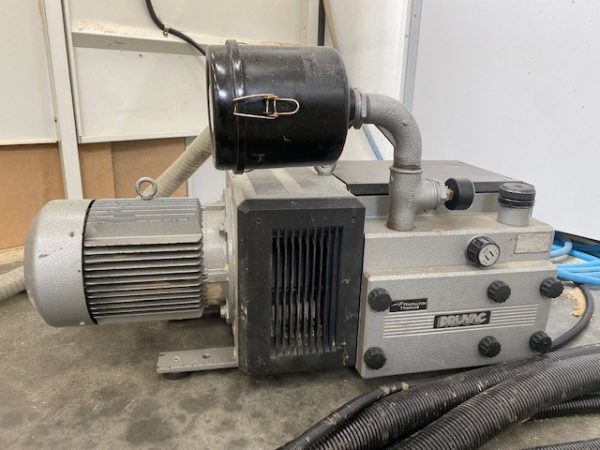

– 100 mc/h vacuum pump
– Safety system with bumpers
– CE standards
– fully functional 7
-regular service
