Description

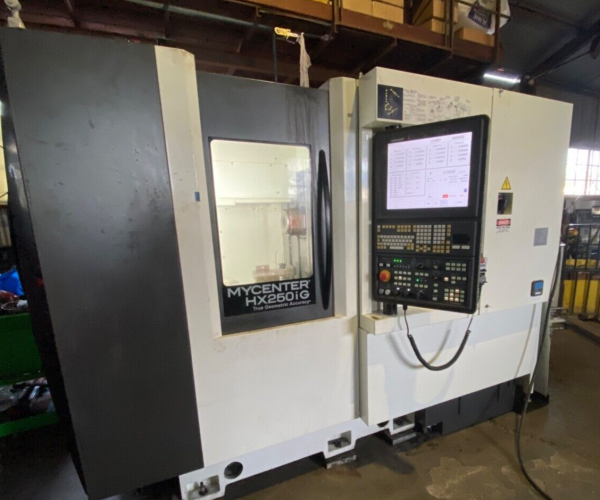

Kitamura HX250iG – Year 2017
CNC Horizontal Machining Center

2017 Kitamura HX250iG

SPECIFICATIONS:
X-AXIS TRAVEL ………………….. 12″

Y-AXIS TRAVEL ………………….. 12″

Z-AXIS TRAVEL ………………….. 13″

SPINDLE POWER ………………….. 15 HP

SPINDLE SPEED ………………….. 15,000 RPM

TOOL POSITIONS ………………… 40

PALLET DIMENSIONS ………………. 10″ X 10″

NUMBER OF PROGRAMMABLE AXES ……… 4

MAXIMUM WORKPIECE DIAMETER ………. 13.8″

MAXIMUM WORKPIECE HEIGHT ………… 15.8″

RAPID FEED RATES X,Y,Z ………….. 2,362 IPM

CUTTING FEED RATE X,Y,Z …………. 2362 IPM

RAPID FEED (B-AXIS) …………….. 33.3 RPM

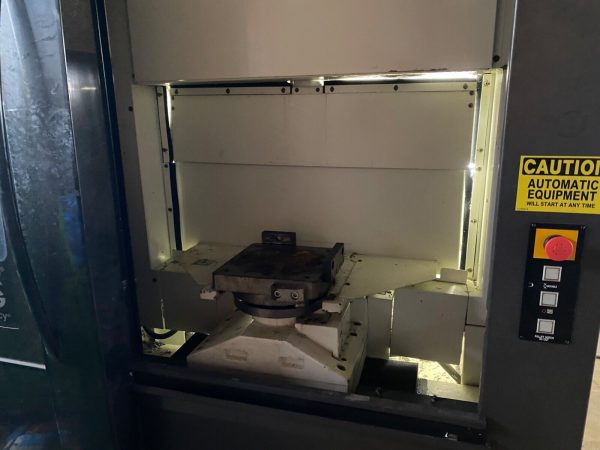

NUMBER OF PALLETS ………………. 2

APC CHANGE TIME ………………… 8 SECONDSREQUIRED FLOOR SPACE ………. 111.5″ X 116.1″ X 89.9″ H

APPROXOMATE MACHINE WEIGHT ………. 12,000 LBS
