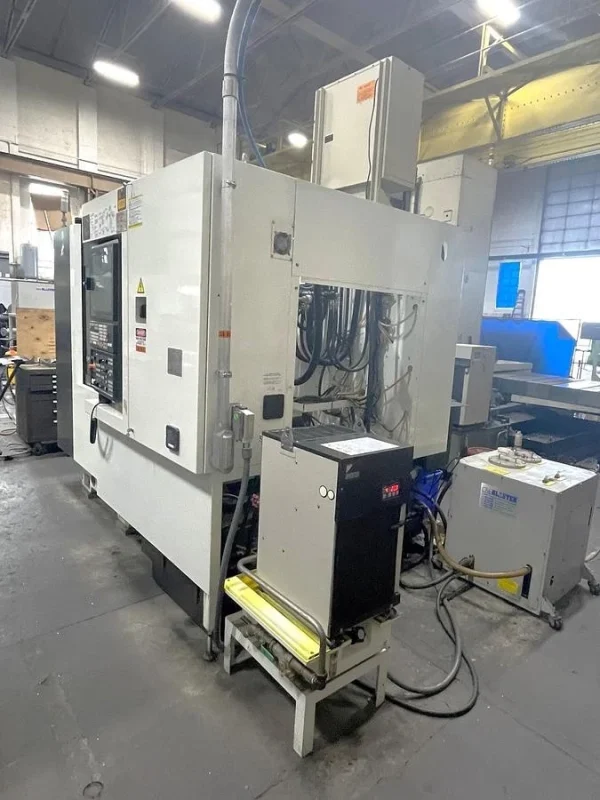

Kitamura HX-250iG CNC Horizontal Machining Center with 4th Axis Rotary Table – Year 2017

Manufacturer Kitamura
Model HX-250iG
Year 2017
Condition Used

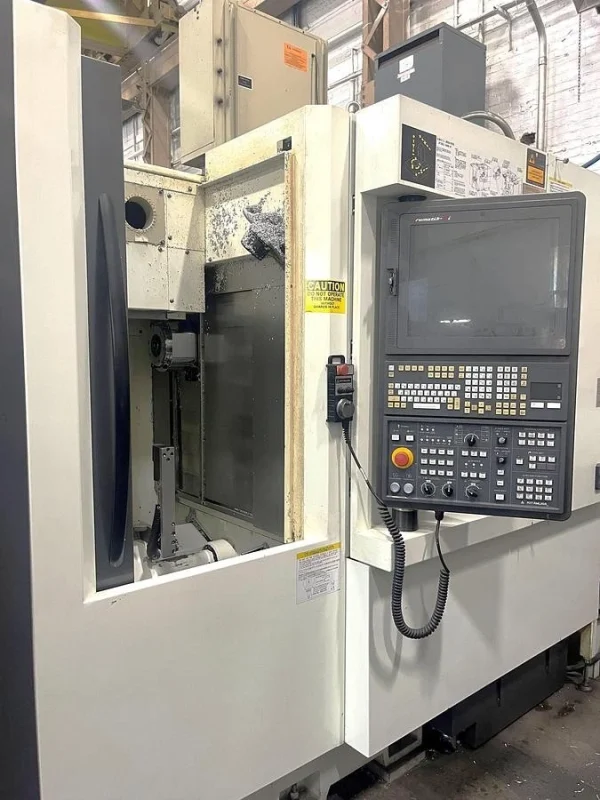

Machine Control Kitamura Akrumatik-ML Control
Pallet Size / Number of Pallets 10″ x 10″ / 2 Pallets
Maximum Workpiece Diameter / Height 13.8″ / 15.8″
Table Indexing .001 Degree Full 4th Axis Rotary Table
X-axis travel 12″
Y-Axis Travel 12″
Z-Axis Travel 13″
Spindle Speed 40 – 30,000 RPM
Spindle Taper HSK #40
Spindle Motor 15 HP
Tool Magazine Capacity 40 Position ATC
Tool Change Time Tool to Tool 1.3 seconds
Tool Change Time Chip to Chip 2.5 seconds
Rapid traverse rates 2362 IPM
Machine Dimensions LxWxH 111.5″ X 116.1″ X 89.9″ H
Machine Weight 12,020 lbs

2 Pallet Changer System

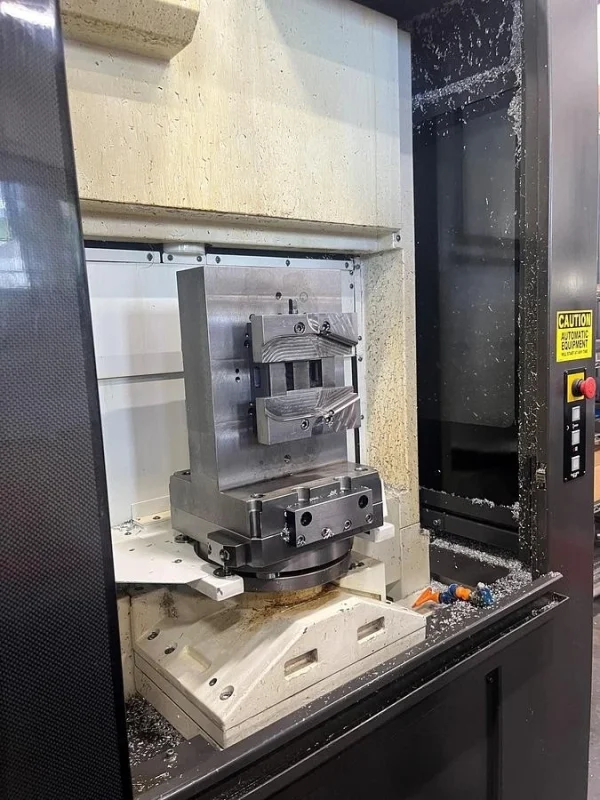

4th Axis Rotary Table

Chip Blaster High Pressure Coolant Through the Spindle

Renishaw OMP40-2 Part Probing System

Chip Conveyor

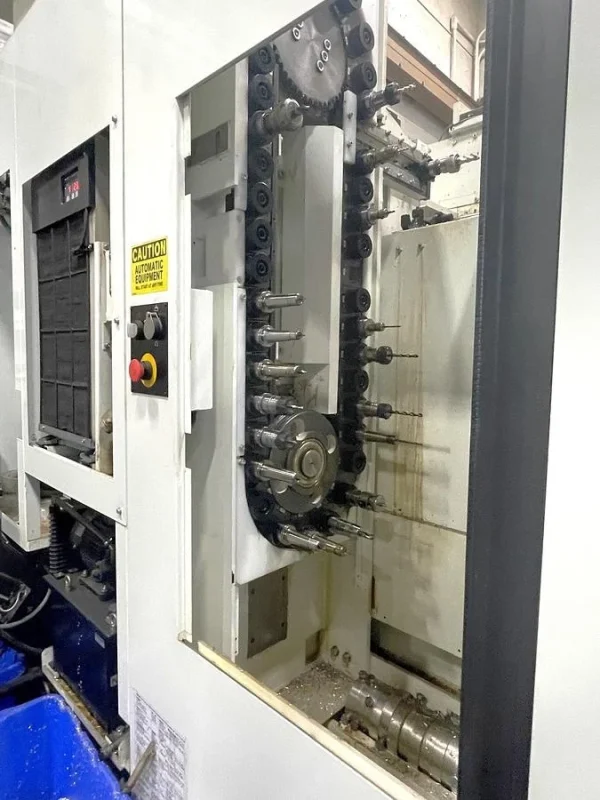

40 Position Tool Changer

30,000 RPM Spindle

HSK E40 Spindle Taper

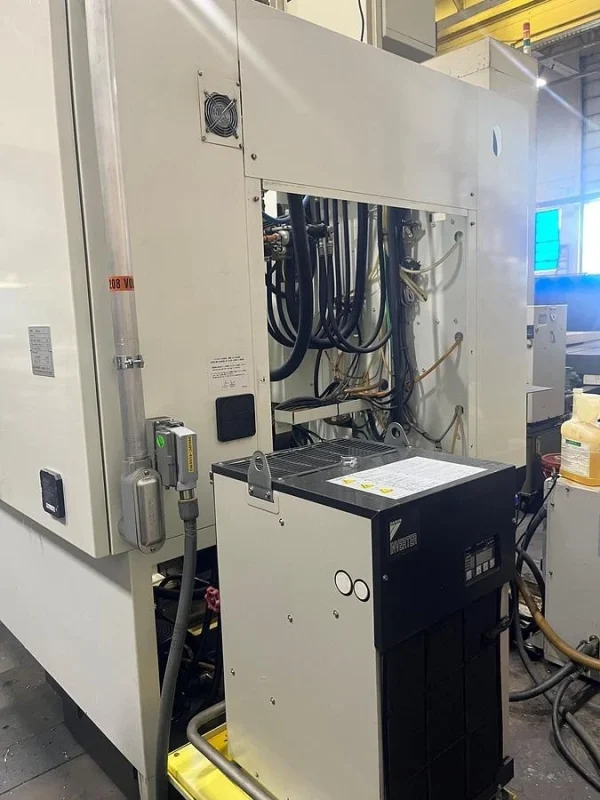

Dual Daikin Inverter Chiller

Rigid Tapping

Tool Life Monitoring

Flood Coolant System

Helical Interpolation

USB Port Interface

RS-232C Interface

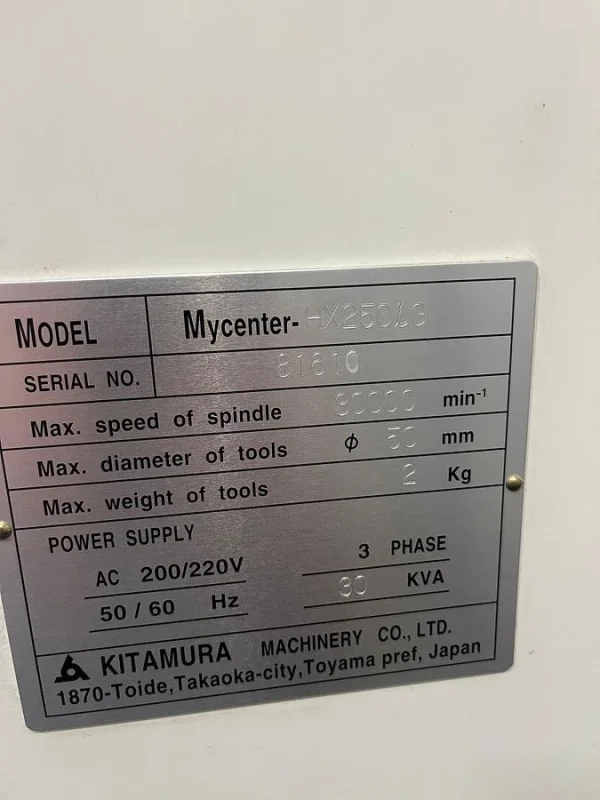

Machine is wired 200/220V 3 Phase

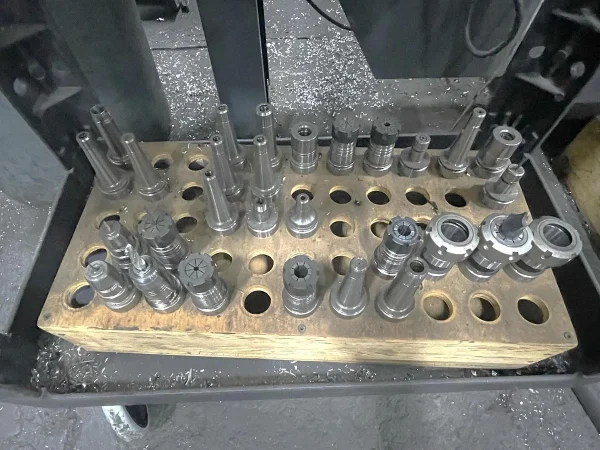

HSK E40 Tooling Package
