Description

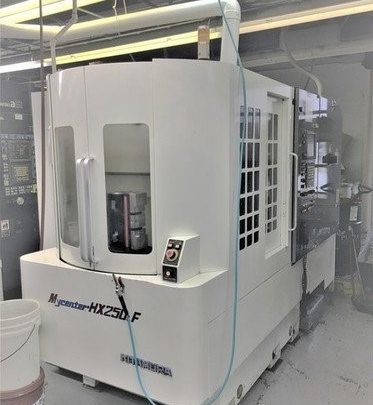

KITAMURA HX-250IF – Year 2006
| X | 304.8 mm |
| Y | 304.8 mm |
| Z | 330.2 mm |
| Power | 7.5 kW |
| RPM | 15,000 RPM |
| # ATC | 40 |
| Pallet-W | 254 mm |
| Pallet-L | 254 mm |
| Taper | BT 30 |
| # Axis | 4 |
| Dimensions | 108 X 80 X 85″ |
| Weight | 10500 LBS |
| Control | CNC (FANUC 18iMB) |
KITAMURA HX-250IF – Year 2006
EQUIPPED WITH
2 Pallet Factory Changer Full 4th Axis Rotary Table
40 Station Tool Changer
Coolant Through the Spindle (not being used)

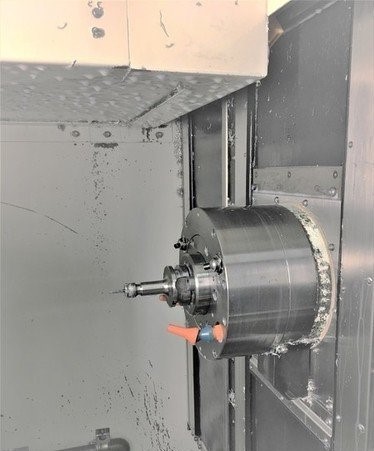

15,000 RPM Spindle
Chip Conveyor RS 232 Port Interface
All Available Manuals
15,285 Cutting Hours
*Used 5-8 hrs daily running aluminumVery clean and well cared for machine being used exclusively on aluminum about 5-8 hrs daily.
