Description
Kitamura Bridge 6G – Year 2016
| Axis X | 1530 mm |
|---|---|
| Axis Y | 1095 mm |
| Axis Z | 710 mm |
| Rotary table (4th axis) | no |
| Type of CNC | Arumatic Mi |
| Table length | 1800 mm |
| Table width | 900 mm |
| Max. part weight | 3000 kg |
| Number of tool pockets | 40 |
| Spindle taper | HSK-A100 |
| Max. spindle speed | 12000 rpm |
| Kitamura Bridge 6G | |
| Weight | 16000 kg |

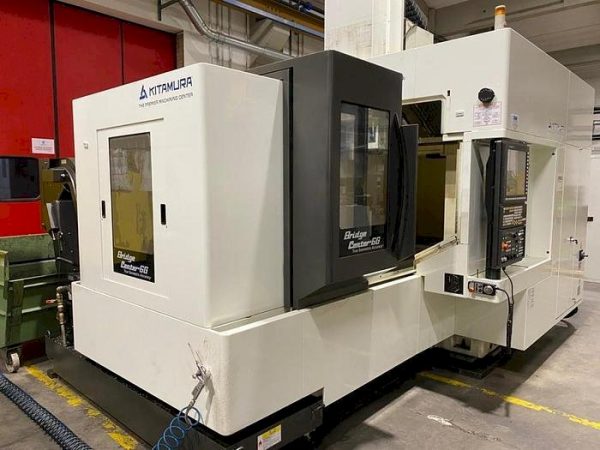

Kitamura Bridge 6G Vertical Machining Center was manufactured in Japan in 2016.

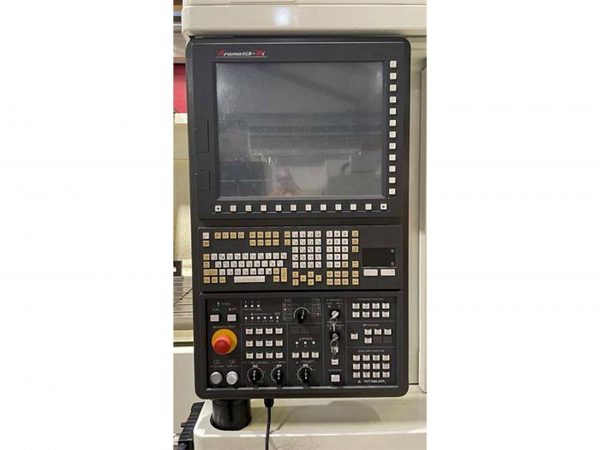

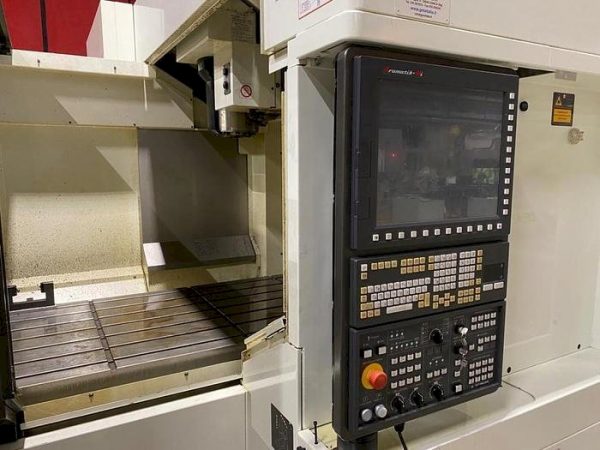

This machine is operated through a Arumatic Mi control unit.
This machine can work with a spindle speed range up to 12000 rpm, counts with a table size of 1800 x 900 mm and a table load of 3000 kg.
Manufacturer: Kitamura
Model: Bridge 6G
Year of manufacture: 2016
Technical Information
Control unit: Arumatic Mi
Machine weight: 16000 kg
Spindle speed range: 12000 rpm
X-axis movement: 1530 mm
Y-axis movement: 1095 mm
Z-axis movement: 710 mm
X-axis rapid traverse: 24 m/min
Y-axis rapid traverse: 24 m/min
Z-axis rapid traverse: 24 m/min

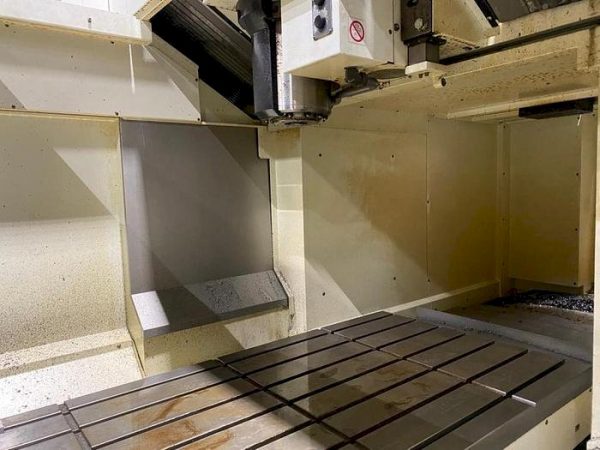

Table area: 1800 x 900 mm
Distance: 152 – 862 mm
Table payload: 3000 kg
Spindle connection: HSK-A100
Tools magazine: 40 positions
Chip conveyor
Refrigeration A.P. through spindle
Remote jog handle
Renishaw probe
Blum probe
Optical scales
Type: double column machining center
