Description

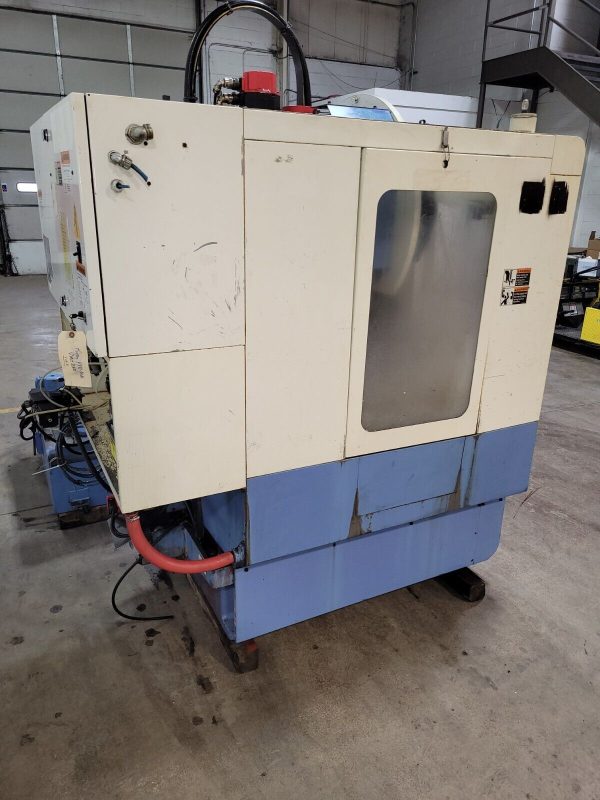

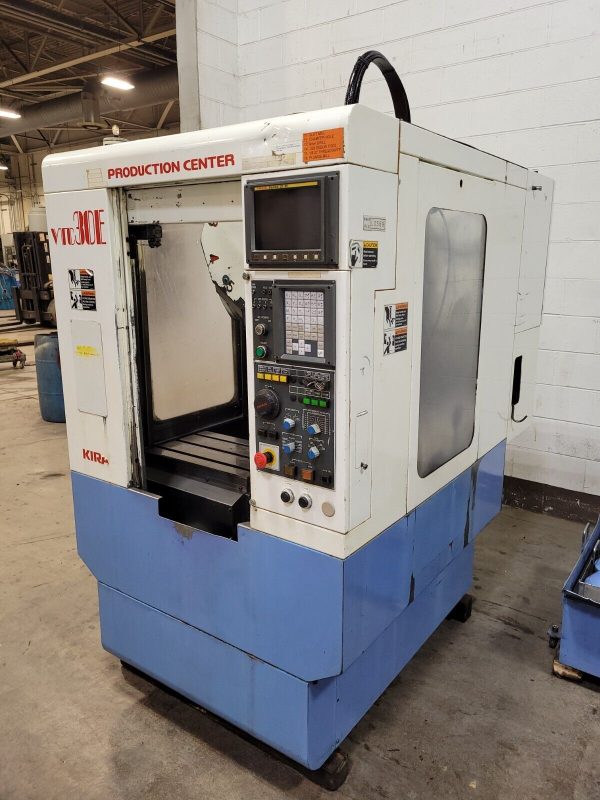

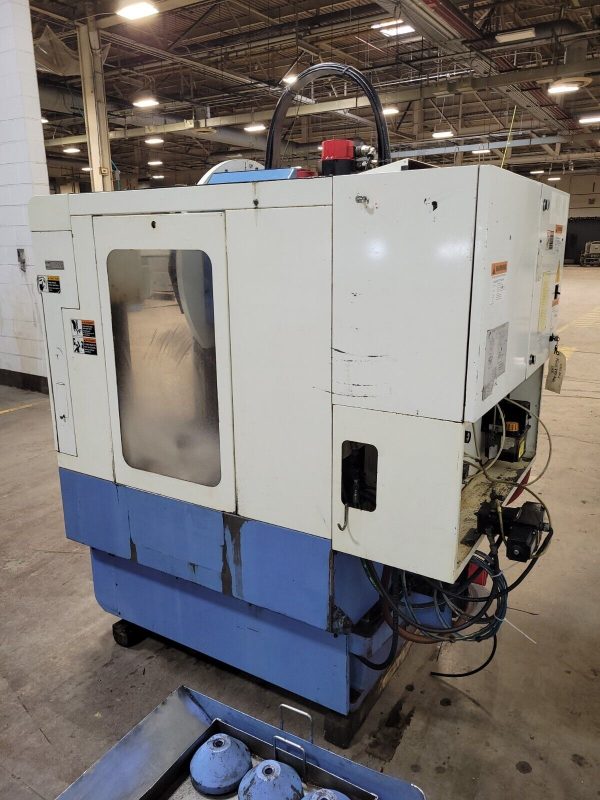

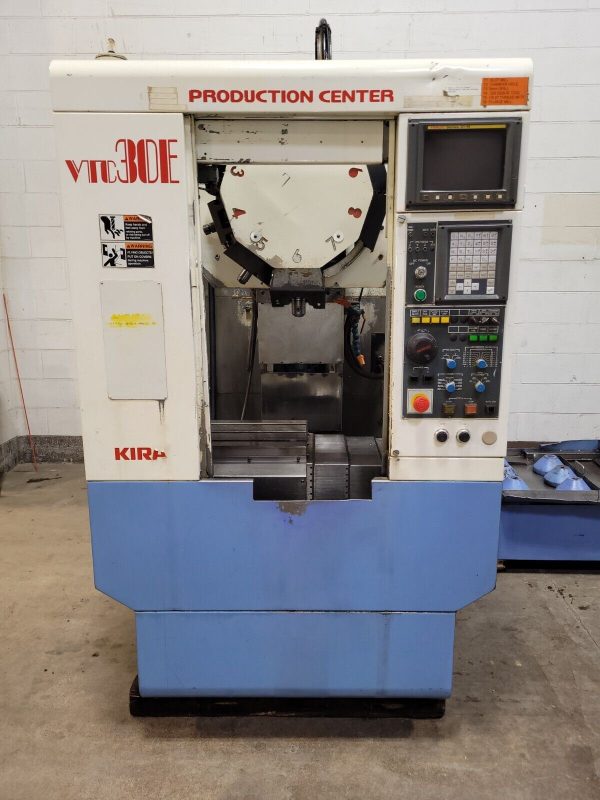

Kira VTC30E CNC Tapping Center – Year 1998
| SPECIFICATIONS: | |
| X-Axis Travel | 300mm / 11.8” |
| Y-Axis Travel | 250mm / 9.84” |
| Z-Axis Travel | 300mm / 11.8” |
| Table Surface | 300mm x 800 mm / 11.8” x 19.6” |
| Max. Distance Spindle to Table | 500mm / 19.6” |
| Min. Distance Spindle to Table | 200mm / 7.87” |
| Max. Weight on Table | 100 Kg / 220 Lbs. |
| Rapid Feeds | 30,000mm/ min / 118”/ min |
| Spindle Speeds | 240 – 8,000 IMP |
| Spindle Drive | 3.7 Kw/ 5 HP 3-phase, 60-cycle, 480 Volt |
| Tool Type | BT30 |
| Turret Positions | 10 |
| Approx. Size | 48” x 72” x 90” HT |
Equipped With:

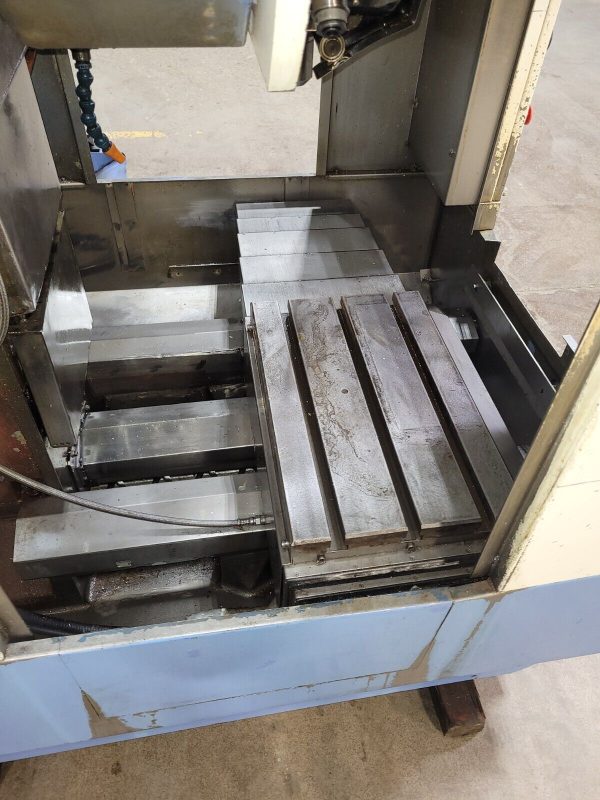

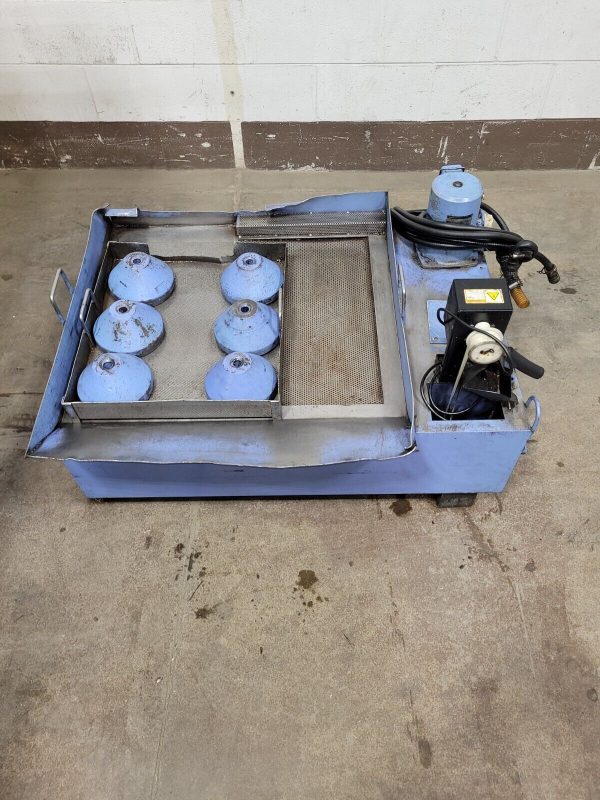

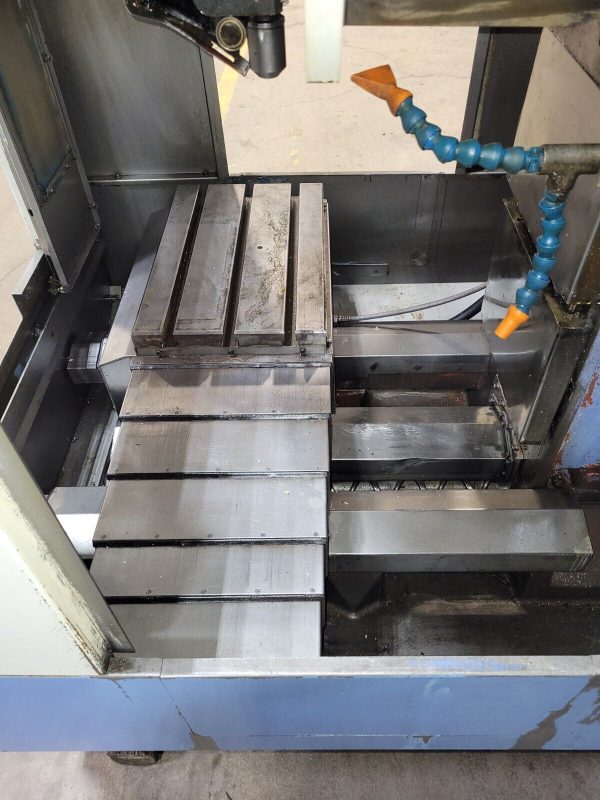

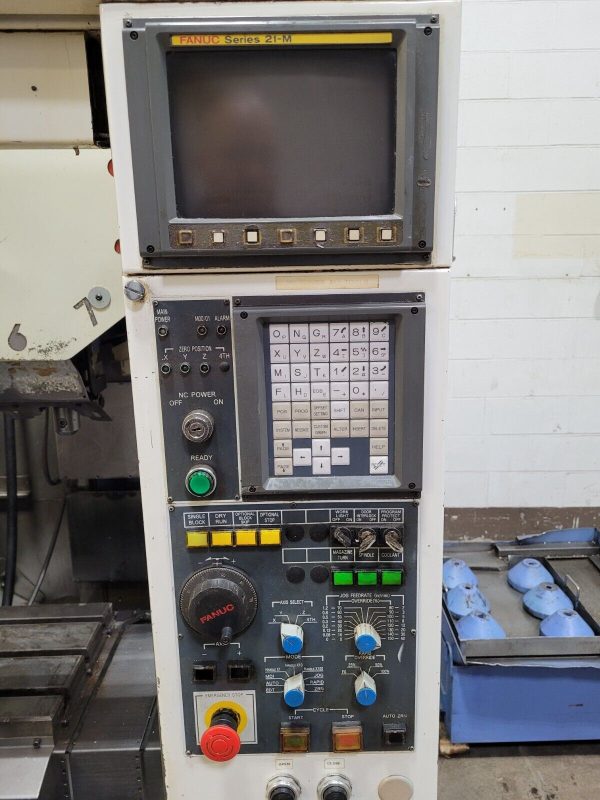

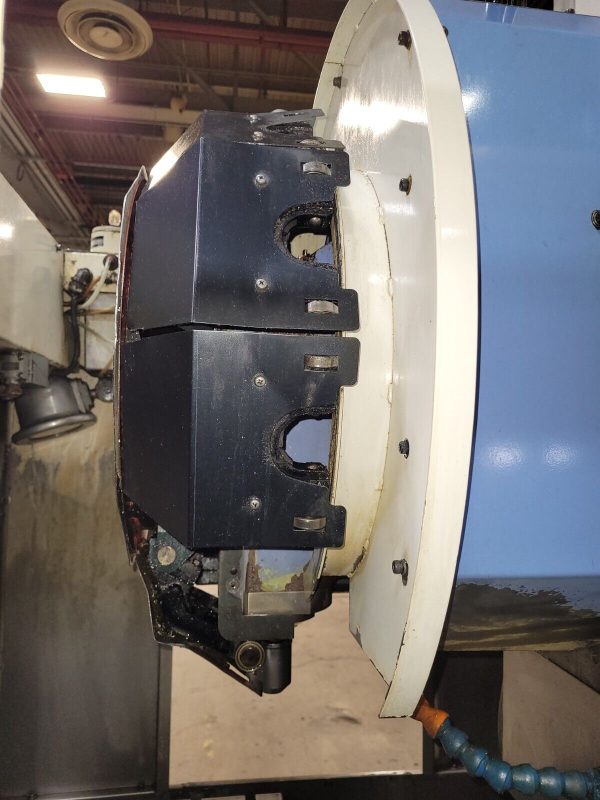

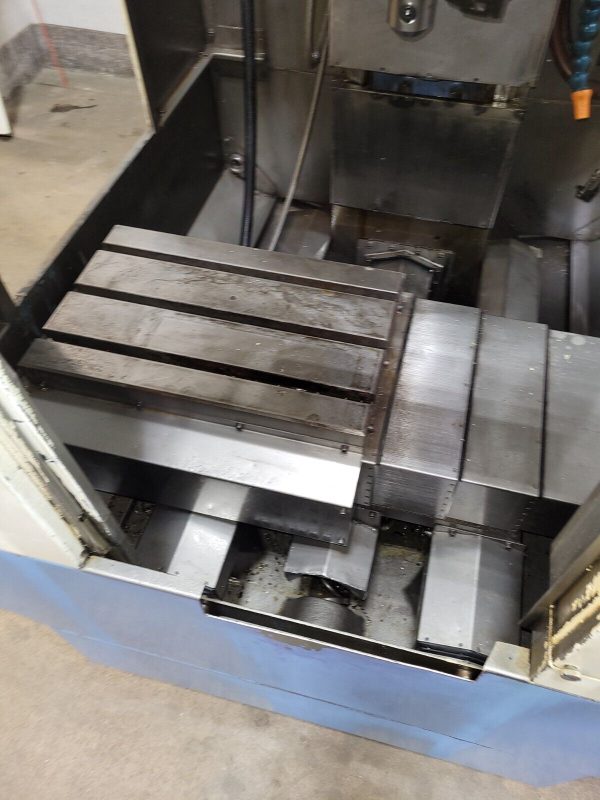

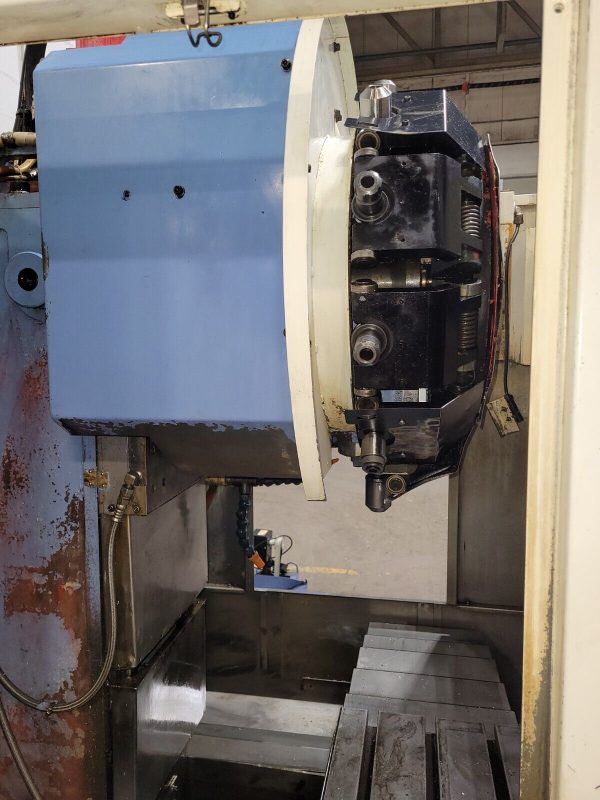

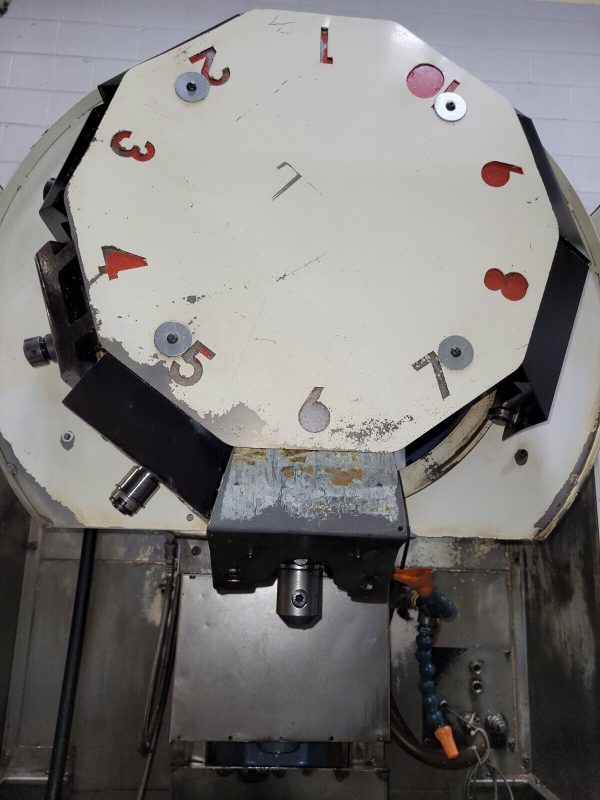

Fanuc 21M CNC Controls with Keyboard, CRT, MPG. 10-Position Turret. 12” x 20” T-Slotted Worktable, Work Light. Coolant Pump and Tank with Skimmer. (4) Tool Holders. Pneumatic Vise. Leveling Pads.
Notes:
The Kira is a good runner and can be inspected under power on our floor.
