Description
KIRA KPC 30A – Year 2008
| Axis X | 700 mm |
| Axis Y | 400 mm |
| Axis Z | 300 mm |
| Rotary table (4th axis) | no |
| Type of CNC | Fanuc 21i-mb |
| Table length | 800 mm |
| Table width | 400 mm |
| Max. part weight | 3500 kg |
| Number of tool pockets | 14 |
| Spindle taper | BT 30 |
| Max. spindle speed | 8000 rpm |
| Made in Japan | |
| Length x width x height | 2010.0 × 1830.0 × 2740.0 |
| Weight | 3500 kg |

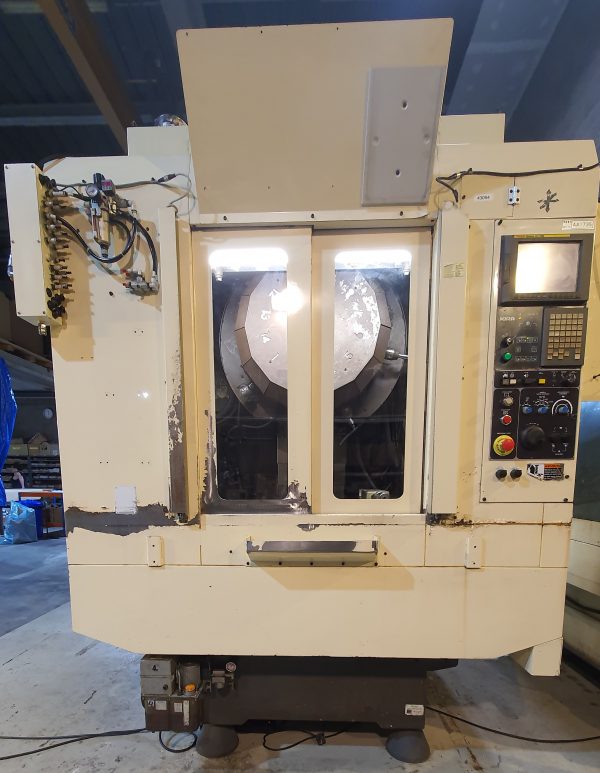

Machining center KIRA KPC 30A
Manufacturing date: 10/2008
Controller: Fanuc 21i-mb
Routes X-700 y-400 Z-300
Spindle: 8000 Rpm Cone Bt-30
Charger 14 Tools
Chip Extractor with Double coolant pump.
Hydraulic unit. Prepared to work with automatic mooring.

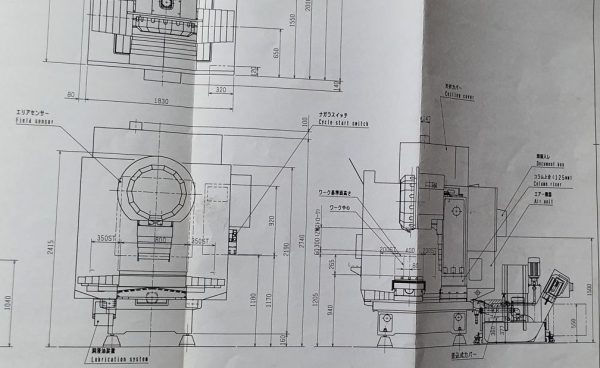

Documentation: Manual documentation and original diagrams in English.

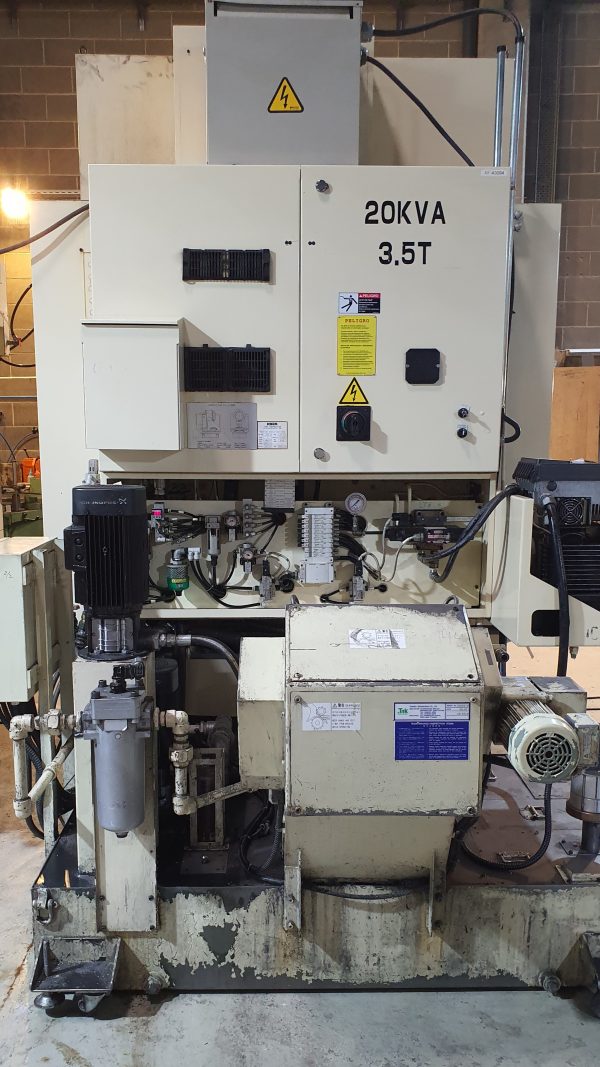

Power Supply 17KV 400v (includes transformer 400-200)
