Description
Condition:used
Travel on x axis (table, longitudial):500mm
Travel on y axis (table, cross):380mm
Travel on z axis (spindle, vertical):300mm
Table size:650mm x 380mm
Spindle speeds:50 – 15000rpm
Spindle taper:BT30
Rapid feed rate (xyz):56000 mm/min
Main spindle motor:5 hp
Power supply:415 volts / 50 hz / 3 phase
Freighting details (l x d x h):2300mmx2100mmx2500m plus 1400mmx1700mmx800mm
Weight (approx):2800 kg
made in Japan

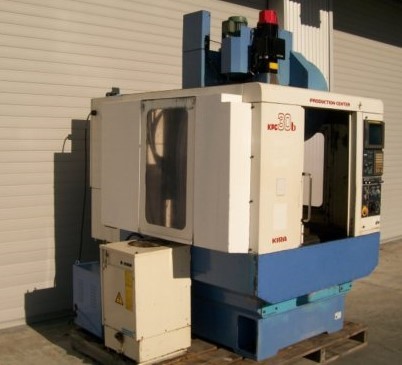

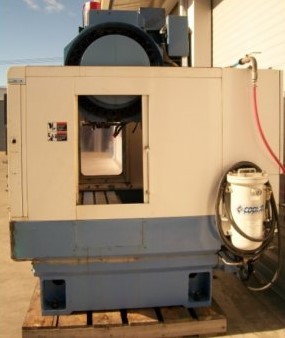

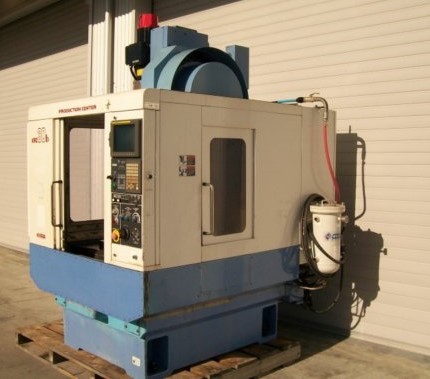

CNC vertical machining centre. 15000rpm spindle, through spindle coolant system (missing pump).
Note: Doesn’t come with tooling.
Comes with GSA CNC-151RB 4th axis
Quality Japanese
Fanuc series 21i-M control
High speed arm type 20 tool ATC
BT30 spindle taper
High speed spindle (15000rpm)
Through spindle coolant (missing pump)
RS 232 interface
4th axis GSA CNC-151RB
External chip conveyor
Side washing chip removal
High speed synchronous tapping capability
Absolute position detector
High speed positioning
Auto lubrication system
Compact size
Owners manual
