Description
KGD KHG-2000CNC – Year 2013
| Max. boring Ø | 32 mm |
|---|---|
| Workpiece length | 2500 mm |
| Workpiece weight | 10000 kg |
| Spindle speed | 5000 rpm |
| Engine power | 40 kW |
Drilling Dia : Dia.@3-@32
Max. drilling depth : 1500mm
model : KHG-2000CNC
Brand : KGD, S. KOREA
Loading Capacity : 10 Ton
Manu date : 2013.08
Table size : 1520×2500

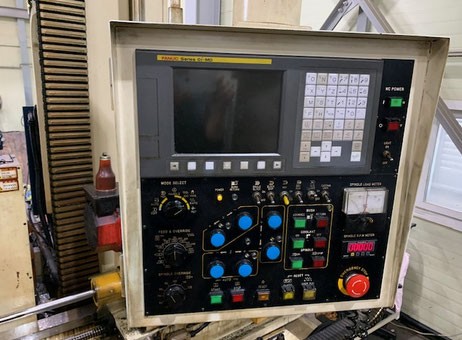

FANUC Oi-MD system

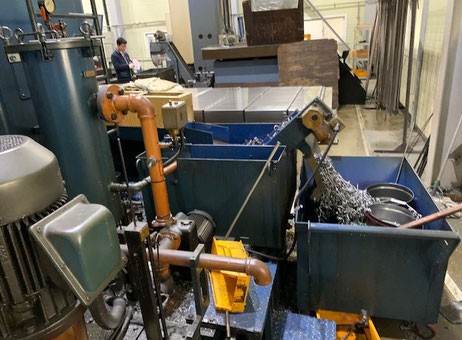

Knoll(Germany) Screw pump for Coolant pump
Rexroth(Germany) Ball Screw
AS-IS condition
Box Guide way type (Slide type with turcite)
Made of Meehanite casting (Bed, Table, Column, Tank, Z axis, Chip box, Spindle box)
