Description
HAAS HS-1RP HE – Year 2002
| Axis X | 610 mm |
|---|---|
| Axis Y | 508 mm |
| Axis Z | 559 mm |
| Rotary table (4th axis) | no |
| Table length | 406 mm |
| Table width | 406 mm |
| Max. part weight | 270 kg |
| Max. spindle speed | 7500 rpm |
| Spindle motor power | 22 kW |
| Length x width x height | 3680.0 × 3580.0 × 2820.0 |
| Weight | 7300 kg |

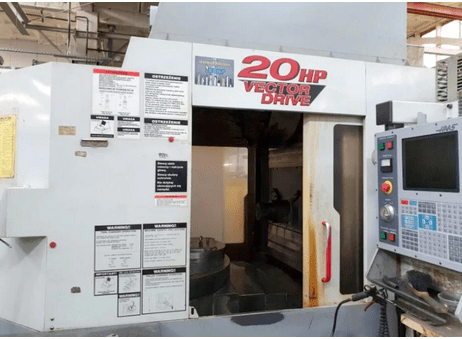

The HAAS HS-1RP HE horizontal milling center was built in 2002 in the United States. The machine works in four axes. Its rotational speed reaches 7500 rpm, and the table load is 270 kg.
Technical parameters of the HAAS HS-1RP HE machining center
– table dimensions (length x width): 406 x 406 mm
– table load: 270 kg
– X axis: 610 mm
– Y axis: 508 mm
– Z axis: 559 mm
– spindle speed range: 0-7500 1 / min.
– spindle motor power: 22 KW
– main electrical connection: 3 x 400V, 50 / 60HZ
– dimensions of the machine (length x depth x height): 3680 x 3580 x 2820 mm
– weight of the CNC milling machine HAAS HS-1RP HE: 7300 kg
